2.

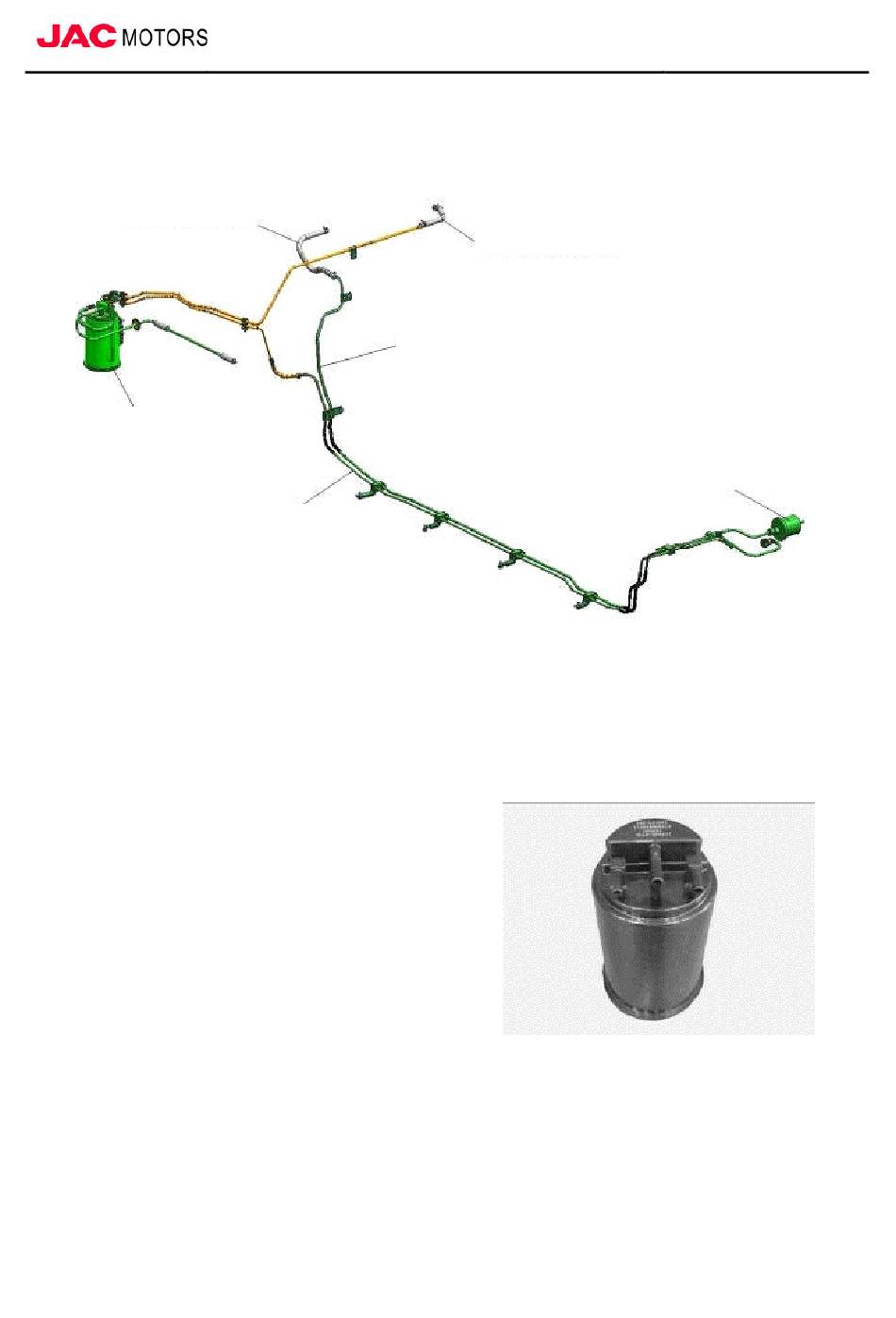

Diagram of Fuel Evaporative Emission Pipeline
1
1-Carbon canister assembly 2-Fuel inlet hose of engine 3-Pipe connecting carbon canister with solenoid valve
4-Hose connecting carbon canister with solenoid valve 5-Fuel inlet pipe of engine 6-Fuel filter
Note:
Do not use soap water or any other detergent
when installing vacuum pipe or cleaning pipeline.
3.
Inspection of parts
1)
EVAP carbon canister
①
Check EVAP carbon canister with following
methods:
a.
Plug port 1, blow at port 3, make sure the air
flows out from port 2 freely.
b.
Plug port 3, blow at port 1, make sure the air
flows out from port 2 freely.
② Dismount the vacuum hose
Loose the clamps between carbon canister and fuel tank and carbon canister solenoid valve with
江淮汽车
部门:客户服务部
2
3
Diagram of fuel evaporative emission pipeline
4
5
Fig. 1.5.001
Mechanical Part of
Engine
6
