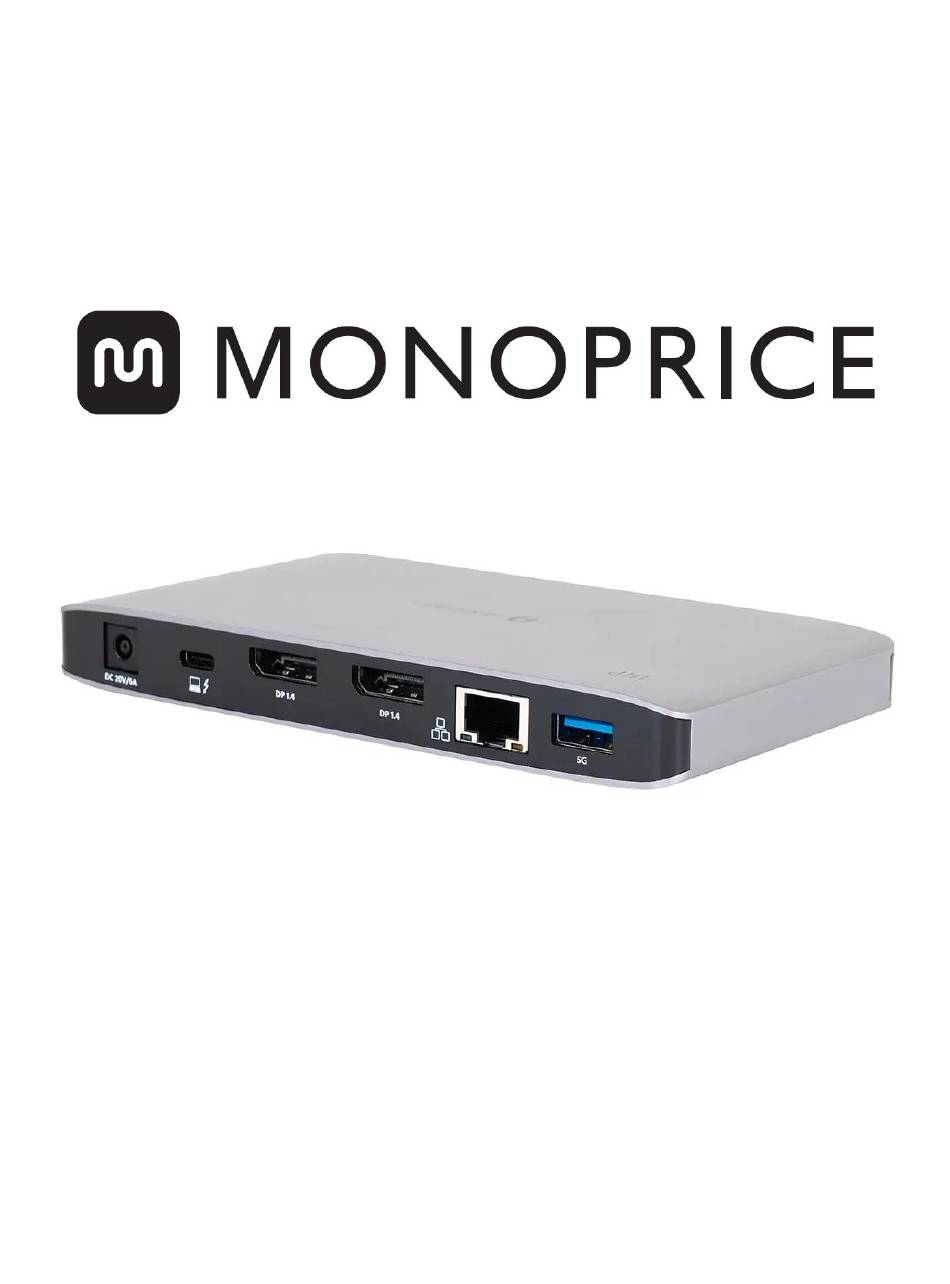

- Page 1 Thunderbolt™ 3 Dual DisplayPort® Docking Station P/N 36656 User's Manual...
-
Page 2: Safety Warnings And Guidelines
SAFETY WARNINGS AND GUIDELINES Please read this entire manual before using this device, paying extra attention to these safety warnings and guidelines. Please keep this manual in a safe place for future reference. • This device is intended for indoor use only. •... - Page 3 INTRODUCTION This Intel®-Certified Monoprice™ Thunderbolt™ 3 Dual DisplayPort® Docking Station adds a host of connectivity options to your Thunderbolt 3 or Multi-Function DisplayPort (MFDP) USB Type-C® compatible computer. It fully complies with the DisplayPort 1.4 standard and supports two 4K@60Hz displays or a single 8K@30Hz display.
-
Page 4: Customer Service
If you have any problem with your order, please give us an opportunity to make it right. You can contact a Monoprice Customer Service representative through the Live Chat link on our website www.monoprice.com or via email at support@monoprice.com. -
Page 5: Package Contents
PACKAGE CONTENTS Please take an inventory of the package contents to ensure you have all the items listed below. If anything is missing or damaged, please contact Monoprice™ Customer Service for a replacement. 1x Thunderbolt™ 3 Docking Station 1x 0.5m Thunderbolt 3 Cable... - Page 6 4. USB Type-A 1: USB 3.2 Gen 2 Type-A port with support for up to 10Gbps data transfer rate and 5VDC/900mA of charging power. 5. USB Type-A 2: USB 3.2 Gen 2 Type-A port with support for up to 10Gbps data transfer rate and 5VDC/1.5A of charging power.
- Page 7 FUNCTIONALITY The functionality, specifications, and specific capabilities of this Docking Station vary, depending on whether it is connected to a macOS® or Windows® computer with a Thunderbolt™ 3 port or if is connected to a computer with a Multi-Function DisplayPort (MFDP) compatible USB Type-C®...
- Page 8 • DisplayPort 1.4: The two DisplayPort® ports (8 and 9) support 2-lane DisplayPort 1.4 operation, with a maximum single-display resolution of 4K@60Hz. They also support Multi-Stream Transport (MST) operation, with support for two monitors with maximum resolutions of 4K@30Hz+4K@30Hz. Thunderbolt 3 or MFDP USB Type-C Computer When using a computer with either a Thunderbolt™...
- Page 9 SAMPLE CONNECTION DIAGRAMS...
-
Page 10: Technical Support
TECHNICAL SUPPORT Monoprice™ is pleased to provide free, live, online technical support to assist you with any questions you may have about installation, setup, troubleshooting, or product recommendations. If you ever need assistance with your new product, please come online to talk to one of our friendly and knowledgeable Tech Support Associates. - Page 11 Thunderbolt™ 3 Host: 40Gbps Input Bandwidth MFDP USB Type-C® Host: 32.6Gbps Power Delivery 60W (5VDC/3A, 9VDC/3A, 15VDC/3A, 20VDC/3A) 1x USB Type-C 10Gbps, USB Data Transfer Rates 2x USB Type-A 10Gbps, 1x USB Type-A 5Gbps 1x USB Type-C: 5 VDC, 1.5A Charging Power 1X USB Type-A: 5 VDC, 1.5A 2x USB Type-A: 5 VDC, 900mA...
-
Page 12: Regulatory Compliance
Modifying the equipment without Monoprice's authorization may result in the equipment no longer complying with FCC requirements for Class B digital devices. In that event, your right to use the equipment may be limited by FCC regulations, and you may be required to correct any interference to radio or television communications at your own expense. - Page 13 This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Monoprice™ and all Monoprice logos are trademarks of Monoprice Inc. Intel®, Thunderbolt™, Thunderbolt™ 3, and the Thunderbolt logo are trademarks of Intel Corporation or its subsidiaries in the U.S.
