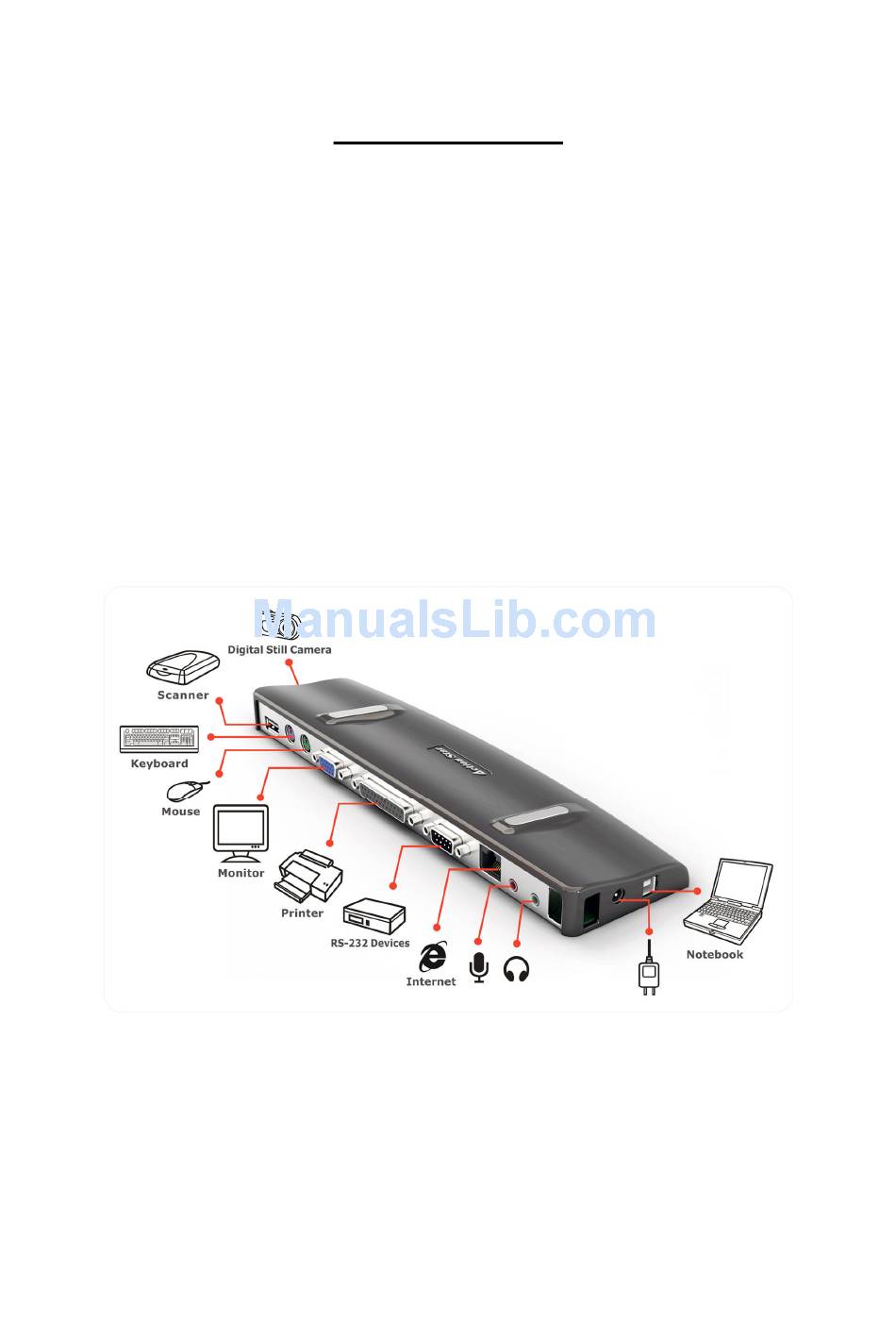

The USB 2.0 Docking Station is a unique expansion unit specially designed to accompany
notebook or desktop computers which have extra connectivity demands. With only one USB
port required from a notebook or PC computer such devices as PIO, SIO, LAN, PS/2
peripheral devices can be accessed and operated freely from the docking station. The
Docking station support Audio, 100Base-T Ethernet, parallel port, serial port, VGA and 2 USB
ports.
The USB 2.0 Docking Station allows you to add multiple high-performance USB 2.0
peripheral devices to your PC. Moreover, this product is fully backwards compatible with the
USB Revision 1.1 products, which means your previous USB 1.1 devices can continue to
function as well.
INTRODUCTION
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Monoprice 5146
Summary of Contents for Monoprice 5146
- Page 1 USB Docking station Installation Guide USB Docking station Installation Guide USB Docking station Installation Guide USB Docking station Installation Guide INTRODUCTION The USB 2.0 Docking Station is a unique expansion unit specially designed to accompany notebook or desktop computers which have extra connectivity demands. With only one USB port required from a notebook or PC computer such devices as PIO, SIO, LAN, PS/2 peripheral devices can be accessed and operated freely from the docking station.
-
Page 2: Package Contents
Package contents 1 x USB Docking 1 x Power adapter 1 x Driver CD 1 x USB 2.0 Cable System Requirements Hardware PC with an Intel Pentium processor or equivalent CD-ROM or DVD drive USB version 2.0 port AC power source (AC adapter required) NOTE: When connected to a USB version 1.1 port on your computer, the USB Docking’s performance level will be less than optimal. -
Page 3: Installation Instructions
Installation Instructions To use the USB Docking Station, you must first install the driver onto your computer. IMPORTANT: The devices connected to USB Docking work only after the installation process is completed. You must complete the installation instructions before using any device connected to USB Docking. - Page 4 Click USB to VGA 1. The Installation Wizard window of the docking station will pop up. Click I Accept to proceed. NOTE: When you connect to USB Docking, icon on task bar Resolution: 4 : 3 Wide-screen 640×480 1280×720 800×600 1280×768 1024×768 1280×800...
- Page 5 Click USB to AUDIO 1. Before setup usb to audio driver please connect USB Docking first. 2. The Installation Wizard window of the docking station will pop up. Click Next to proceed. 3. Click Next to proceed.
- Page 6 4. Click Next to proceed. 5. Choose Yes, I want to restart my computer now. Click Finish and restart your computer when prompted.
- Page 7 6. Click this Icon on task bar 7. Set the Audio Output from the Tray...
- Page 8 Click USB-Ethernet Adapter driver 1. Click Install to proceed. 2. Click Continue Anyway to continue the installation. 3. Click Exit when prompted.
- Page 9 Click Compound Driver 1. Click Install to proceed. 2. Click Continue Anyway to continue the installation. 3. Click Exit when prompted.
- Page 10 Using USB Docking After installing the docking station software, you are ready to connect USB Docking to your computer. 1. Connect the supplied AC power adapter to the AC power jack on USB Docking. 2. Connect one end of the USB cable to USB Docking and the other end into an available USB 2.0 port on your computer.
