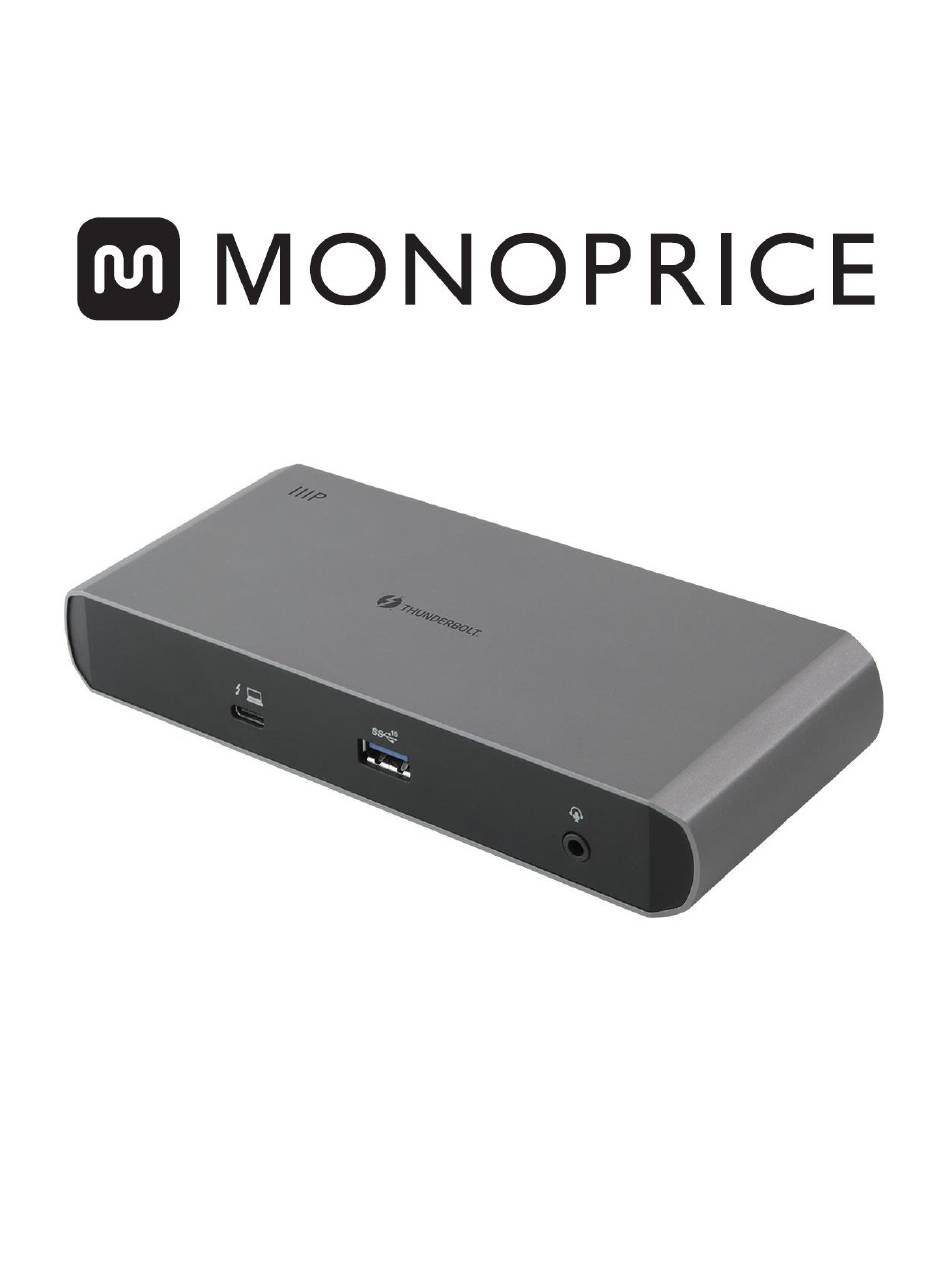

Thunderbolt™ 3 Dual DisplayPort® Docking Station
P/N 36656
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Thunderbolt 36656 and is the answer not in the manual?

Questions and answers

Related Manuals for Monoprice Thunderbolt 36656

Summary of Contents for Monoprice Thunderbolt 36656

  • Page 1 Thunderbolt™ 3 Dual DisplayPort® Docking Station P/N 36656 User's Manual...

  • Page 2: Safety Warnings And Guidelines

    SAFETY WARNINGS AND GUIDELINES Please read this entire manual before using this device, paying extra attention to these safety warnings and guidelines. Please keep this manual in a safe place for future reference.  This device is intended for indoor use only. ...
  • Page 3 INTRODUCTION This Monoprice Thunderbolt™ 3 Dual DisplayPort® Docking Station offers you the ability to connect your workstation to any USB Type-C™ equipped computer. When connected to a compatible Thunderbolt 3 host computer, you can connect up to two 4K@60Hz DisplayPort Displays, Gigabit Ethernet, 3.5mm Audio, USB 10Gbps Gen2 connectivity, and up to 60 watts of Power Delivery to the connected computer.

  • Page 4: Customer Service

    If you have any problem with your order, please give us an opportunity to make it right. You can contact a Monoprice Customer Service representative through the Live Chat link on our website www.monoprice.com or via email at support@monoprice.com.

  • Page 5: Sample Connection Diagram

    4. RJ45 Gigabit Ethernet Port 5. USB Type-A Ports (x2) 6. USB Type-C Ports (x2) 7. DisplayPort® Outputs (x2) 8. DC Power Connector SAMPLE CONNECTION DIAGRAM...

  • Page 6: Display Support

    (USB-C, SST) TECHNICAL SUPPORT Monoprice is pleased to provide free, live, online technical support to assist you with any questions you may have about installation, setup, troubleshooting, or product recommendations. If you ever need assistance with your new product, please come online to talk to one of our friendly and knowledgeable Tech Support Associates.

  • Page 7: Specifications

    SPECIFICATIONS Model 36656 Upstream Connection 1x Thunderbolt™ 3/USB Type-C™ Video Connections 2x DisplayPort® 1x 3.5mm TRRS (stereo audio and Audio Connection microphone) Network Connection 1x RJ45 Gigabit Ethernet Downstream Connections 2x USB Type-A, 2x Thunderbolt 3/USB-C™ Maximum Single Display Resolution 5120x3200@30Hz (Thunderbolt 3 Host Computer) Maximum Dual Display Resolution...
  • Page 8 Apple® Mac® OS X® Sierra 10.13 or later on a Thunderbolt™ 3 port Operating System/Hardware Compatibility Microsoft® Windows® 10 64-bit on a Thunderbolt 3 port AC Adapter Output Power 20 VDC, 135 watts AC Adapter Input Power 100 ~ 240 VAC, 50/60 Hz Operating Temperature +41 ~ +104°F (+5 ~ +40°C) Storage Temperature...
