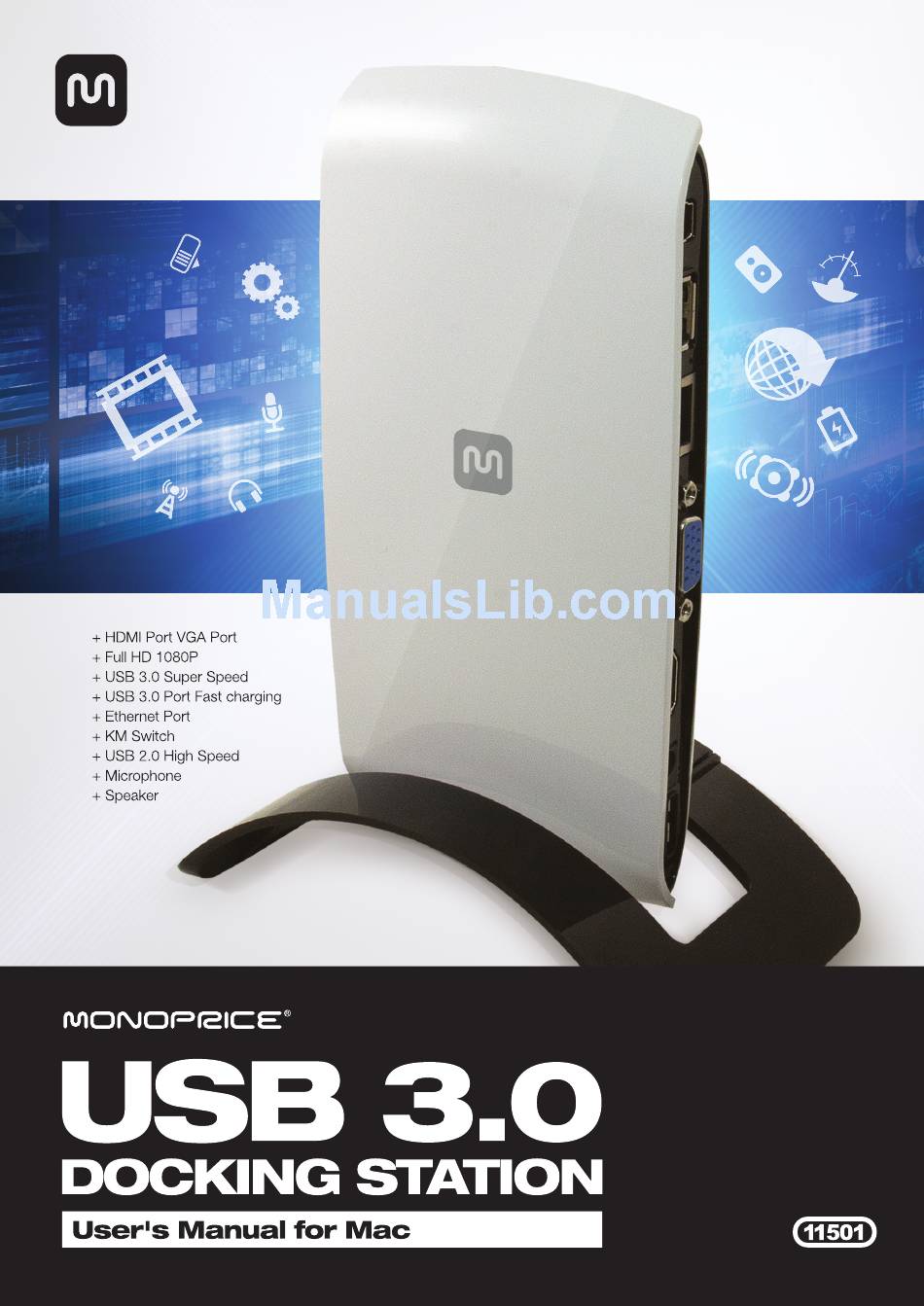

Usb 3.0 docking station
Hide thumbs Also See for 11501:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 11501 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Monoprice 11501

Summary of Contents for Monoprice 11501

  • Page 3: Device Driver Installation

    EVICE RIVER NSTALLATION You must install the device driver for your Mac to recognize the Docking Station and utilize all of its features. This section illustrates the steps needed to install the drivers to a Mac running OS X 10.7.x (Lion). Installation to other OS X versions is very similar.
  • Page 4 Step 3 Click “Continue” to proceed. Step 4 Click “Agree” to proceed.
  • Page 5 Step5 Click “Continue” to proceed. Step 6 Click “Install” to proceed.
  • Page 6 Step 7 Type in your password and click “OK”. Step8 Installation is proceeding….
  • Page 7 Step 9 Installation of the LAN drivers is complete. Click “Close”. Step 10 Open the dmg file on the disc to reveal two installation packages. Double click the pkg file that matches your OS X version (ML=Mountain Lion, SL=Snow Leopard).
  • Page 8 Step 11 Click “Continue” to proceed. Step 12 Click “Continue” to proceed.
  • Page 9 Step 13 Click “Install” to proceed. Step 14 Type in your password and click “OK”.
  • Page 10 Step 15 Click “Continue Installation”. Step 16 Installation is proceeding…This will take a few minutes.
  • Page 11 Step 17 Click “Restart” to complete the software installation. Step 7 (After System Reboot) 1. Connect the external display device (monitor/projector) to the VGA or HDMI connector on the Docking Station and turn it on. 2. Use the included micro USB cable to connect the Docking Station to an available USB port on your Mac.

  • Page 12: Display Arrangement

    UNCTION NSTRUCTION ISPLAY RRANGEMENT 1. Go to and select “System Preferences…” 2. In “System Preferences” click the “Display” tab. Select the appropriate resolution for your second monitor/ display device.
  • Page 13 3. Click the “Arrangement” tab and uncheck “Mirror Displays” to extend the desktop over both monitors/displays. 4. Move the bar to assign either display to be the Primary display and to set its location in relation to the other display.

  • Page 14: Setup The Sound

     If you cannot see the Display window to adjust your secondary monitor's resolution, click on the “Gather Windows” button.  To simplify using the Docking Station, click “Show display in menu bar”. You will see the display icon that you can double-click on at any time to adjust the display resolutions.
  • Page 15 2. Select the “Sound” icon. 3. Click the “Output” tab and select the USB option. The click the “Input” tab and also select the USB option.

  • Page 16: Device Driver U N - Installation

    EVICE RIVER INSTALLATION Step 1 Unplug the Docking Station from the USB port. Step 2 Open the dmg file on the disc and double-click the uninstaller icon. Step 3 Click “uninstall and restart” to proceed.
  • Page 17 Step 4 Type in your password to allow un-installation and click “OK” to proceed. Step 5 Click “Restart” to reboot your system.

  • Page 18: Getting Started: Mac

    KM S WITCH FUNCTION LIST  Windows to  Windows  Windows Windows to iPad to Android Function Behavior  Mac to MAC  Mac to  Mac to for OS  Windows to iPad Android Keyboard & Mouse Control Switching Use the mouse to move off the edge of the screen...
  • Page 20 Tips: You also can change the setting by going to “System Preferences” -> “Keyboard” -> “Change Keyboard Type”.

  • Page 22: Getting Started: Windows

    3. Click the USB Magic Switch CDROM icon on the desktop or on the “Macintosh HD” drive. Double-click the USB Magic Switch icon. 4. When the USB Magic Switch is connected properly, the following launch page will be shown. GETTING STARTED: WINDOWS Follow the steps below to start the application: 1.

  • Page 23: Troubleshooting

    2. The device will either automatically start the USB Magic Switch software installation on both computers or an “AutoPlay” option window may appear. Click on the option “Run SKLoader.exe”. TROUBLESHOOTING If auto-run is not enabled, please follow the steps: Ensure that both computers are properly connected to the USB cable. Go to My Computer and double-click the USB Magic Switch icon to start the application.
  • Page 24 When the USB Magic Switch is connected properly, you will see pop-up balloon showing “The connection has been made!” FUNCTIONALITY Let’s explore the functions and features the USB Magic Switch brings you! Keyboard and Mouse Sharing o Move the mouse & cursor between two computers seamlessly. Set the correct side of the other computer in “Preference”.
  • Page 25 : When the keyboard & mouse is being Icon controlled by the other computer. Clipboard Sharing o “Copy” the selected content (text or pictures) on the 1 computer and “Paste” it onto the 2 computer. Icon : When receiving clipboard data from another computer. File Transferring “Drag &...
  • Page 26 Magic Bridge You can see the file system of the other computer in Magic Bridge. Click the icon or click the Utility icon ( ) and select “Magic Bridge”. The menu will show on screen. Keyboard sharing for iPad You can connect a PC and an iPad via the USB Magic Switch and switch the PC’s keyboard to work on the iPad.

  • Page 27: Setup Instructions

    SETUP INSTRUCTIONS 。Utility Icon Function To begin set up, please click the USB Magic Switch Utility Icon In Windows: Magic Bridge: You can simply drag (or copy) a file from your computer and drop (or paste) it onto another computer using this bridge. The Position of Other PC: Set up the position of the other computer by using one of the 4 options (Right/Left/Up/Down).
  • Page 28 Disable (Enable) the Keyboard and Mouse Control Temporarily & Disable (Enable) Clipboard Share Temporarily: You can quickly Disable or Enable sharing option. If Disabling one of those functions, the icon ( ) will be shown. If Disabling both functions, the icon ( ) will be shown.

  • Page 29: Preferences Setup

    PREFERENCES SETUP Select Preferences, one of the windows below will appear. In Mac OS In Windows OS Keyboard & Mouse Control Switching Settings o Turn Off Disable Keyboard and Mouse Control Switching/Sharing. o Use Mouse to Move Off the Edge of Screen: To switch the control of Keyboard and Mouse from one computer to another, simply move the mouse off the edge of the screen.

  • Page 30: Event Notification

    o Hotkey You can setup a hotkey to activate the control switching. The default hotkey is (Alt+S). Clipboard Share Options o Turn Off Disable clipboard sharing. o Auto Share Enable clipboard sharing. Event Notification This option allows you to set the type of notification you receive when Clipboard Data is arriving / sending or when switching the control of the keyboard and mouse to another computer.
