Summary of Contents for Action NT Series

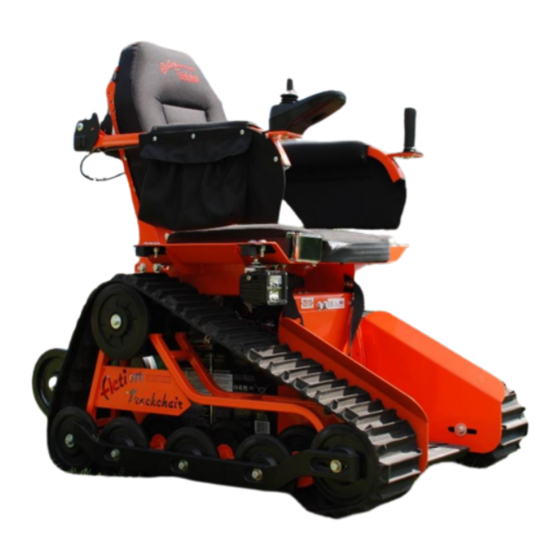

- Page 1 Action Trackchair NT Model Owner’s Manual Revised ~ April 15, 2016 Page | 1...
-
Page 2: Table Of Contents
Narangba, Qld. 4504 Table of Contents Table of Contents……………………………………………………………………………………………………......... 2 Introduction ..............................3 Safety ................................4 Operating the Action Trackchair ........................5 Comfort Adjustments ............................ 6 Batteries and Charging……………..……………………………………………………………………….……………………...7 & 8 Repair and Maintenance ..........................9 Warranties ..............................10 Specifications .............................. 11 Table 1: Hand Control Fault &... -
Page 3: Introduction
Introduction Welcome to the Action Trackchair Experience! We at KCF Disability Engineering and Action Manufacturing want to make your experience the best it can be. Enclosed in this owner’s manual you’ll find information for the use and maintenance of your Action Trackchair. -
Page 4: Safety
Safety Guidelines Only one person should be on the Trackchair at any time. Upper torso support harness is recommended. Do not navigate Trackchair on more than a 20 degree slope Trackchair will climb inclines enough to tip over in any direction. ... -
Page 5: Operating The Action Trackchair
Turn control on, hold joystick forward until you hear a beep or three seconds, then joystick back until you hear a beep or three seconds. It is now unlocked and ready for operation. The Action Trackchair control has five speeds, one-five and can be changed with the up and down arrows. -
Page 6: Comfort Adjustments
Comfort Adjustments The NT Action Trackchair is specially engineered to fit the needs of the user. The foot rest can be moved up or down. The armrests can be flipped up for easier transfer into the chair. The armrests can be adjusted outward to accommodate future growth. -
Page 7: Batteries And Charging
Batteries and Charging Battery charge will last up to six hours, depending on battery condition, temperatures and type of use the Trackchair is subject to (terrain and weight of rider). The Trackchair has a built-in battery charger that plugs into 240 volts using the power cord provided. Operation after Applying AC Power to a ProSport Charger Connected to Discharged Batteries During the startup test the battery type LED will be illuminated and the red charge mode LED will flash indicating that the... - Page 8 Batteries and Charging (Continued) To get maximum daily use, the battery must be fully charged. This is accomplished by having the Trackchair plugged in and charging until the “READY LIGHT” comes on. INDEPENDENT CHARGING BANK INDICATIONS When your battery charging system is activated, each bank provides charging information utilizing five red Light Emitting Diode (LED) indicators and one green Light Emitting Diode (LED) indicator.
-
Page 9: Repair And Maintenance
Cleaning your Trackchair The Action Trackchair can be washed with a garden hose, do not use high pressure wash to clean the chair. Always cover the joystick with a plastic bag to protect it from getting moisture inside. -
Page 10: Warranties
Warranties 1 YEAR: The following components are covered against manufacture defects in materials and workmanship for the period of one year. o Batteries o Control box and joy stick o Motors o All sprockets and idler wheels o Seats o All other parts 1 year Parts and Labor. -
Page 11: Specifications
Specifications NT Models NT14, NT16, NT18, NT20, NT22 Height 119cm Width 75cm (overall track width) Length 120 cm with rear idler wheels Weight 175kg approx. Occupant Weight up to 136kg Seat height 63cm Seat Depth 43cm Track Size 16.5cm X 228cm Batteries Two 12 volt AGM 100Ah each Controls... - Page 12 Revised September 27, 2016 Page | 12...
- Page 13 HANDCONTROL LCD DISPLAY FAULT/WARNING REMEDY Power Section Fault, or Current Sensor Fault, or EEPROM Fault, or Main Relay Fault, or Precharge Fault, or HW Failsafe 1. Cycle power Fault. 2. Replace powerbase. Handcontrol Fault, or Joystick Fault: 1. Return joystick to neutral and cycle power Joystick out of center, 2.
- Page 14 Controller Over/Under temperature 1. If too hot, wait for controller to cool. warning. 2. If too cold, drive chair in limited current mode until controller warms up. Drive Thermal Warning 1. Wait for motor to cool. 1. Check wiring. Open Motor Fault 2.
-
Page 15: Australian Standards Requirements
3. The identification plate is attached to the steel seat frame on the left hand side. 4. The action of disengaging the drive motor levers will put the Action Trackchair into a freewheel mode and as such there is no braking on the Action Trackchair. - Page 16 Connections to the batteries must be completed as shown below 1. The main wire harness (black in color) with the – symbol must be connected to the battery terminal that is identified with the – symbol and having a black colored ring around the battery bolt. 2.
- Page 17 To Motor Controller Figure #2 Revised ~ April 15, 2016...
