Assembly Instructions
Ethan Series
eliving
Product Code

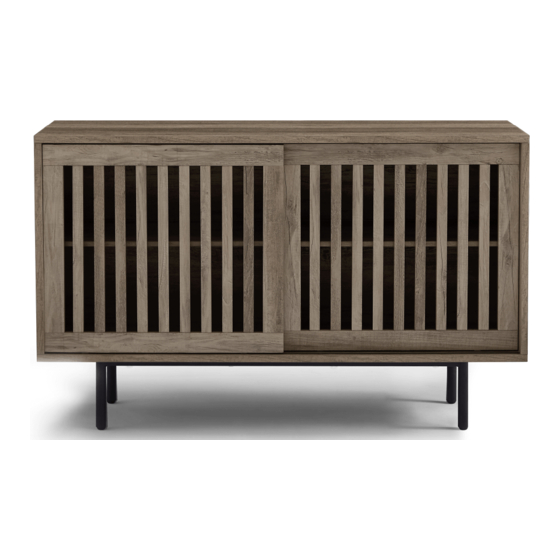

ETN-SB-DT Sideboard
Dimensions
W x D x H
(
1200*400*750mm
)
Important
Please read through instruction carefully
Before assembly and keep for future reference.
For our full catalogue of assembly instructions,
Visit: eliving.com.au/assembly.
Advertisement
Related Manuals for eliving FURNITURE Ethan ETN-SB-DT Sideboard
Summary of Contents for eliving FURNITURE Ethan ETN-SB-DT Sideboard
- Page 1 Assembly Instructions Ethan Series eliving Product Code Important ETN-SB-DT Sideboard Please read through instruction carefully Before assembly and keep for future reference. Dimensions W x D x H For our full catalogue of assembly instructions, 1200*400*750mm Visit: eliving.com.au/assembly.
- Page 2 Important Tips and Maintenance Never place liquids or anything Never use ammonia based To avoid fading, keep furniture Keep children and animals away from working area as damp upon furniture as it cleaning products as it will out of direct sunlight. will mark.
- Page 3 So your relationship is strong. But is it flat-pack furniture strong? Unless you're an aerospace engineer, assembling furniture can be slightly stressful. We recommend meditating quietly,pouring yourelf a herbal tea (or slightly less herbal wine) and tackling things one step at a time.
- Page 4 Component Hardware Please check you have all the fittings part or tools are listed in below. No.B No. A No. D No. E No. C Quantity:6Pcs Quantity:8Pcs Quantity:12Pcs Quantity:6Pcs Quantity:6Pcs Cam Bolt+Canm Nut Bolt Dowel Disc sticker Shelf Support Pin M6*50 8*30mm φ5*17...
- Page 5 Component Panels & part List Please check you have all the panels are listed below. Top panel Right door panel Bottom panel Iron Feet Side panel-left Side panel-ri Side panel-middle Corss shelf Back panel Back Slat Left door panel ETN-SB-DT 5...
- Page 6 STEP 1 No. A No. C No. I Quantity:6Pcs Quantity:6Pcs Quantity:1Pc Dowel Bolt Allen key 8*30mm M6*50 STEP 2 No. F No. I Quantity:8Pcs Quantity:1Pc Screw Allen key M6*12mm ETN-SB-DT 6...
- Page 7 STEP 3 No. F No. I Quantity:8Pcs Quantity:1Pc Screw Allen key M6*12mm STEP 4 ETN-SB-DT 7...
- Page 8 STEP 5 STEP 6 ETN-SB-DT 8...
- Page 9 STEP 7 No. A No. B No. E No. B Quantity:6Pcs Quantity:6Pcs Quantity:8Pcs Quantity:6Pcs Canm Nut Shelf Support Pin Dowel Cam Bolt 8*30mm φ5*35 φ15*10 φ5*15 STEP 8 No. D Quantity:6Pcs Disc sticker φ30 ETN-SB-DT 9...
- Page 10 STEP 9 No. O Quantity:16Pcs Plastic cover φ8*6 STEP 10 No. K No. L No. J No. N Quantity:4Pcs Quantity:32Pcs Quantity:2Pcs Quantity:4Pcs Screw Iron touch Upper pulley Down pulley 3*12 ETN-SB-DT 10...
- Page 11 STEP 11 STEP 12 No. U Quantity:1Pcs Screw 3*26 No. G No. T No. S No. H Quantity:12Pcs Quantity:2Pcs Quantity:4Pcs Quantity:12Pcs Screw Anti falling hardware Screw Plastic Corner Block 3*17 4*15 ETN-SB-DT 11...
- Page 12 STEP 13 STEP 14 No. P Quantity:4Pcs house lizard ETN-SB-DT 12...
- Page 13 STEP 15 No. Q Quantity:4Pcs Screw 4*35 No. T Quantity:2Pcs Anti falling hardware STEP 16 No. R Quantity:2Pcs Strip ETN-SB-DT 13...
- Page 14 elivingfurniture.com.au Great job. You're done! Don't forget to share how it looks in your space and tag #homewitheliving on lnstagram @elivingfurniture...
