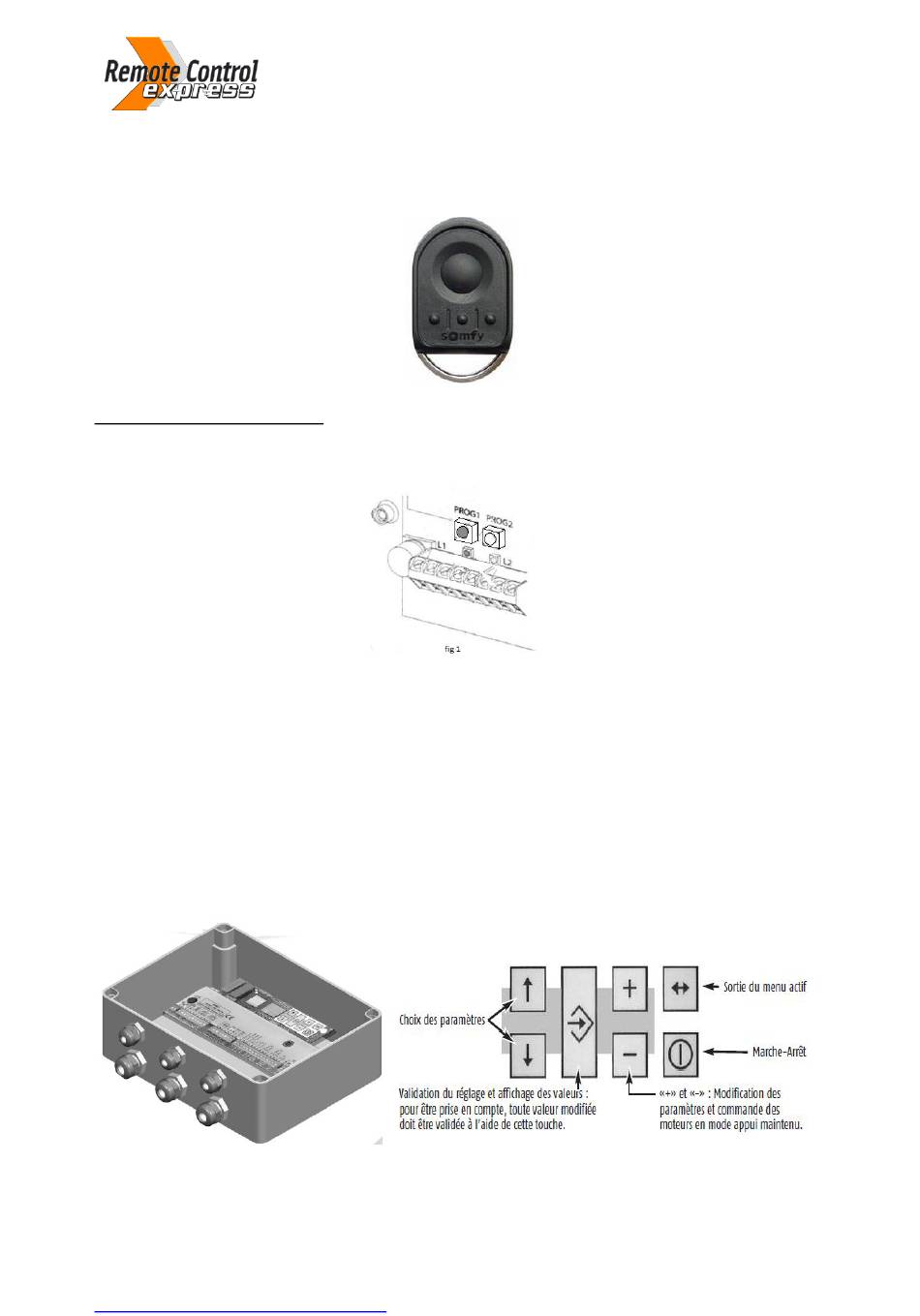

Remote Control SOMFY KEYGO T4 PRO Programming Manual

Programming with the receiver:
receiver type 1 (fig 1) :
1. Open the receiver cover. It is located in the vicinity of the motor.
2. Press on the receiver board the programming button "Prog 1" (fig 1) until the LED L1 on the
receiver lights.
3. Press a button on the new remote. Release the button. The LED on the receiver flashes and
then goes out.
4. Wait for 10 seconds.
5. Your new remote control is now programmed.
receiver type 2 (fig 2) :
1. Open the receiver cover. It is located in the vicinity of the motor.
2. Press one of the arrow buttons on the receiver until the position F0 appears on the display.
http://www.remotecontrol-express.com
Programming Manual
SOMFY KEYGO T4 PRO
Fig 2
