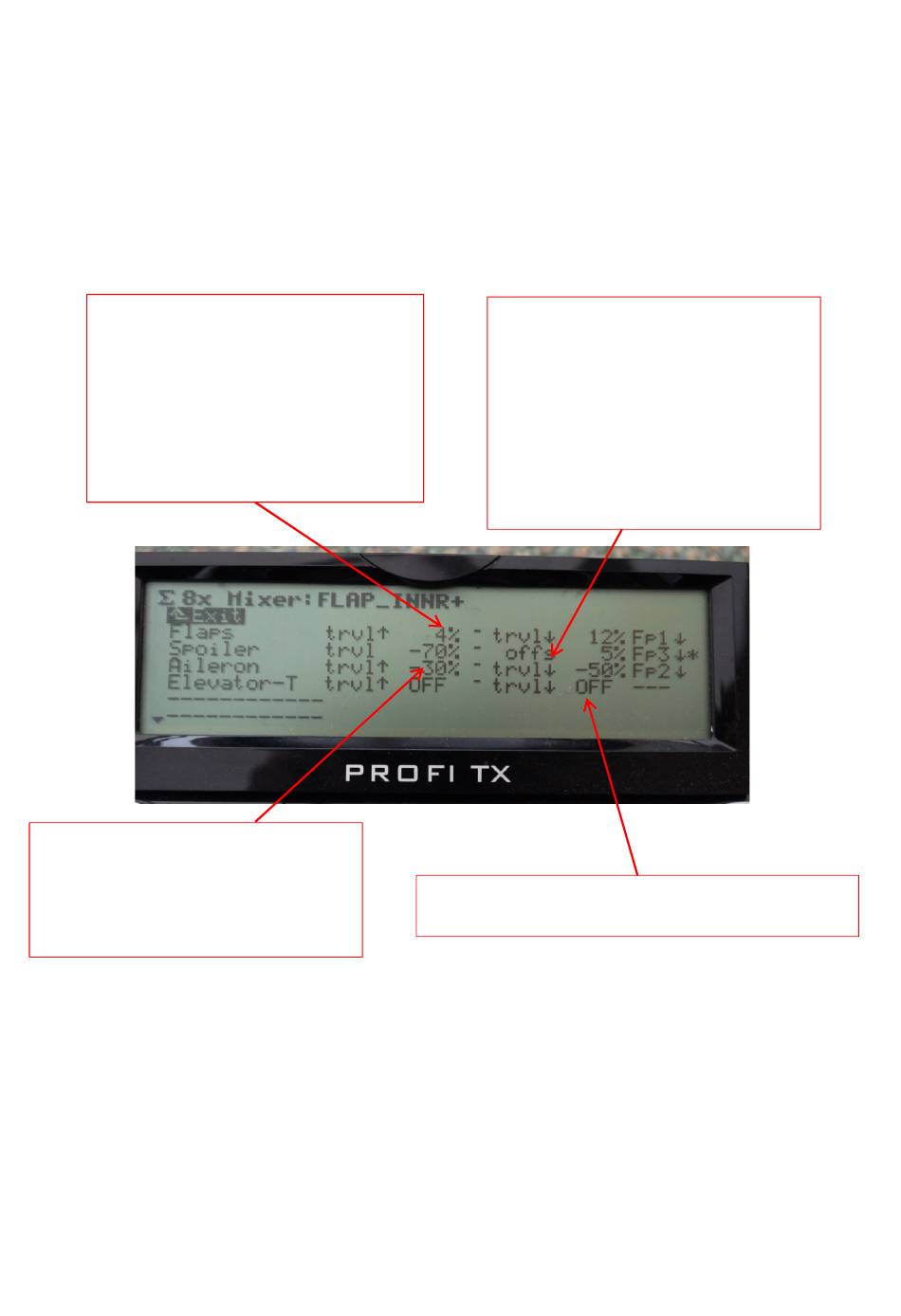

This is an example of the mixer inputs in the Mixer menu (GHI3) for the
FLAP_INNR+ mixer
Flap control input has been limited to
4% in one direction and 12% in the
opposite direction, the reflex and
thermal settings on this model,
meaning when the flap slider is fully
one way the model is in reflex mode
and thermal mode when the slider is
in the opposite direction.
Aileron input to the flaps is 30% in
one direction and 70% in the other,
note "–" needed get the correct
direction, rather than swap the flap
channels over!
When I'm setting up flaps on a glider, I would normally start with flap
input at 100% and all other inputs OFF, then in the servo calibrate
menu, calibrate both servos so that their travel matches at both ends
of the flap control and they match when the control is centred, or all 5
points if using a 5 point calibration curve. Then going to the mixer
menu, make the spoiler control active and set the spoiler offset and
spoiler travel, before inputting the required flap and aileron travels.
Profi – Mixers
3 - Servoside Mixers
Elevator input to flaps is off in both directions,
meaning there is no snap flap on this model
In the spoiler input , with the spoiler
control (e.g. slider or throttle stick) in
the raised position then the flaps are
offset by 5% and move to the -70%
position when spoiler is deployed.
Note that on this screen the spoiler is
active as shown by the astrisk, so
any changes made now would be
seen on the model.
