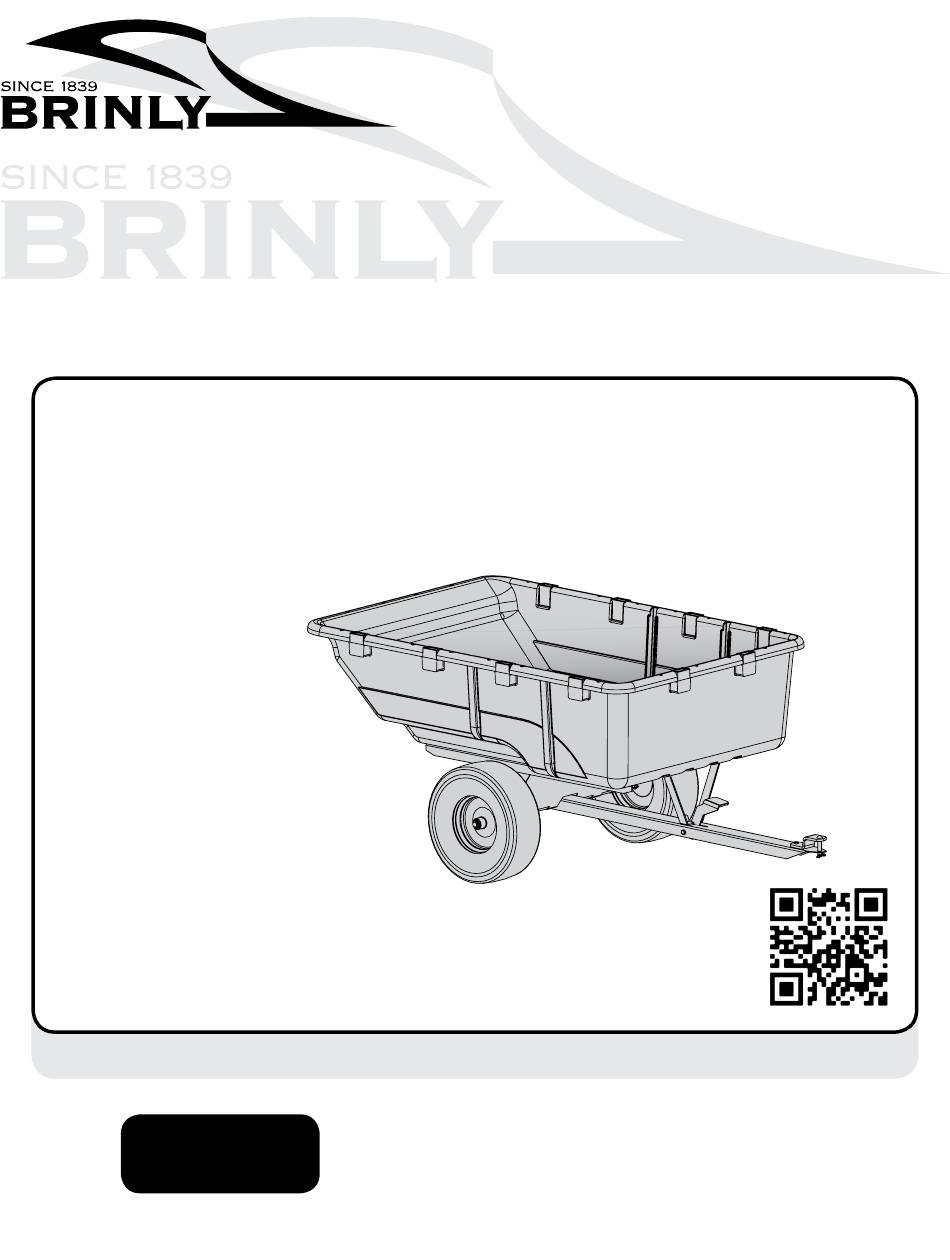

OWNER'S MANUAL
P O L Y C A R T , 1 7 C U B I C F O O T
MODEL:
P C T - 1 7 B H
P C T - 1 7 B H E X P
• Assembly
• Installation
• Operation
• Repair Parts
This utility cart is designed
for use with lawn tractors and
lawn and garden tractors.
Visit us on the web!
www.brinly.com
English Manual
Call Customer Service, Toll-Free: 877-728-8224
Important: This manual contains information for the safety
of persons and property. Read it carefully before
assembly and operation of the equipment!
1
English, Spanish &
French Manual
L-1821-L
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Brinly PCT-17BH
Summary of Contents for Brinly PCT-17BH
- Page 1 Call Customer Service, Toll-Free: 877-728-8224 Important: This manual contains information for the safety Visit us on the web! of persons and property. Read it carefully before www.brinly.com assembly and operation of the equipment! English Manual L-1821-L...
-
Page 2: Table Of Contents
INTROduCTION ANd SAFETY ================================================================================================ CONGRATULATIONS on your new Brinly-Hardy Lawn Cart! This accessory has been designed, engineered and manufactured to give you the best possible dependability and performance. Should you experience any problem you cannot easily remedy, please do not hesitate to contact our knowledgeable customer service department toll-free at 1-877-728-8224. - Page 3 SAFETY ================================================================================================ CAuTION WARNING CAUTION ATTENTION TO HELP PREVENT POUR ÉVITER BODILY INJURY LES BLESSURES DUE TO LOSS CAUSÉES PAR OF STABILITY UNE PERTE DE OR CONTROL STABILITÉ OU DE CONTRÔLE • Do n o t exc eed m a x i m u m t o w i n g ●...
- Page 4 Use counterweights Department, Toll Free: 877-728-8224 or wheel weights as described in the towing vehicle operator's or customerservice@brinly.com manual. • Do not turn sharply. Use additional caution when turning or operating under adverse surface conditions. Use care when reversing.
-
Page 5: Parts
PARTS ================================================================================================ Ref. description Part Number qty. Ref. description Part Number qty. Clevis B-3034-10 Caution Label * B-6535 Foot Pedal 1008604 Warning Label * B-7084 Spring (Foot Pedal) B-3303 Grip Tape * 1008603 Axle Support Bracket B-3308-10 Manual Group * L-1821ASM Lock Bracket B-3520-10... - Page 6 HARdWARE IdENTIFIER ================================================================================================ dO NOT RETuRN PROduCT IF YOu ARE MISSING PARTS. Illustrations on this page Please Call: 1 (877) 728-8224 are to scale for faster identification of hardware during assembly. Nut: Hex Head Retaining Ring 5/16” (x12) ....3/4”...
-
Page 7: Assembly
- Securely tighten all fasteners only AFTER assembly has been completed, unless noted otherwise. BRINLY.COM Additional info and videos are available on our website, or by scanning this QR code: Assembly Step 1 Install Supports Hardware Panel 1 1. - Page 8 ASSEMBLY ================================================================================================ Assembly Step 2 Install Axle Support Hardware Panel 2 1. Position the Axle Support (11) over slotted holes over the Longitudinal Supports (24) and bed (17). 2. Secure in place from inside the cart bed (17) with one 5/16 x 1 1/4" Round Head Screw (26), and 5/16"...
- Page 9 ASSEMBLY ================================================================================================ Assembly Step 4-B Hardware Panel 3 Begin to slide the 3/8 x 3-3/4 in. bolt (3) through the drawbar (18). Between the drawbar and the latch spring (9), add one 3/8 in. keps nut (10) to the bolt (3) as illustrated. NOTE: Foot pedal can be adjusted slightly while installing bolt (3).
- Page 10 ASSEMBLY ================================================================================================ Assembly Step 4-d Hardware Panel 3 1. On the outside of the drawbar, add bolt (3) with a 3/8 in. hex head locking nut (23) so that the foot pedal moves forward and backward freely. 2. Tighten nuts (10) toward the spring, but allow movement. Assembly Step 4-E 1.
- Page 11 ASSEMBLY ================================================================================================ Assembly Step 6 Install Clevis Hardware Panel 4 1. Position clevis (7) on the cart drawbar (18) as illustrated. 2. Slide two 5/16 x 3/4 in. hex head bolts (2) through the clevis (7) and the drawbar (18). Secure beneath the drawbar (18) with two 5/16 in.
- Page 12 ASSEMBLY ================================================================================================ Assembly Step 8 Install Axle 1. Slide the Axle (20) through the Axle Support (11) as illustrated. A light coating of grease or oil will aid in inserting the Axle (20) though the Axle Support (11). 2. Verify that the lock bracket (12) engages the foot pedal (8).
- Page 13 Gently flip the cart over. Assembly is Complete! Continue reading for details on Operation, Maintenance, Service and Accessory options. Additional info and videos are available on our website ( brinly.com ) OR you can scan this QR code: English Manual L-1821-L...
- Page 14 NOTES ================================================================================================ English Manual L-1821-L...
-
Page 15: Use And Care
uSE ANd CARE ================================================================================================ MODEL: P C T - 1 7 B H C A R T U S E & C A R E S E C T I O N SPECIFICATIONS INSTALLING CART Cart Bed CAuTION: Capacity ..17 cu ft AVOId INJuRY! Before installing Maximum... - Page 16 uSE ANd CARE ================================================================================================ uNLOAdING CART dETERMINING WEIGHT FOR CART 1. Park towing vehicle safely (See Towing Vehicle Manual). CAuTION: AVOId INJuRY! Excessive towed load can cause loss of traction and loss of control on slopes. Stopping distance increases CAuTION: Avoid Injury! with speed and weight of towed load.
- Page 17 Ref. Description: Qty. Ref. Description: Qty. and your Brinly Poly Cart. • The stake side kit is Long Pressure Treated Wood: Hardware: for transporting light debris only, such as leaves, straw, 1” x 2” x 13-1/2”...
- Page 18 12-15/16 13-1/8 uSE ANd CARE 4” ================================================================================================ 9/32 Diameter dIY: dIRECTIONS FOR CuSTOM-BuILT SIdE STAKES, Continued Step 3. Drill four 9/32" holes in the 55-3/4" wood panels for part (3). Holes must be aligned as illustrated here: 9/32 9/32 Diameter Diameter 4”...
- Page 19 Customer Service department: pin for an extra-strong, In North America and Canada convenient upgrade. call Toll-Free: 877-728-8224 - Diameter: 1/2” Chat online: www.brinly.com - Pin Length: 3” Email: customerservice@brinly.com PCT-17BH ONLINE: BRINLY.COM Additional info and videos are available NOTE: Additional accesories are on our website.
- Page 20 MANUFACTURER’S LIMITED WARRANTY CARTS The limited warranty set forth below is given by Brinly-Hardy Company with respect to new merchandise purchased and used in the United States (its possessions and territories) and Canada. Brinly-Hardy Company warrants the products listed below against to use this product.
