- Page 1 4-Port SATA II Backplane 80H10230101A0 User’s Manual CHENBRO Mini-Server Chassis 4-Ports SATA II Backplane User’s Manual 80H10230101A0 Nov / 7 / 2011 15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C., Tel: +886 2 82265500 Fax: +886 2 82265392...
-
Page 2: Copyright
Chenbro Micom Co., Ltd. reserves the right to make improvement and modification to the products indicated in this manual at any time. Specifications are therefore subject to change without prior notice. -
Page 3: Table Of Contents
4-Port SATA II Backplane 80H10230101A0 User’s Manual Contents Copyright……………………………………………………………………………………………..2 Technical Support……………………………………………………..…………………………………2 Revision History………………………………………………………………………………………….4 Hardware Specification………………………………………………………………………………… 5 Accommodated Chassis………………………………………………………………………………..5 Backplane Photos………………………………………………………………………………………..6 Backplane layout…………………………………………………………………………………………7 HDD cage assembly……………………………………………………………………………………10 Backplane wiring……………………………………………………………………………………….11 15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C., Tel: +886 2 82265500 Fax: +886 2 82265392 Email: info@chenbro.com.tw... -
Page 4: Revision History
4-Port SATA II Backplane 80H10230101A0 User’s Manual Revision History Date Modifications Nov / 7 / 2011 First release 15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C., Tel: +886 2 82265500 Fax: +886 2 82265392 Email: info@chenbro.com.tw... -
Page 5: Hardware Specification
SATA / SAS Hot-Swap Yes, allows user to on line replace Hard Disk Drive LED indicates Hard Disk Drive status ( Defined by Chenbro ) Power LED – Blue ( When HDD is present ) Display Access LED –Green ( When HDD is busy ) Error LED –Red ( When HDD is fail ) -
Page 6: Backplane Photos

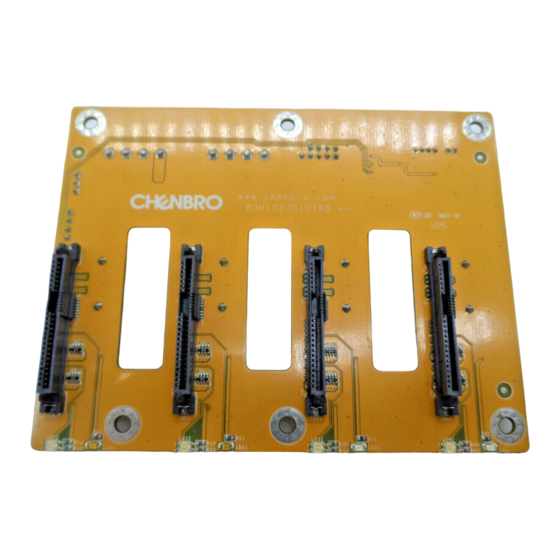

4-Port SATA II Backplane 80H10230101A0 User’s Manual Backplane photos Front side Rear side 15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C., Tel: +886 2 82265500 Fax: +886 2 82265392 Email: info@chenbro.com.tw... -
Page 7: Backplane Layout
4-Port SATA II Backplane 80H10230101A0 User’s Manual Backplane Layout Front view ( HDD slot IN ) [CH11 / CH21 / CH31 / CH41]: connect to 29pin SAS or 22pin SATA II HDD 2. [LD11 / LD21 / LD31 / LD41]: Blue LED indicate HDD Power, 3. - Page 8 4-Port SATA II Backplane 80H10230101A0 User’s Manual Rear View ( Host Connectors IN ) 4. [CH12 / CH22 / CH32 / CH42]: connect to 7pin SATA II host 5. [JF01]: 3P3C Fan connector Pin1 [F0104]: Discrete HDD Fail LED Signal Input connector ( From RAID Card )
- Page 9 4-Port SATA II Backplane 80H10230101A0 User’s Manual 7. [CN01 / CN02]: standard big 4pin power connector [CN04]: SGPIO Signal Input connector (from RAID Card) Pin1 15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C., Tel: +886 2 82265500 Fax: +886 2 82265392 Email: info@chenbro.com.tw...
-
Page 10: Hdd Cage Assembly
4-Port SATA II Backplane 80H10230101A0 User’s Manual HDD Cage assembly Photo Steps SR301 Backplane Put backplane on the behind of HDD cage Locked screws Finished goods 15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C., Tel: +886 2 82265500 Fax: +886 2 82265392 Email: info@chenbro.com.tw... -
Page 11: Backplane Wiring
4-Port SATA II Backplane 80H10230101A0 User’s Manual Backplane Wiring To PSU To PSU SGPIO connector To Fan To RAID card To M/B To M/B To M/B To M/B SATA 7pin Cable Fan cable standard big 4pin power HDD Fail LED Signal Input External HDD Activity LED Signal Input 15Fl., No.150, Jian Yi Road, Chung Ho City, Taipei Hsien, Taiwan R.O.C.,...
