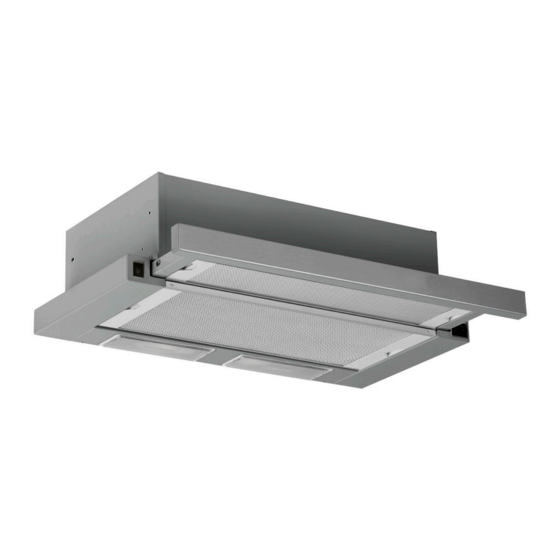

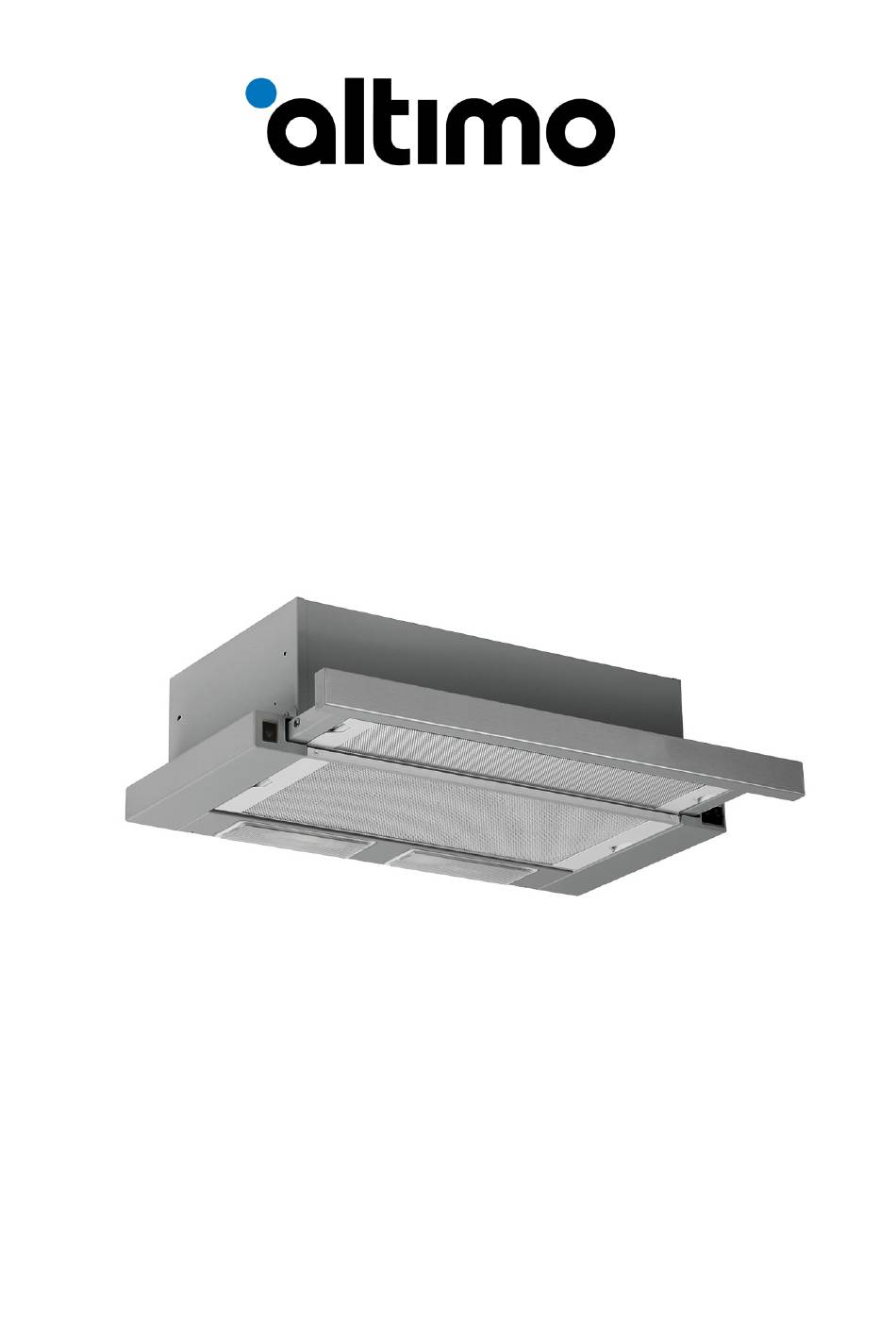

- Page 1 Instruction Manual 60cm Telescopic Cooker Hood TCH601SS...
-
Page 3: Table Of Contents
Contents TECHNICAL DRAWING WARNING AND SAFETY PRECAUTIONS 2.1 LETHAL RISK, DANGER OF POISONING USING WITH OR WITHOUT A CARBON FILTER CARBON FILTER REPLACEMENT CLEANING AND PREVENTIVE MAINTENANCE 5.1 ALUMINIUM FILTER CLEANING 5.2 WASHING YOUR FILTER IN A DISHWASHER 5.3 WASHING YOUR FILTER BY HAND APPLIANCE POSITIONING 6.1 UNPACKING THE APPLIANCE 6.2 ENERGY SAVING AND EFFICIENT USE... -
Page 4: Technical Drawing
1 TECHNICAL DRAWING Fig. 1 This instruction book includes all the information you need for safe installation, use and care of your new hood. • Please read all the information before installing and using your device • Keep this instruction book in a safe place so you can refer to it later •... -
Page 5: Warning And Safety Precautions
2 WARNINGS AND SAFETY PRECAUTIONS WARNINGS AND SAFETY PRECAUTIONS This appliance can be used by children of 8 years and older, people with physical, sensory or mental capability deficiency or people with lack of experience or knowledge; as long as they are provided supervision or instructions for the safe use of the appliance and they comprehend the dangers. - Page 6 WARNING AND SAFETY PRECAUTIONS • In case of fire, isolate the power to the hood and any other cooking devices. (unplug the appliance or turn off at the main switch). • Keep your product clean. Build-up of deposits can increase the risk of fire. •...
-
Page 7: Lethal Risk, Danger Of Poisoning
LETHAL RISK, DANGER OF POISONING DANGER! Warning - Choking Hazard The packaging materials are dangerous for children. Never allow children to play with packaging materials. DANGER! Warning - Death Hazard Danger to life and danger of poisoning due to reabsorbed combustion gases. When used in extraction mode (via ducting) you must ensure there is adequate ventilation for sufficient fresh air. - Page 8 13a plug from the socket, then contact customer service. – Unsuitable repairs pose hazards. Repairs and replacement parts, including power cords, must be provided by Altimo approved technicians or other trained individuals. – Do not use copious amounts of water to clean your hood. High pressure or steam cleaners must not be used.
- Page 9 WARNING! Dangers of fire and physical injury! Do not use an adapted or non-authorised repair. Do not make repairs or modifications to the design of your product. Repairs must be performed by authorised trained individuals. Spare parts must be original as designed. NOTICE! If your hood appears to be faulty or damaged, stop use, turn off, isolate the power or remove the 13a plug from the socket and contact customer service.
-
Page 10: Using With Or Without A Carbon Filter
Consult your local dealer or visit www.altimo.co.uk The model number of your hood is on the front of these instructions. The part number for the carbon filters required for this hood is Altimo CF002 Supplied in a pack of two (as two required) -
Page 11: Carbon Filter Replacement
4 CARBON FILTER REPLACEMENT Use this method for installing (optional) carbon filters for the first time or when replacing for new ones. 1. Remove the aluminium grease filters and carefully place to one side. 2. Locate the cylindrical motor assembly in the centre of the hood. 3. -
Page 12: Cleaning And Preventive Maintenance
5 CLEANING AND PREVENTIVE MAINTENANCE CAUTION! Cleaning and user maintenance of the appliance should not be performed by unattended children. • Do not use aggressive or abrasive cleaning agents as these could damage your appliance. Take extra care around the switches and finished surfaces as these are more sensitive to scratching. -
Page 13: Aluminium Filter Cleaning
5.1 ALUMINIUM FILTER CLEANING To remove the aluminium grease filter first locate the opener tab (1) and press it gently sideways against its spring in the direction shown (2). Then pull the filter away from the hood gently in the direction of the arrow as shown (3) (Fig. -
Page 14: Appliance Positioning
6 APPLIANCE POSITIONING Fig. 7 The final installed position of the hood must exceed the minimum required distance (Fig. 7). The minimum distance between the bottom of the hood and a gas (or other burning fuel) cook top is 75cm. The minimum distance between the bottom of the hood and an electric cook top must be at least 65cm. -
Page 15: Energy Saving And Efficient Use
ENERGY SAVING AND EFFICIENT USE RECOMMENDATIONS Here, you can find some recommendations on how you can save more energy while using your appliance. By adopting best practice, you can ensure efficient operation of your hood. • Use the lowest speed possible whilst adequately clearing cooking vapours. Increase and decrease speed as needed during cooking. -
Page 16: Package Contents
7 PACKAGE CONTENTS Fig. 8 1. Hood assembly 2. 4x 4x40 Mount Screw 3. User Manual 4. Installation template 5. Ø125mm Plastic Flue Adapter 6. Flue Flap (Optional) OVERVIEW OF YOUR COOKER HOOD Fig. 9 1. Body 2. Front Panel 3. -
Page 17: Assembly Of Your Hood
8 ASSEMBLY OF YOUR HOOD This is a suggested installation. All kitchens are different. If you are unsure, please consult with a trained person. Preparations for mounting your hood to the kitchen unit 1. Offer up and attach the installation template supplied. - Page 18 Mounting your hood 1. Use the 4 x supplied screws to fix your hood into the pilot holes already created. 2. Ensure the telescopic front panel can freely move in and out Installing the flue pipe outlet 1. Install flexible aluminium pipe to plastic flue outlet.
-
Page 19: Operation
9 OPERATION Fig.14 A. Light On / Off Switch B. Circulation Fan Speed 1 and 2 Switch C. Circulation Fan Speed 3 Switch Off position Fan speed 1 Fan speed 2 Fan speed 3 Button to turn the light on and off... -
Page 20: Replacing The Lamps
10 REPLACING THE LAMPS Lamp replacement WARNING! Disconnect the electrical supply of the hood. Leave the lamps to cool down first to avoid the risk of burning. It indicates the maximum power consumption of the lamp. A lamp with same power rating should be used when replacing the lamp. -
Page 21: Authorised Service
Ensure you have inlet air. If your kitchen area is sealed without fresh air this will impair air flow. Open a window or door. If you are not satisfied with your hood, please contact Altimo Customer Care. Troubleshooting Fault description... -
Page 22: Technical Table
Specifications of the device and this manual may be modified without prior notification. 13 PRODUCT SUPPORT We want you to be happy with your hood. If you have a concern, question or need a repair please contact Altimo customer service: • Telephone 0330 041 7490 during business hours •... - Page 23 For customer service call: 0330 041 7490...
