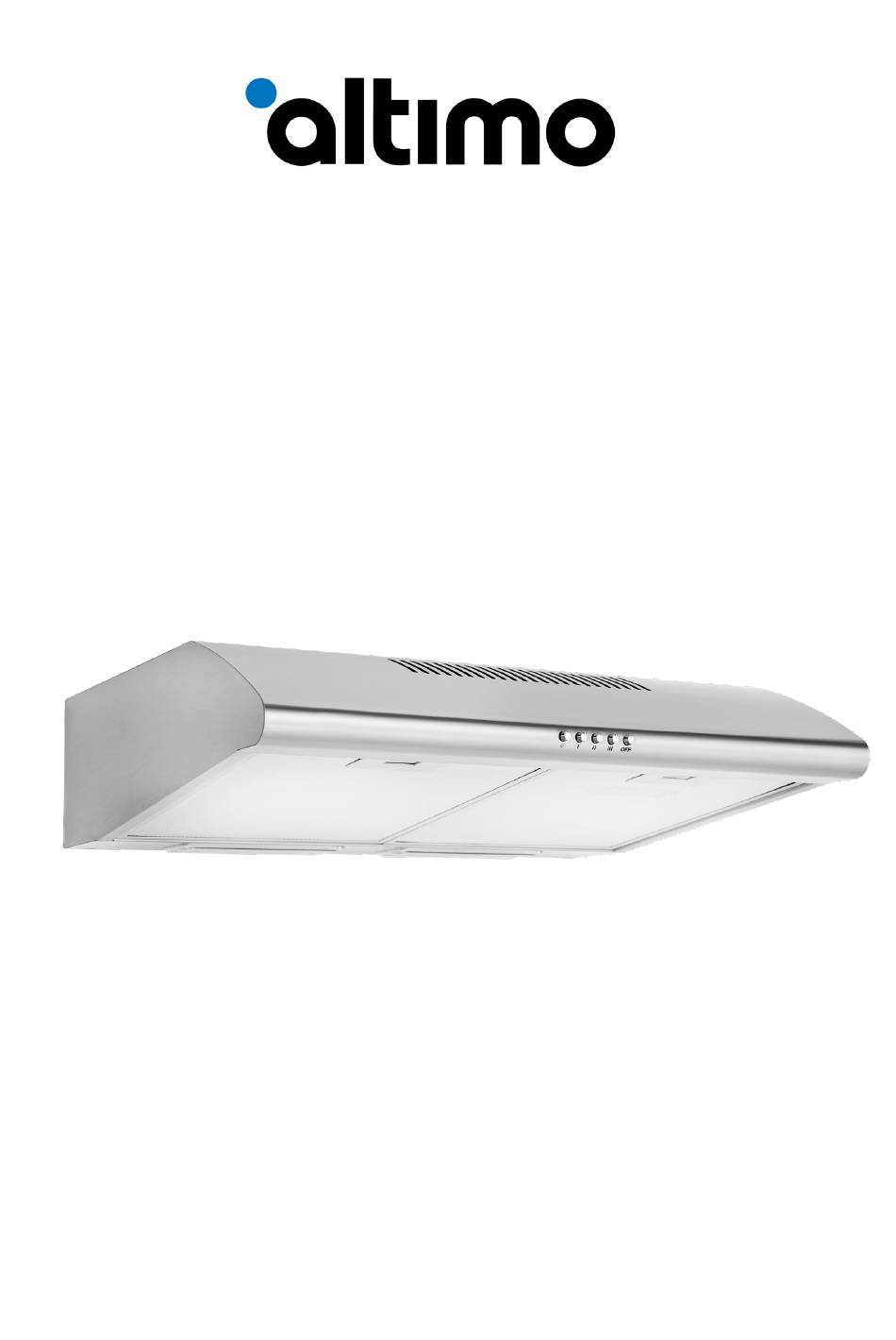

- Page 1 Instruction Manual 60cm Cooker Hood SCH601W / SCH601B / SCH601SS...
-
Page 3: Table Of Contents
Contents TECHNICAL DRAWING WARNING AND SAFETY PRECAUTIONS 2.1 LETHAL RISK, DANGER OF POISONING USING WITH OR WITHOUT A CARBON FILTER CARBON FILTER REPLACEMENT CLEANING AND PREVENTIVE MAINTENANCE 5.1 ALUMINIUM FILTER CLEANING 5.2 WASHING YOUR FILTER IN A DISHWASHER 5.3 WASHING YOUR FILTER BY HAND APPLIANCE POSITIONING 6.1 UNPACKING THE APPLIANCE 6.2 ENERGY SAVING AND EFFICIENT USE... -
Page 4: Technical Drawing
1 TECHNICAL DRAWING Fig. 1... -
Page 5: Warning And Safety Precautions
2 WARNINGS AND SAFETY PRECAUTIONS WARNINGS AND SAFETY PRECAUTIONS This appliance can be used by children of 8 years and older, people with physical, sensory or mental capability deficiency or people with lack of experience or knowledge; as long as they are provided supervision or instructions for the safe use of the appliance and they comprehend the dangers. - Page 6 WARNING AND SAFETY PRECAUTIONS • In case of fire, isolate the power to the hood and any other cooking devices. (unplug the appliance or turn off at the main switch). • Keep your product clean. Build-up of deposits can increase the risk of fire. •...
-
Page 7: Lethal Risk, Danger Of Poisoning
LETHAL RISK, DANGER OF POISONING DANGER! Warning - Choking Hazard The packaging materials are dangerous for children. Never allow children to play with packaging materials. DANGER! Warning - Death Hazard Danger to life and danger of poisoning due to reabsorbed combustion gases. When used in extraction mode (via ducting) you must ensure there is adequate ventilation for sufficient fresh air. - Page 8 13a plug from the socket, then contact customer service. – Unsuitable repairs pose hazards. Repairs and replacement parts, including power cords, must be provided by Altimo approved technicians or other trained individuals. – Do not use copious amounts of water to clean your hood. High pressure or steam cleaners must not be used.
- Page 9 WARNING! Dangers of fire and physical injury! Do not use an adapted or non-authorised repair. Do not make repairs or modifications to the design of your product. Repairs must be performed by authorised trained individuals. Spare parts must be original as designed. NOTICE! If your hood appears to be faulty or damaged, stop use, turn off, isolate the power or remove the 13a plug from the socket and contact customer service.
-
Page 10: Using With Or Without A Carbon Filter
Consult your local dealer or visit www.altimo.co.uk The model number of your hood is on the front of these instructions. The part number for the carbon filters required for this hood is Altimo CF001 Supplied in a pack of two (as two required) -
Page 11: Carbon Filter Replacement
4 CARBON FILTER REPLACEMENT Although it is always preferable to duct cooking air outside, in some room settings this is not possible. This is the method to use if you have no access to use an outside flue and instead want to clean and recycle air. -
Page 12: Cleaning And Preventive Maintenance
5 CLEANING AND PREVENTIVE MAINTENANCE CAUTION! Cleaning and user maintenance of the appliance should not be performed by unattended children. • Do not use aggressive or abrasive cleaning agents as these could damage your appliance. Take extra care around the switches and finished surfaces as these are more sensitive to scratching. -
Page 13: Aluminium Filter Cleaning
5.1 ALUMINIUM FILTER CLEANING To remove the aluminium grease filter first locate the opener tab (1) and press it gently sideways against its spring in the direction shown (2). Then pull the filter away from the hood gently in the direction of the arrow as shown (3) (Fig. -
Page 14: Appliance Positioning
6 APPLIANCE POSITIONING Fig. 11 The final installed position of the hood must exceed the minimum required distance (Fig. 11). The minimum distance between the bottom of the hood and a gas (or other burning fuel) cook top is 75cm. The minimum distance between the bottom of the hood and an electric cook top must be at least 65cm. -
Page 15: Package Contents
7 PACKAGE CONTENTS Fig. 12 Product Short Air Deflector (for recycled air mode) Long Air Deflector (fitted from factory) Hanging Hook (x2) User Manual 2x Ø10mm Wall Plug 4x 4x40 Screw... -
Page 16: Assembly Of Your Product
8 ASSEMBLY OF YOUR PRODUCT This is a suggested installation. All kitchens are different. If you are unsure, please consult with a trained person. 1. Remove the aluminium grease filter and place to one side. Fig. 13 2. Offer up the intended position of your hood and mark the two fixing points on the rear of the hood (shown as E and F on Fig. -
Page 17: Operation
9 OPERATION How to use the push button controls Fig.17: Push buttons Fan speed 1 Fan speed 2 Fan speed 3 Light on and off... -
Page 18: Replacing The Lamps
10 REPLACING THE LAMPS Lamp replacement WARNING! Disconnect the electrical supply of the hood. Leave the lamps to cool down first to avoid the risk of burning. It indicates the maximum power consumption of the lamp. A lamp with same power rating should be used when replacing the lamp. -
Page 19: Authorised Service
Ensure you have inlet air. If your kitchen area is sealed without fresh air this will impair air flow. Open a window or door. If you are not satisfied with your hood, please contact Altimo Customer Care. Troubleshooting Fault description... -
Page 20: Technical Table
Specifications of the device and this manual may be modified without prior notification. 13 PRODUCT SUPPORT We want you to be happy with your hood. If you have a concern, question or need a repair please contact Altimo customer service: • Telephone 0330 041 7490 during business hours •... -
Page 21: Your Appliance Guarantee
Call the specialist Service Line for your product: 0330 041 7490 This guarantee in no way affects your statutory or legal rights. Any information provided to us for the purposes of product support is subject to our privacy policy, which can be viewed online at: www.altimo.co.uk/privacy-policy... - Page 22 For customer service call: 0330 041 7490...
