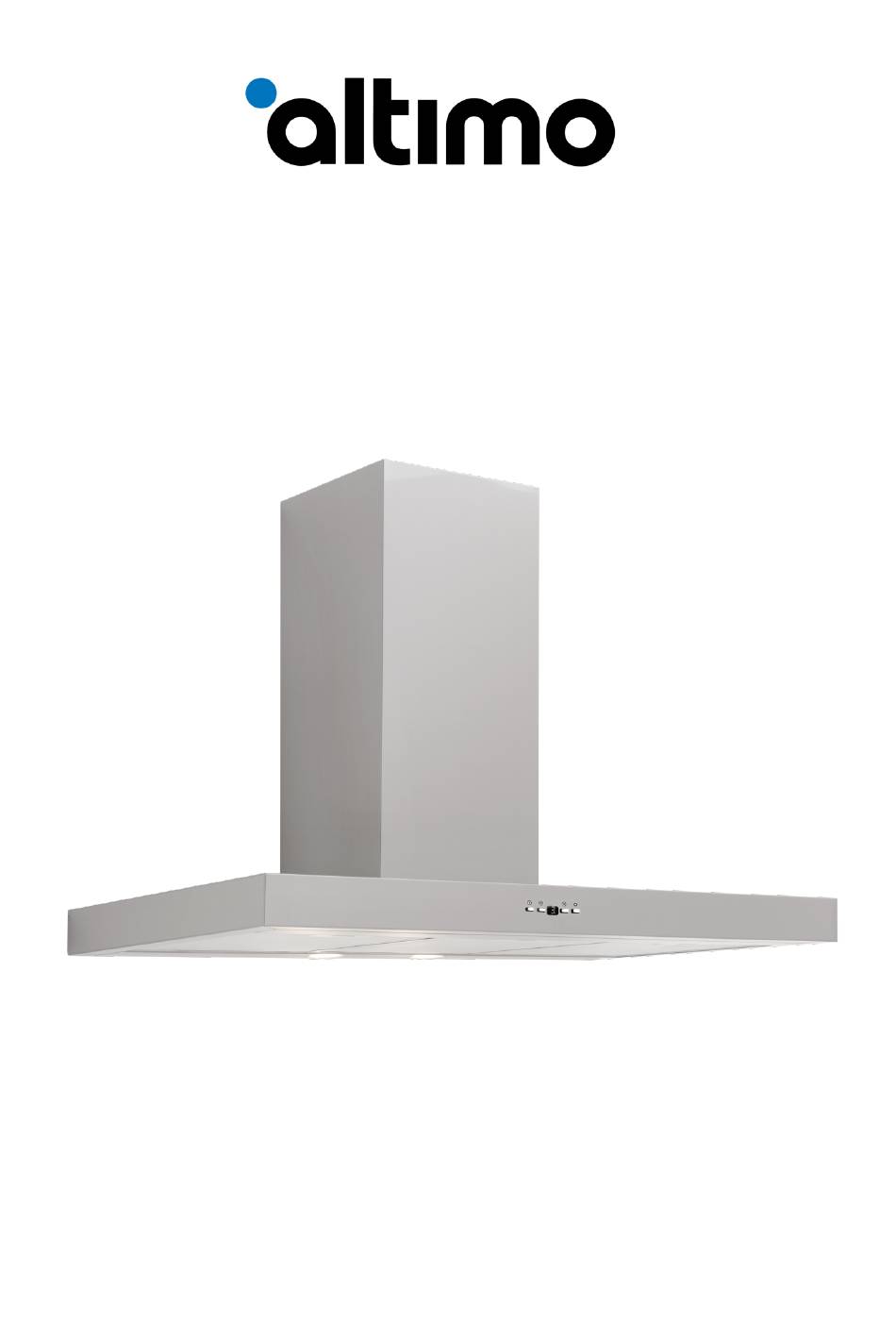

- Page 1 Instruction Manual 90cm T-Line Cooker Hood TH902SS...
-
Page 3: Table Of Contents
Contents TECHNICAL DRAWING WARNING AND SAFETY PRECAUTIONS 2.1 LETHAL RISK, DANGER OF POISONING USING WITH OR WITHOUT A CARBON FILTER CARBON FILTER REPLACEMENT CLEANING AND PREVENTIVE MAINTENANCE 5.1 ALUMINIUM FILTER CLEANING 5.2 WASHING YOUR FILTER IN A DISHWASHER 5.3 WASHING YOUR FILTER BY HAND APPLIANCE POSITIONING 6.1 UNPACKING THE APPLIANCE 6.2 ENERGY SAVING AND EFFICIENT USE... -
Page 4: Technical Drawing
1 TECHNICAL DRAWING Fig. 1 This instruction book includes all the information you need for safe installation, use and care of your new hood. • Please read all the information before installing and using your device • Keep this instruction book in a safe place so you can refer to it later •... -
Page 5: Warning And Safety Precautions
2 WARNINGS AND SAFETY PRECAUTIONS WARNINGS AND SAFETY PRECAUTIONS This appliance can be used by children of 8 years and older, people with physical, sensory or mental capability deficiency or people with lack of experience or knowledge; as long as they are provided supervision or instructions for the safe use of the appliance and they comprehend the dangers. - Page 6 WARNING AND SAFETY PRECAUTIONS • In case of fire, isolate the power to the hood and any other cooking devices. (unplug the appliance or turn off at the main switch). • Keep your product clean. Build-up of deposits can increase the risk of fire. •...
-
Page 7: Lethal Risk, Danger Of Poisoning
LETHAL RISK, DANGER OF POISONING DANGER! Warning - Choking Hazard The packaging materials are dangerous for children. Never allow children to play with packaging materials. DANGER! Warning - Death Hazard Danger to life and danger of poisoning due to reabsorbed combustion gases. When used in extraction mode (via ducting) you must ensure there is adequate ventilation for sufficient fresh air. - Page 8 13a plug from the socket, then contact customer service. – Unsuitable repairs pose hazards. Repairs and replacement parts, including power cords, must be provided by Altimo approved technicians or other trained individuals. – Do not use copious amounts of water to clean your hood. High pressure or steam cleaners must not be used.
- Page 9 WARNING! Dangers of fire and physical injury! Do not use an adapted or non-authorised repair. Do not make repairs or modifications to the design of your product. Repairs must be performed by authorised trained individuals. Spare parts must be original as designed. NOTICE! If your hood appears to be faulty or damaged, stop use, turn off, isolate the power or remove the 13a plug from the socket and contact customer service.
-
Page 10: Using With Or Without A Carbon Filter
Consult your local dealer or visit www.altimo.co.uk The model number of your hood is on the front of these instructions. The part number for the carbon filters required for this hood is Altimo CF005. Supplied as a single item (one required). -
Page 11: Carbon Filter Replacement
4 CARBON FILTER REPLACEMENT Use this method for installing an (optional) carbon filter for the first time or when replacing a new one. 1. Remove the aluminium grease filter and carefully place to one side. 2. Locate the square motor assembly casing in the centre of the hood. -
Page 12: Cleaning And Preventive Maintenance
5 CLEANING AND PREVENTIVE MAINTENANCE CAUTION! Cleaning and user maintenance of the appliance should not be performed by unattended children. • Do not use aggressive or abrasive cleaning agents as these could damage your appliance. Take extra care around the switches and finished surfaces as these are more sensitive to scratching. -
Page 13: Aluminium Filter Cleaning
5.1 ALUMINIUM FILTER CLEANING To remove the aluminium grease filter first locate the opener tab (1) and press it gently sideways against its spring in the direction shown (2). Then pull the filter away from the hood gently in the direction of the arrow as shown (3) (Fig. -
Page 14: Appliance Positioning
6 APPLIANCE POSITIONING Min 65 cm Min 75 cm Fig. 8 The final installed position of the hood must exceed the minimum required distance (Fig. 8). The minimum distance between the bottom of the hood and a gas (or other burning fuel) cook top is 75cm. -
Page 15: Energy Saving And Efficient Use
ENERGY SAVING AND EFFICIENT USE RECOMMENDATIONS Here, you can find some recommendations on how you can save more energy while using your appliance. By adopting best practice, you can ensure efficient operation of your hood. • Use the lowest speed possible whilst adequately clearing cooking vapours. Increase and decrease speed as needed during cooking. -
Page 16: Package Contents
7 PACKAGE CONTENTS Fig. 9 Hood Assembly Mounting Bracket Chimney Extension Ø6mm Plastic Wall Plug Chimney 10. Ø10mm Plastic Wall Plug Ø150/125mm Plastic Duct 11. 5.5x60 Wall Mount Screw Adapter (Optional) 12. M5x35 Product Mount Screw Chimney Bracket 13. 3.9x22 Flue Connection Plate Screw Product Instructions 14. -
Page 17: Assembly Of Your Hood
8 ASSEMBLY OF YOUR PRODUCT This is a suggested installation. All kitchens are different. If you are unsure, please consult with a trained person. Fig. 11 1. Chimney Extension 6. 2x3.9x22 Screw 2. Chimney 7. Chimney Bracket Screw 3. Bracket Screw 8. -
Page 18: Assembly Instructions
ASSEMBLY INSTRUCTIONS Mounting the hood 1. Plan where you want to mount your hood in conjunction with the installation template. Make sure you adhere to the minimum height requirement from electric or gas cook tops (Fig. 9). 2. Mark the drill points A B and C 3. -
Page 19: Assembly Of The Chimney
INSTALLATION OF THE CHIMNEY 1. Chimney Extension 2. Chimney Extension Fixing Screws 3. Chimney Cowl Bracket Fig. 12 1. Mark the position of the chimney bracket at the upmost point of where the chimney is to be sited. Your hood is provided with a chimney extension that slides up and down to provide a total height from the bottom of your hood to the top of between 655mm and 1035mm in standard form (Fig. -
Page 20: Operation
9 OPERATION Fig. 13 Fan speed 1. Press again to turn off. Fan speed 2. Press again to turn off. Digital display - shows current fan speed setting. Fan speed 3. Press again to turn off. Light on and off Pressing either of the three power settings for more than 2 seconds will initiate timer mode. -
Page 21: Replacing The Lamps
10 REPLACING THE LAMPS Lamp replacement WARNING! Disconnect the electrical supply of the hood. Leave the lamps to cool down first to avoid the risk of burning. This symbol indicates the maximum power consumption of the lamp. A lamp with same power rating should be used when replacing the lamp. -
Page 22: Authorised Service
Ensure you have inlet air. If your kitchen area is sealed without fresh air this will impair air flow. Open a window or door. If you are not satisfied with your hood, please contact Altimo Customer Care. Troubleshooting Fault description... -
Page 23: Technical Table
Specifications of the device and this manual may be modified without prior notification. 13 PRODUCT SUPPORT We want you to be happy with your hood. If you have a concern, question or need a repair please contact Altimo customer service: • Telephone 0330 041 7490 during business hours •... -
Page 24: Your Appliance Guarantee
Call the specialist Service Line for your product: 0330 041 7490 This guarantee in no way affects your statutory or legal rights. Any information provided to us for the purposes of product support is subject to our privacy policy, which can be viewed online at: www.altimo.co.uk/privacy-policy... - Page 25 For customer service call: 0330 041 7490...
