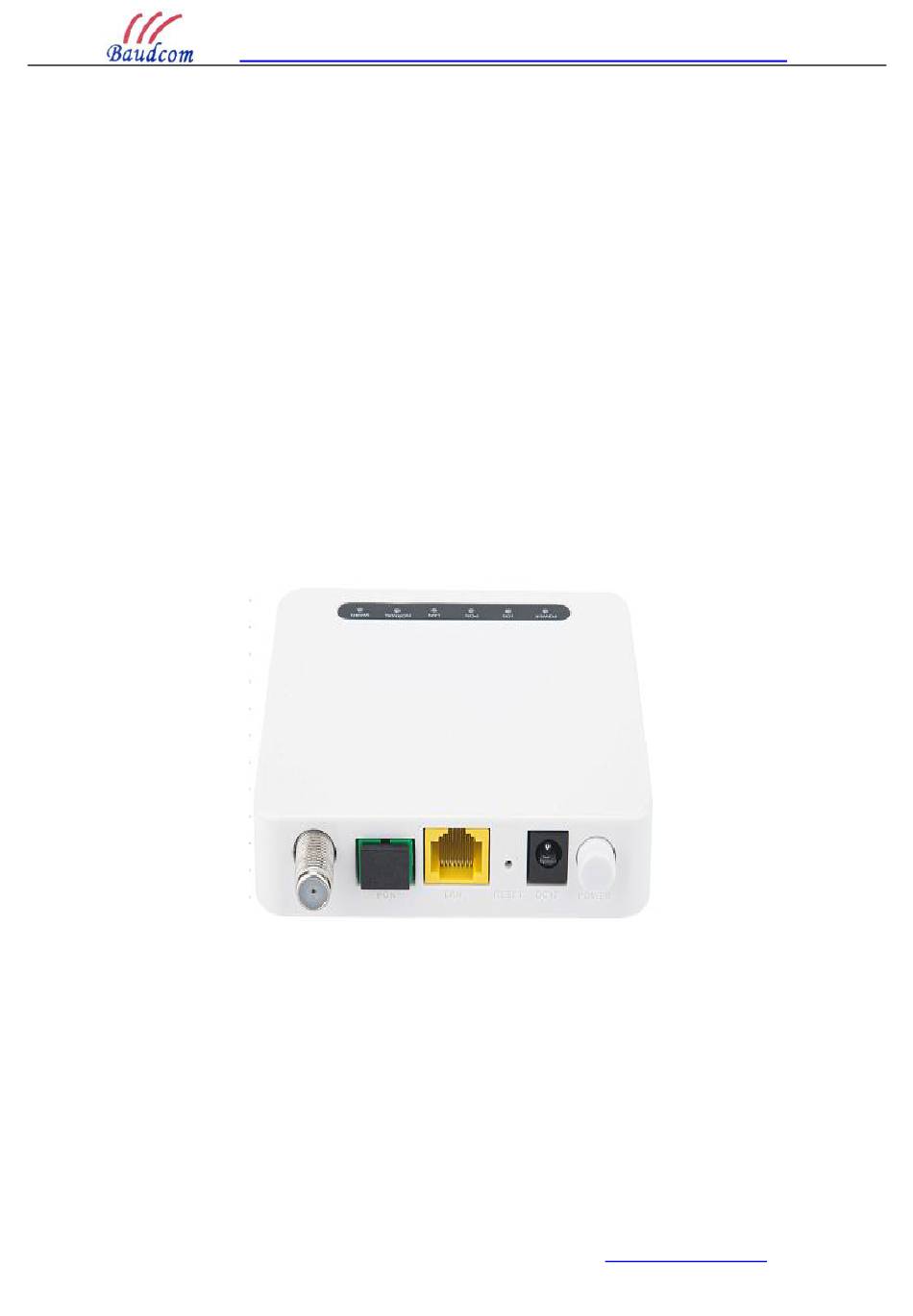

- Page 1 SHANGHAI BAUDCOM COMMUNICATION DEVICE CO.,LTD Model：BD-ONU-311RT 1GE+CATV XPON ONU User Manual Version：V1.1 Website : www.baudcom.com.cn Tel: +86 21 37709251 Email: info@baudcom.com.cn...
-
Page 2: Chapter 1: Overview

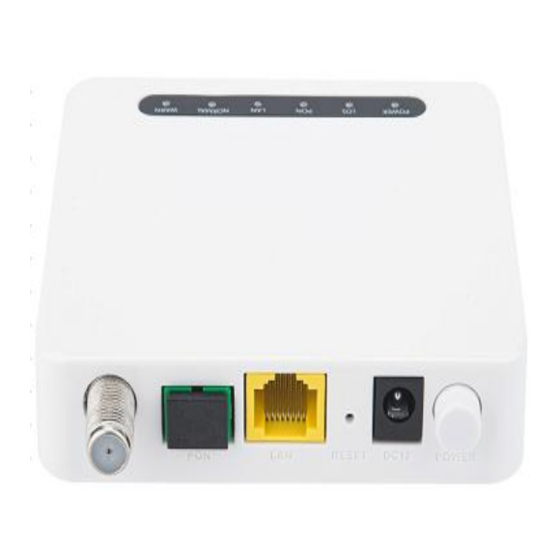

Chapter 1: Overview 1.1 Product Description BD-ONU-311RT ONU is designed as HGU(Home Gateway Unit) in different FTTH solutions, The carrier-class FTTH application provides different services access, It is based on mature and stable, cost-effective XPON Technology. XPON ONU can switch automatically with EPON and GPON mode when it access to the EPON or GPON OLT. -
Page 3: Chapter2: Installation
ONU product is a fixed configuration cassette equipment. Site equipment installation is relatively simple. Simply install the device on a specified place, connecting the upstream fiber subscriber line connections, connect the power cable. Actual operation is as follows: Website : www.baudcom.com.cn Tel: +86 21 37709251 Email: info@baudcom.com.cn... -
Page 4: Equipment List
Input optical power is higher than 2dBm or lower than -18dBm WORN Input optical power is between -18dBm and 2dBm Table 2 Panel lights on 2.3 Equipment List Contents Quantity 1pcs Power Adapter 1pcs Website : www.baudcom.com.cn Tel: +86 21 37709251 Email: info@baudcom.com.cn... -
Page 5: Chapter3: Web Management
4. Enter the router user name and password.The user name is admin. The default password is admin. The user name and password are case-sensitive.You can find the preset username and password on the device label. Figure 2 Web login 3.2Basic Configuration Website : www.baudcom.com.cn Tel: +86 21 37709251 Email: info@baudcom.com.cn... - Page 6 Admin Status: Disable/enable this WAN connection. Channel Type: Select the service use for of the WAN connection. INTERNET: This WAN connection only use for Internet service. MTU: The Maximum Transmission Unit. Website : www.baudcom.com.cn Tel: +86 21 37709251 Email: info@baudcom.com.cn...
- Page 7 Only works in bridge mode 1,NONE(SFU) 2,DHCP Server(HGU) Routing patterns 3, According to the division of network address segment, customer can change the LAN DHCP server configuration. Figure 6 Services Configuration Website : www.baudcom.com.cn Tel: +86 21 37709251 Email: info@baudcom.com.cn...
- Page 8 1. For IP/Port and Mac filtering configuration, it would be helpful in securing or restricting your local network. 3.3Admin Figure 7 Commit and Reboot Reboot: The operation to commit changes and reboot the device. Website : www.baudcom.com.cn Tel: +86 21 37709251 Email: info@baudcom.com.cn...
- Page 9 “choose file” button to select the software and click the “Upgrade” button to update. Note: During the upgrade process, please don’t power off the device .Otherwise it will make the system broken. Website : www.baudcom.com.cn Tel: +86 21 37709251 Email: info@baudcom.com.cn...
- Page 10 3. Create a WAN connection whose VLAN ID is 100. Set the channel mode to PPPoE and co nnection type to Internet Then enter the PPPoE user name and password provided by the ISP. Website : www.baudcom.com.cn Tel: +86 21 37709251 Email: info@baudcom.com.cn...
-
Page 11: Chapter4: Trouble Shooting
MA5608T(config-if-gpon-0/0)#ont port attribute 7 0 catv 1 operational-state on Chapter4: Trouble Shooting 1. After power, why are all the lights lit? Reasons: 1) Power connection errors; 2) Power is not normal. Solution: Website : www.baudcom.com.cn Tel: +86 21 37709251 Email: info@baudcom.com.cn... - Page 12 1) Power supply is not working properly; 2) The equipment from overheating. Solution: 1) Check if there is contact with abnormal voltage is too high or too low; 2) Check the ambient conditions, vents are nominal ventilation. Website : www.baudcom.com.cn Tel: +86 21 37709251 Email: info@baudcom.com.cn...
