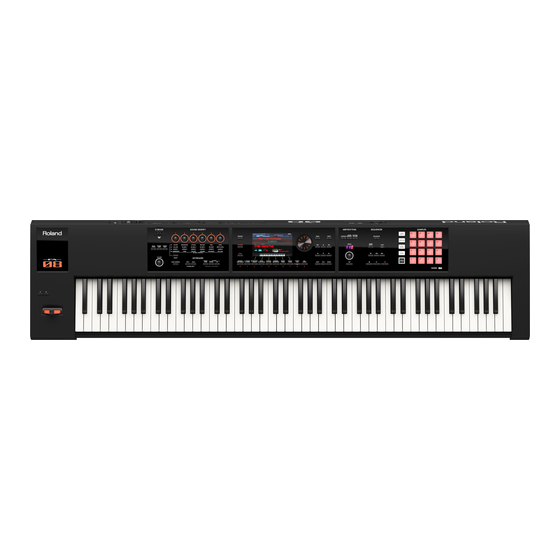

Roland FA-06 Service Notes

Hide thumbs Also See for FA-06:
Table of Contents

Advertisement

Quick Links

Feb. 2014

Table of Contents

Cautionary Notes ..............................................................2
Specifications .....................................................................2
Location of Controls (Front, Rear) ..................................4
Exploded View ..................................................................6
Plane View (1)....................................................................8
Plane View (2)....................................................................9
Plane View (3)..................................................................10
Disassembly Procedure ..................................................10
Keyboard Parts List (MSK-2).........................................11
Wiring Diagram...............................................................12
Block Diagram .................................................................14
Parts List ...........................................................................16
Verifying the Version Number......................................18
Data Backup and Restore Operations ..........................18
Performing a Factory Reset............................................18
System Update Procedure .............................................19
Test Mode .........................................................................19
Circuit Board (Main Board) ...........................................27
Circuit Diagram (Main Board: 1/7)..............................28
Circuit Diagram (Main Board: 2/7)..............................30
Circuit Diagram (Main Board: 3/7)..............................32
Circuit Diagram (Main Board: 4/7)..............................34
Copyright © 2014 Roland Corporation
All rights reserved. No part of this publication may be reproduced in any form without the written permission
of Roland Corporation.
Circuit Diagram (Main Board: 5/7) ..............................36
Circuit Diagram (Main Board: 6/7) ..............................38
Circuit Diagram (Main Board: 7/7) ..............................40
............................................................................................42
Circuit Diagram (Jack Board: 1/3)................................44
Circuit Diagram (Jack Board: 2/3)................................46
Circuit Diagram (Jack Board: 3/3)................................48
Circuit Diagram (Panel-R Board: 1/2) .........................50
Circuit Diagram (Panel-R Board: 2/2) .........................52
Circuit Diagram (MIDI Board: 1/2)..............................54
Circuit Diagram (MIDI Board: 2/2)..............................56
Circuit Diagram (LCD Board) .......................................58
Circuit Diagram (7-Seg Board) ......................................59
Panel-C Board).................................................................60
Circuit Diagram (Bender Board) ...................................61
Circuit Diagram (Encoder Board) .................................61
Circuit Diagram (Panel-L Board: 1/2)..........................62
Circuit Diagram (Panel-L Board: 2/2)..........................64
Circuit Diagram (Panel-C Board)..................................66

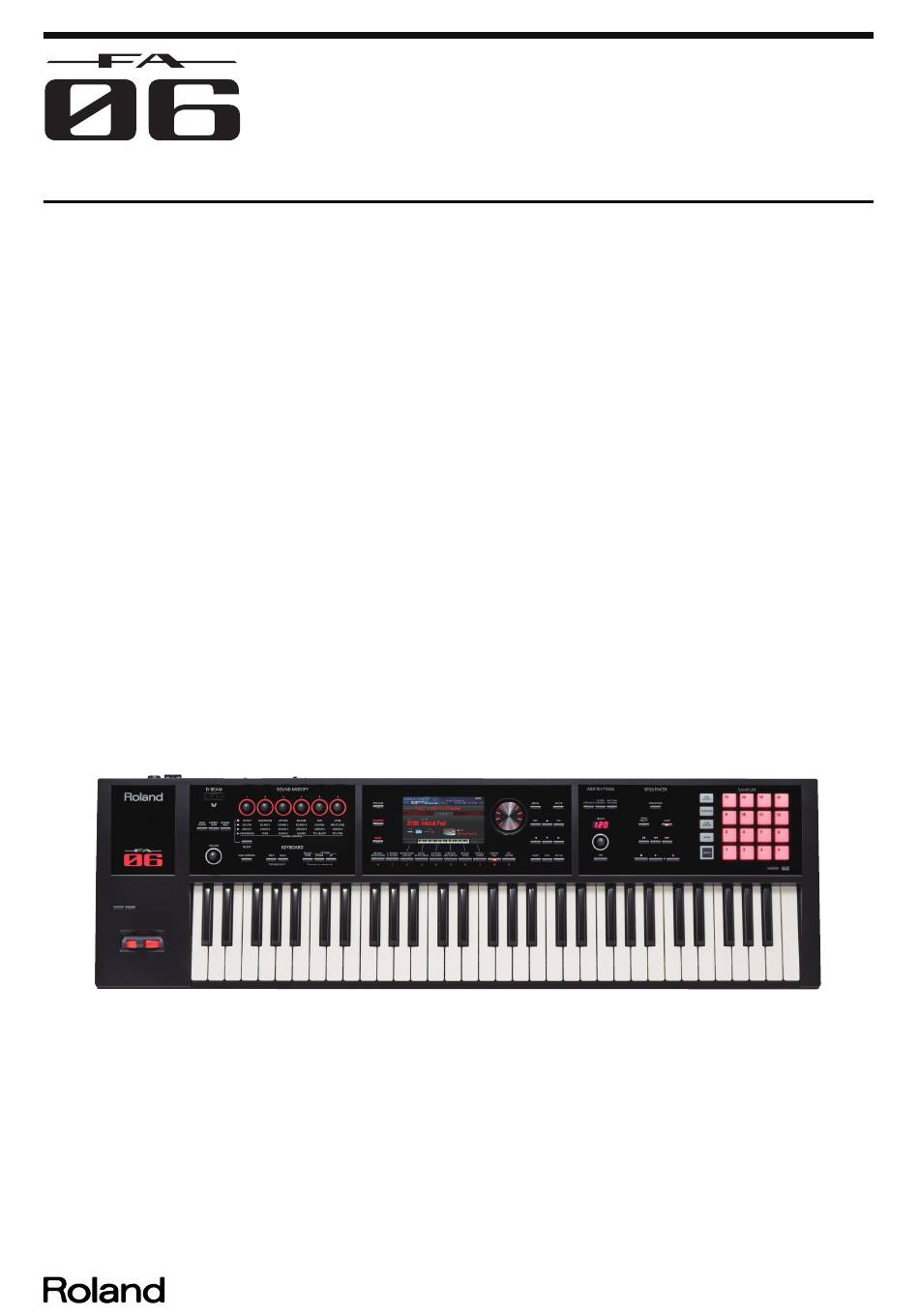

17058915E0
SERVICE NOTES
Issued by RJA
FA-06
CC-OKN
