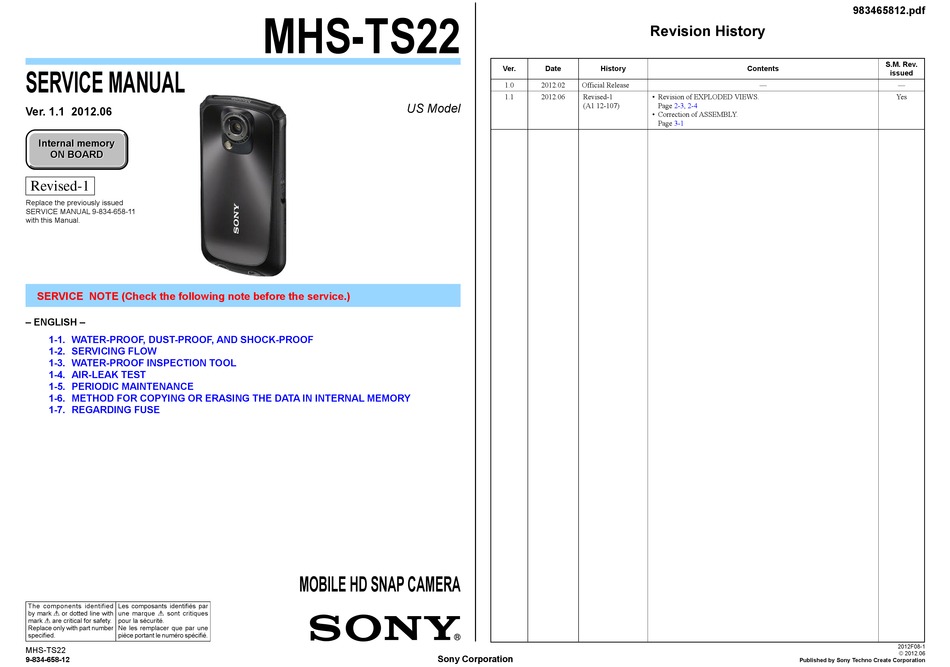

SERVICE MANUAL
Ver. 1.1 2012.06
Internal memory
Internal memory
ON BOARD
ON BOARD
Revised-1
Replace the previously issued
SERVICE MANUAL 9-834-658-11
with this Manual.
SERVICE NOTE (Check the following note before the service.)
– ENGLISH –
1-1. WATER-PROOF, DUST-PROOF, AND SHOCK-PROOF
1-2. SERVICING FLOW
1-3. WATER-PROOF INSPECTION TOOL
1-4. AIR-LEAK TEST
1-5. PERIODIC MAINTENANCE
1-6. METHOD FOR COPYING OR ERASING THE DATA IN INTERNAL MEMORY
1-7. REGARDING FUSE
The components identified
Les composants identifiés par
by mark 0 or dotted line with
une marque 0 sont critiques
mark 0 are critical for safety.
pour la sécurité.
Replace only with part number
Ne les remplacer que par une
specified.
pièce portant le numéro spécifié.
MHS-TS22
9-834-658-12
MHS-TS22
US Model
MOBILE HD SNAP CAMERA
Sony Corporation
Revision History
Ver.
Date
History
1.0
2012.02
Official Release
1.1
2012.06
Revised-1
• Revision of EXPLODED VIEWS.
(A1 12-107)
Page 2-3,
• Correction of ASSEMBLY.
Page
3-1
983465812.pdf
Contents
—
2-4
Published by Sony Techno Create Corporation
S.M. Rev.
issued
—
Yes
2012F08-1
© 2012.06
Advertisement
Table of Contents
Related Manuals for Sony MHS-TS22
Summary of Contents for Sony MHS-TS22
- Page 1 0 sont critiques mark 0 are critical for safety. pour la sécurité. Replace only with part number Ne les remplacer que par une specified. pièce portant le numéro spécifié. 2012F08-1 MHS-TS22 © 2012.06 Sony Corporation 9-834-658-12 Published by Sony Techno Create Corporation...
-
Page 2: Specifications
ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPO- CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REM- NENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS PLACER CES COMPOSANTS QUE PAR DES PIÈCES SONY DONT SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES... - Page 3 * It is displayed only when you set [Underwater Mode] to [On]. under/near water”. • Open the multi-connector cover with the camera completely dry. Closing the covers • Fully close the cover until the yellow mark under the slide Multi-connecter cover lock can no longer be seen. knob MHS-TS22...
- Page 4 Assemble after confirm that there is no dust on the Packing Cabinet. • It may cause the water leak that the adhesive paper is not attached certainly. Confirm that the there is no crinkle when attaching, there is no dust on the Packing Cabinet and perform the clamping certainly. MHS-TS22...
- Page 5 Judge by Air-leak test AIR-LEAK TESTER (COMPRESSOR TYPE) AIR-LEAK TESTER (HAND PUMP TYPE) parts. J-6082-733-A J-6082-734-A Note : Vacuum pad and hand vacuum pump are parts for repair, and they are included in air-leak tester. HAND VACUUM PUMP J-6082-734-1 MHS-TS22...
- Page 6 1. Insert the tube with vacuum pad into the right side connector, and connect the hand pump to the left side connector. 1-3-5. The Switch of Air-leak Tester (Compressor Type) Air Switch Pressure Regulator Knob Turn to the Right : Decrease in pressure Turn to the Left : Increase in pressure Open Close MHS-TS22...
-
Page 7: Air-Leak Test
Keep vacuum pad vertically by touching with finger. Do not keep pressing it to the camera. Do not touch the tube during the measurement, or measurement value may be changed. Perform the measurement under no vibration. It may cause the air-leak under the condition with vibration. MHS-TS22... -
Page 8: Periodic Maintenance
Expand the suction time for 60 seconds, and perform the measurement again. 2. Check the cabinet condition, and then perform the measurement again. 3. If there is no improvement symptom, replace the front cover sub assy and rear cover (+LCD) assy, and perform the measurement again. MHS-TS22... - Page 9 Method for Formatting the Internal Memory Format Formats the internal memory. 1 Tap [MENU] t [Format] t [OK]. Note • Note that formatting permanently erases all data. Ref. No: Part No: 1-576-913-31 Description: FUSE, MICRO (1608 TYPE) (1.6A/36V) MHS-TS22 1-7E...
-
Page 10: Repair Parts List
Back View Left View 8 Sub Board Assy Front View Right View Bottom View 2 Strap Tripod qa USB Terminal Assy 9 Battery Frame 1 Tripod Rubber 7 Lithium Battery Pack 6 Front Cover Sub Assy Link ACCESSORIES ACCESSORIES ASSEMBLY MHS-TS22... -
Page 11: Note For Repair
• When remove a connector, do not pull at wire of connector. It is possible that a wire is snapped. • When installing a connector, do not press down at wire of connector. It is possible that a wire is snapped. • Do not apply excessive load to the gilded flexible board. MHS-TS22... - Page 12 COVER (DECO), LEFT 4-422-197-01 RUBBER, TRIPOD X-2584-132-1 COVER SUB ASSY, LEFT SIDE 4-422-222-01 TP_1.4_3.8_A0.3_D2.5_SUS Claws 4-422-204-01 BUTTON, POWER 4-422-223-01 TP_1.4_2.8_A0.3_D2.5_SUS 4-422-205-01 BUTTON, SHUTTER 4-422-224-01 TP_1.7_3.5_A0.3_D3_SUS Rear Cover Front Cover (+LCD) Assy 4-422-202-01 COVER, TOP SIDE Sub Assy 4-422-203-01 COVER, LIGHT SIDE MHS-TS22...
- Page 13 #S10 4-422-229-01 TP_1.4_2.6_A0.3_D2.5_B 4-422-216-01 O RING, REAR COVER #S11 4-422-221-01 TP_1.4_2.1_A0.3_D2.5_SUS Note 4 : Refer to “Assembly-3: The Method of assembling of the 4-422-218-01 RUBBER, P BUTTON #S12 4-432-485-01 M_1.4_2_A0.3_D2.5_SUS (LOCK) USB Terminal Assy.”. X-2584-146-1 COVER (+LCD) ASSY, REAR MHS-TS22...
- Page 14 ACCESSORIES Ref. No. Part No. Description 4-277-105-01 USB connection support cable 2-050-981-01 Wrist strap 4-416-997-11 Instruction Manual (ENGLISH) * 903 4-416-997-21 Instruction Manual (FRENCH, SPANISH) MHS-TS22 2-5E...
- Page 15 USB Terminal Shaft Screw Spring USB Terminal Shaft USB Terminal Assy Projection Assembly-2: Installation Cautions of the Speaker/ Microphone/Videolight Board. Route the harnesses. Videolight Board Microphone USB Terminal Assy Speaker USB Terminal Spring USB Connector Wall USB Terminal Spring MHS-TS22 3-1E...
-
Page 16: Overall Block Diagram
USB Connector SSIO I/F Gyro Gyro EWTS9P EWTS9P GPIO I/F Tilt Sensor TS1003 Power Block LD7242 DDR I/F Power KEY NAND I/F SIO I/F Photo KEY DDR2 SDRAM eMMC EEPROM Battery USB Charge 32M x 16 128K SP70B SMB232 MHS-TS22 4-1E...
