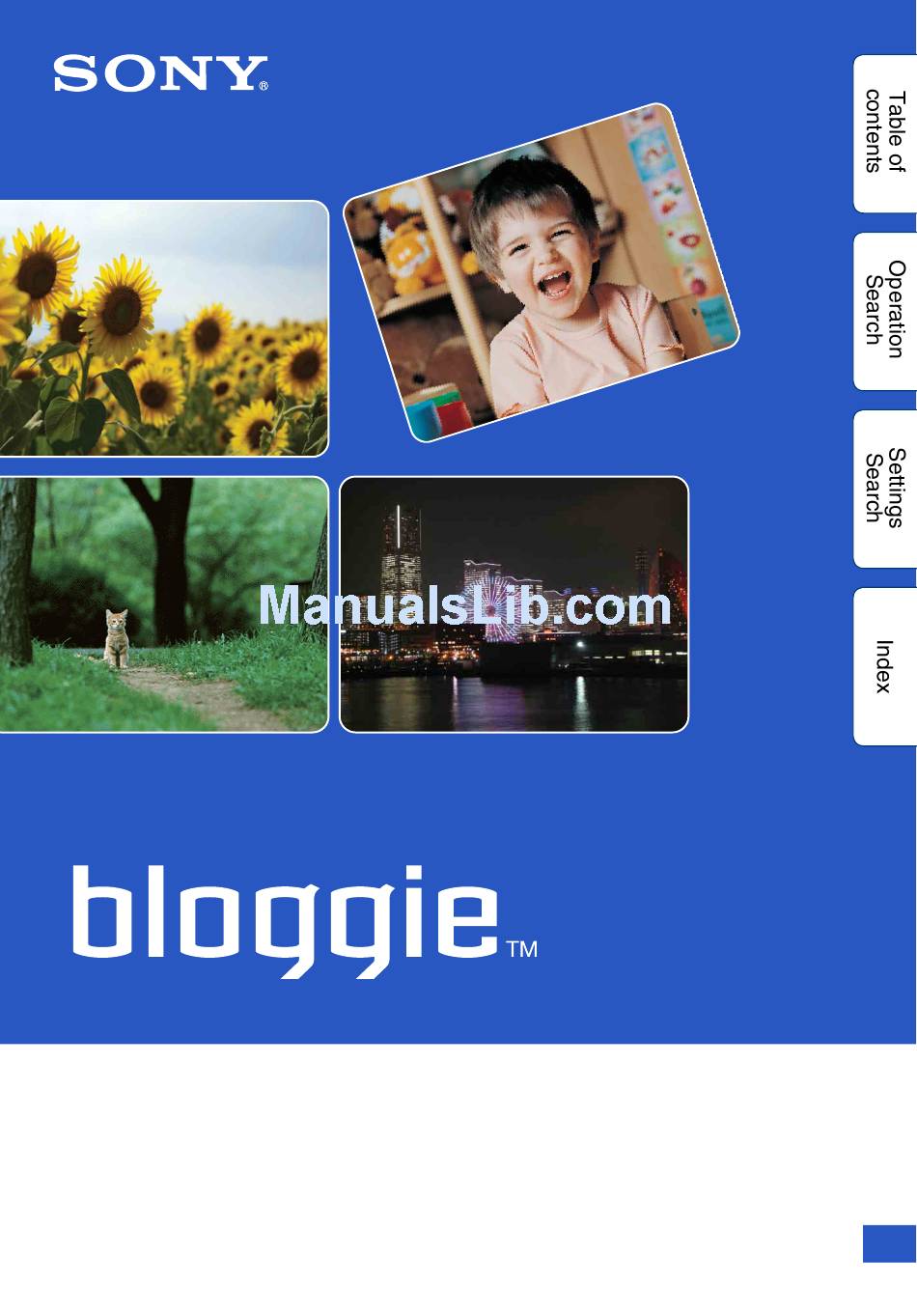

- Page 1 Handbook Mobile HD Snap Camera MHS-TS22 © 2012 Sony Corporation 4-416-996-12(1)
-
Page 2: How To Use This Handbook
How to use this handbook Click on a button on the right to jump to the corresponding page. This is convenient when searching for a function you want to view. Marks and notations used in this handbook Search for information by function. Search for information by operation. -
Page 3: Notes On Using The Camera
JEITA (Japan Electronics and Information Technology Industries Association). • Sony does not guarantee that the camera will play back images recorded or edited with other equipment, or that other equipment will play back images recorded with the camera. - Page 4 No compensation for damaged content or recording failure Sony cannot compensate for failure to record or loss or damage of recorded content due to a malfunction of the camera or recording media, etc. The images used in this handbook • The images used as examples in this handbook are reproduced images, and are not actual images shot using the camera.
- Page 5 • Faint, white, circular spots may appear in under- water flash photos due to reflections off of floating objects. This is not a malfunction. • Set [Underwater Mode] if you are concerned about the color. • If water drops or other foreign matter is present on the lens, you will be unable to record clear images.
-
Page 6: Life With "Bloggie
Life with “Bloggie” Capture your life For more active scenes Use “Bloggie Sport” to capture not only everyday scenes, but also scenes of outdoor activities, on snowy mountains, etc. At a party Record still images at maximum 5M (2592 × 1944) and movies at maximum 1920 ×... -
Page 7: Connect To Tv
Share your life Import and upload captured moments You can upload images easily and intuitively using the available software (page 26, 40). You can also choose the images and the sharing site to upload in advance (Share it Later) (page 46). Connect to TV Connect your “Bloggie”... -
Page 8: Table Of Contents
Table of contents Notes on using the camera How to use this handbook····································· 2 Notes on using the camera ··································· 3 Life with “Bloggie”·················································· 6 Operation Search ················································ 11 Settings Search··················································· 12 Identifying parts··················································· 14 List of icons displayed on the screen ·················· 15 How to hold the camera ······································... - Page 9 Viewing Viewing································································ 36 Playback zoom···················································· 38 Volume control ···················································· 39 Computer For easy set-up of Bloggie Sport, visit the web ························································ 26 Using the software to upload images ·················· 40 Recommended computer environment ··············· 41 Settings Setting items ······················································· 12 How to set items··················································...
- Page 10 Index Index ··································································· 70...
-
Page 11: Operation Search
Operation Search Shooting still images Shooting movies Changing image size Deleting images Displaying enlarged images Changing clock settings Initializing settings Viewing on TVs Marking the images to upload Adjusting the touch panel Shooting (Still images) ······································· 28 Shooting (Movies) ··············································· 30 Photo Size ·····························································... -
Page 12: Settings Search
Settings Search Setting items In the table below, indicates settings that can be changed, while – indicates settings that cannot be changed. Click an item to jump to the corresponding page. Items Image Size Self-Timer Underwater Mode Flicker Reduction Beep Language Setting Demo Mode Initialize... - Page 13 2 Tap [MENU] to display the menu screen. 3 Tap the desired item. Tap v/V to scroll the display. 4 Tap the desired settings. 5 Tap [Back].
-
Page 14: Identifying Parts
Identifying parts A Lens B Video Light C LCD screen D Speaker E Movie button F Microphone G ON/OFF (Power) button • Press and hold the ON/OFF (Power) button for at least 7 seconds to force-quit the camera. H Charge lamp (Shutter) button J Strap hole K Tripod receptacle... -
Page 15: List Of Icons Displayed On The Screen
List of icons displayed on the screen Icons are displayed on the screen to indicate the camera status. When in standby for shooting When shooting movies When playing back Buttons Display Indication Menu Zoom scaling Viewing mode Light Playback bar Back Delete Share it Later... - Page 16 Display Indication Share it Later Overheating warning 00:00:12 Counter Notes • Indicators and their positions are approximate and differ from what you actually see. • The screen display shifts both horizontally and vertically depending on the camera aspect. • The screen display disappears automatically after about 5 seconds.
-
Page 17: How To Hold The Camera
How to hold the camera Be careful not to block the lens or microphone with your finger when shooting. Do not hold the Built-in USB arm or multi-connector cover. Attach the strap and place your hand through its loop to prevent the camera from sinking or damage by being dropped. - Page 18 Holding the camera vertically when you shoot movies Portrait images are recorded. Black bands appear on the left and right of the screen during playback on TV or computer. This is useful when shooting portrait objects.
-
Page 19: How To Use The Touch Panel
How to use the touch panel You can operate the camera or set the settings by tapping buttons on the LCD screen of the camera. Note • Do not operate with a sharp-pointed object, such as pen or finger nail. Select the items Tap the buttons or items on the screen with your finger. - Page 20 Display the next screen on the LCD screen.
-
Page 21: Checking The Accessories Supplied
Checking the accessories supplied • USB connection support cable (1) (Sony Corporation 4-277-105-) Use this if Built-in USB arm of the camera cannot be connected to the computer (page 22). • Wrist strap (1) • Instruction Manual (1) • Important Notice (1) •... -
Page 22: Charging The Camera
Charging the camera The camera’s battery is continuously charged whenever the camera is connected to a running computer. 1 Press the ON/OFF (Power) button to turn off the camera. 2 Slide the multi-connector cover knob in the direction of the arrow as illustrated and open the multi-connector cover. - Page 23 5 When charging is finished, disconnect the USB connection between the camera and computer (page 23). Notes • While the camera is connected to a computer, you cannot operate the camera. Be sure to disconnect the camera before operation. • Do not apply force to the camera, when you connect the camera to a computer. This may cause damage to the camera or the computer.
- Page 24 To retract the Built-in USB arm Push Built-in USB arm back in the direction of the arrow until it clicks. • To tightly close the multi-connector cover, close the multi-connector cover and slide the multi-connector cover knob to lock. Continued r...
-
Page 25: Checking The Remaining Battery Charge
How long does it take to charge the camera? Charging time Full charge time Computer AC-UD20* (sold separately) • Time required to charge a fully depleted battery at a temperature of 25°C (77°F). Charging may take longer under certain circumstances or conditions. •... -
Page 26: For Easy Set-Up Of Bloggie Sport
2 Access the website: http://www.sony.net/start/bloggie. * Double-click [Computer] (in Windows XP, [My Computer]) t [START] t [Start_Bloggie]. 3 Install the software and register to a share service by Sony, from the website. – Software: Install the software on your computer to manage and upload images with a simple, integrated interface. -
Page 27: Setting The Language And Clock
Setting the language and clock 1 Press the ON/OFF (Power) button. The camera is turned on. The demonstration movie plays back when you turn on the camera for the first time. 2 Select the desired language, then tap [Next]. 3 Select the desired date display format, then tap [Next]. -
Page 28: Shooting (Still Images)
Shooting (Still images) 1 Press the ON/OFF (Power) button. 2 Compose the shot. Be sure not to place fingers on the lens. Touch and hold T on the T/W (zoom) bar to zoom in, W to zoom out. 3 Press the (Shutter) button halfway down. - Page 29 If you shoot a still image of a subject that is difficult to focus on • The shortest shooting distance is approximately 10 cm (4 inches). • If the camera cannot focus on a subject automatically, the AE/AF lock indicator changes to slow flashing and the beep does not sound.
-
Page 30: Shooting (Movies)
Shooting (Movies) 1 Press the ON/OFF (Power) button. 2 Compose the shot. Be sure not to place fingers on the lens. Touch and hold T on the T/W (zoom) bar to zoom in, W to zoom out. 3 Press the movie button. Press the movie button again to finish shooting the movie. -
Page 31: This Camera
To shoot still images during movie recording • Press the (Shutter) button fully down during movie recording. • The recorded still image appears small on the LCD screen of the camera. • The still image sizes are as follows, depending on the movie size. –... -
Page 32: Zoom
Zoom You can enlarge the image when shooting. The camera’s zoom function can enlarge images up to 4 times. 1 Touch and hold T or W. Touch and hold T to zoom in, W to zoom out. Notes • Only Digital zoom is available with this camera. •... -
Page 33: Light
Light You can shoot with the light of the camera turned on. 1 Press on the shooting screen. To turn off the light, press again. Notes • You can use the light in shooting mode only. • The camera emits very bright light. Do not aim directly at eyes at close range. •... -
Page 34: Self-Timer
Self-Timer 1 Tap [MENU] t [Self-Timer]. Tap the LCD screen when the screen display is not shown. 2 Select the desired mode from [Self-Timer]. (Off) Does not use the self-timer. (10sec) Sets the 10-seconds delay self-timer. When you press the timer icon flashes, and after rapid beep sounds are heard, the camera will shoot. -
Page 35: Underwater Mode
Underwater Mode 1 Tap [MENU] t [Underwater Mode] t [On Tap the LCD screen when the screen display is not shown. 2 Check the message on the LCD screen, then tap [OK]. To cancel the [Underwater Mode] Tap [MENU] t [Underwater Mode] t [Off]. -
Page 36: Viewing
Viewing 1 Tap (Playback) to switch to playback mode. The index screen appears. 2 Select an image and tap. A single movie plays back when an image is selected. To show the previous/next images Press Press for the movies while playback is paused. Fast forward/Fast rewind the movie Press during playback of the movie. - Page 37 To go back to the shooting screen Do one of the following: – Tap on the index screen. – Press the (Shutter) button or movie button. To go back to the index screen (Shutter) button Movie button...
-
Page 38: Playback Zoom
Playback zoom Enlarges the played back still images. 1 Tap (Playback) to switch to playback mode. 2 Select the still image and tap. 3 Double-tap to enlarge. 4 Adjust the magnification and the part to enlarge. Each double-tap on the LCD screen enlarges the image up to 8 times its original size. -
Page 39: Volume Control
Volume control You can adjust the volume for playback movies. 1 Tap (Playback) to switch to playback mode. 2 Select a movie and tap. 3 Tap (Volume control). Tap the LCD screen when the screen display is not shown. 4 Touch and hold to increase, the volume. -
Page 40: Using The Software To Upload Images
• To view a website, you will be redirected to it by the Sony server. There may be times when you cannot access the website because of server maintenance or for other reasons. -
Page 41: Recommended Computer Environment
Recommended computer environment See page 26 for installing the software. Windows The following computer environment is recommended when using the “PlayMemories Home”, and importing images via a USB connection. OS (pre-installed) Others 64-bit editions and Starter (Edition) are not supported. Starter (Edition) is not supported. -
Page 42: Photo Size
Photo Size The photo size determines the size of the image file that is recorded when you take an image. The larger the photo size, the more detail will be reproduced when the image is printed on large- format paper. The smaller the photo size, the more images can be recorded. 1 Tap [MENU] t [Image Size]. - Page 43 On “image quality” and “image size” A digital image is made up of a collection of small dots called pixels. If it contains a large number of pixels, the image becomes large, it takes up more memory, and the image is displayed in fine detail. “Image size” is shown by the number of pixels. Although you cannot see the differences on the screen of the camera, the fine detail and data processing time differ when the image is printed or displayed on a computer screen.
-
Page 44: Movie Size
Movie Size The larger the movie size, the higher the movie quality. The movies shot with the camera will be recorded in MPEG-4 AVC/H.264 Main Profile, approximately 30 or 60 frames per second, Progressive, AAC LC, “MP4 format”. 1 Tap [MENU] t [Image Size]. Tap the LCD screen when the screen display is not shown. -
Page 45: Delete
Delete Allows you to select unwanted images for deletion. 1 Tap (Playback) to switch to playback mode. 2 Tap (Delete) on the index screen. 3 Tap the center of the images you want to delete. Repeat the above step until there are no more images to be deleted. -
Page 46: Share It Later
Share it Later “Share-it-Later” lets you register images in Bloggie for faster and easier uploading at a later time. Reserve for sharing immediately after taking images. 1 Tap (Share) on the screen after taking the image. 2 Select the service to share, then tap [OK]. Batch together and share later. -
Page 47: Flicker Reduction
Flicker Reduction Curbs the flicker generated by fluorescent by using the electro-shutter. 1 Tap [MENU] t [Flicker Reduction] t desired mode Tap the LCD screen when the screen display is not shown. Uses the Flicker Reduction. Does not use the Flicker Reduction. - Page 48 Beep Sets the sound for when you operate the camera. 1 Tap [MENU] t [Beep] t desired mode. Turns on the beep sound when you press the the movie button. Turns off the beep sound. (Shutter) button or...
-
Page 49: Language Setting
Language Setting Selects the language to be used in the menu items, warnings and messages. 1 Tap [MENU] t [Language Setting] t desired language. -
Page 50: Demo Mode
Demo Mode Performs a demonstration of the camera. 1 Tap [MENU] t [Demo Mode] t desired mode. Performs a demonstration. Does not perform a demonstration. Note • The demonstration stops when operating any of the following. – Touch LCD screen. –... -
Page 51: Calibration
Calibration When you tap a button on the touch panel, if a different button responds or does not work as expected, perform the calibration 1 Tap [MENU] t [Calibration]. 2 Tap the center of the Notes • If you cancel the calibration by tapping [Cancel], the calibration is not made. •... -
Page 52: Initialize
Initialize Initializes the setting to the default setting. Even if you execute this function, the images are retained. 1 Tap [MENU] t [Initialize] t [OK]. Note • Perform initialization after charging the camera to prevent the camera from turning off during the process. - Page 53 LUN Settings(USB) Sets the display method for the recording media displayed on a computer screen or other monitor when the camera is connected with a computer or AV component using a USB connection. 1 Tap [MENU] t [LUN Settings(USB)] t desired mode.
-
Page 54: Hdmi Output
HDMI Output Selects the type of signal to be output to a TV from the HDMI OUT jack. If images are not displayed on the TV clearly, changing the setting may improve the display. 1 Tap [MENU] t [HDMI Output] t desired mode. 60Hz Outputs with 60Hz. -
Page 55: Format
Format Formats the internal memory. 1 Tap [MENU] t [Format] t [OK]. Note • Note that formatting permanently erases all data. -
Page 56: Date & Time Setting
Date & Time Setting Sets the date and time again. 1 Tap [MENU] t [Date & Time Setting]. 2 Tap the items you want to set. Date & Time Format Selects the date and time display format. Daylight Savings Pushes forward an hour. Date &... -
Page 57: Viewing Images On A Tv
Viewing images on a TV Connect the camera to a TV which has an HDMI jack with an HDMI cable (sold separately). Refer also to the instruction manuals of the TV. 1 Turn off both the camera and the TV. 2 Open the multi-connector cover and connect the camera to the TV with the HDMI cable (sold separately). -
Page 58: On Tv Color Systems
On TV color systems If you want to view images on a TV screen, you need a TV with an HDMI jack and an HDMI cable (sold separately). The color system of the TV must match that of the camera. Check the following lists for the TV color system of the country or region where the camera is used, and set [HDMI Output] (page 54). -
Page 59: Troubleshooting
Then turn the camera on again (page 14). 4 Consult your Sony dealer or local authorized Sony service facility. Be aware that by sending the camera for repair, you give consent that the contents of the internal memory, music files may be checked. -
Page 60: Viewing Images
• A discrepancy arose between the remaining charge indicator and the actual remaining battery charge. Fully discharge the battery pack once, then charge it to correct the indication. • The battery pack is dead (page 66). Consult your nearest Sony dealer. Shooting still images/movies Cannot record images. - Page 61 The top and bottom edges of images are trimmed slightly on a connected TV. • The LCD screen of the camera can display recording images across the entire screen (full pixel display). However, this may cause slight trimming of the top, bottom, right, and left edges of images when played back on a TV that is not compatible with full pixel display.
- Page 62 Others The camera does not work properly. • Press and hold the ON/OFF (Power) button for at least 7 seconds, and force-quit the camera. Then turn the camera on again. The lens gets fogged. • Moisture condensation has occurred. Turn off the camera and wait about an hour for the moisture to evaporate.
-
Page 63: Warning Indicators And Messages
Warning indicators and messages If the following messages appear, follow the instructions. • The battery level is low. Charge the battery pack immediately. Depending on the conditions of use, the indicator may flash even though there are still 5 to 10 minutes of remaining battery time left. System error •... - Page 64 Maximum number of images already selected • Up to 100 files can be selected when using [Delete] and [Share]. Operation cannot be executed for movie files • Playback zoom cannot be performed on movies. Invalid operation • This message appears if you perform an invalid operation.
-
Page 65: Number Of Still Images And Recordable Time Of
Number of still images and recordable time of movies The number of still images and recordable time may vary depending on the shooting conditions. Still images (Units: Images) Size Capacity 1335 3.1M 2945 0.4M 16416 Notes • When the number of remaining recordable images is greater than 9,999, the “>9999” indicator appears. •... -
Page 66: Built-In Battery Pack
• The battery life is limited. Battery capacity decreases over time and through repeated use. If decreased usage time between charges becomes significant, consult your nearest Sony dealer. • The battery life varies according to how it is stored and the operating conditions and environment in... -
Page 67: Precautions
Precautions Do not use/store the camera in the following places • In an extremely hot, cold or humid place In places such as in a car parked in the sun, the camera body may become deformed and this may cause a malfunction. -
Page 68: Specifications
Specifications Camera [System] Image device: 4.5 mm (1/4 type) CMOS sensor Total pixel number of camera: Approx. 5 110 000 pixels Effective pixel number of camera: Approx. 3 110 000 pixels (still image, 16:9), Approx. 5 030 000 pixels (still image, 4:3), Approx. - Page 69 • “Bloggie” is a trademark of Sony Corporation. • “ ” and “PlayStation” are registered trademarks of Sony Computer Entertainment Inc.. • HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
- Page 70 Index Battery pack ...66 Beep ...48 Calibration ...51 Charging ...22 Clock Settings ...27 Computer Recommended environment ...41 Uploading images ...40 Date & Time Setting ...56 Daylight Savings ...56 Delete ...45 Demo Mode ...50 Flicker Reduction ...47 Format ...55 HDMI OUT jack ...57 HDMI Output ...54...
