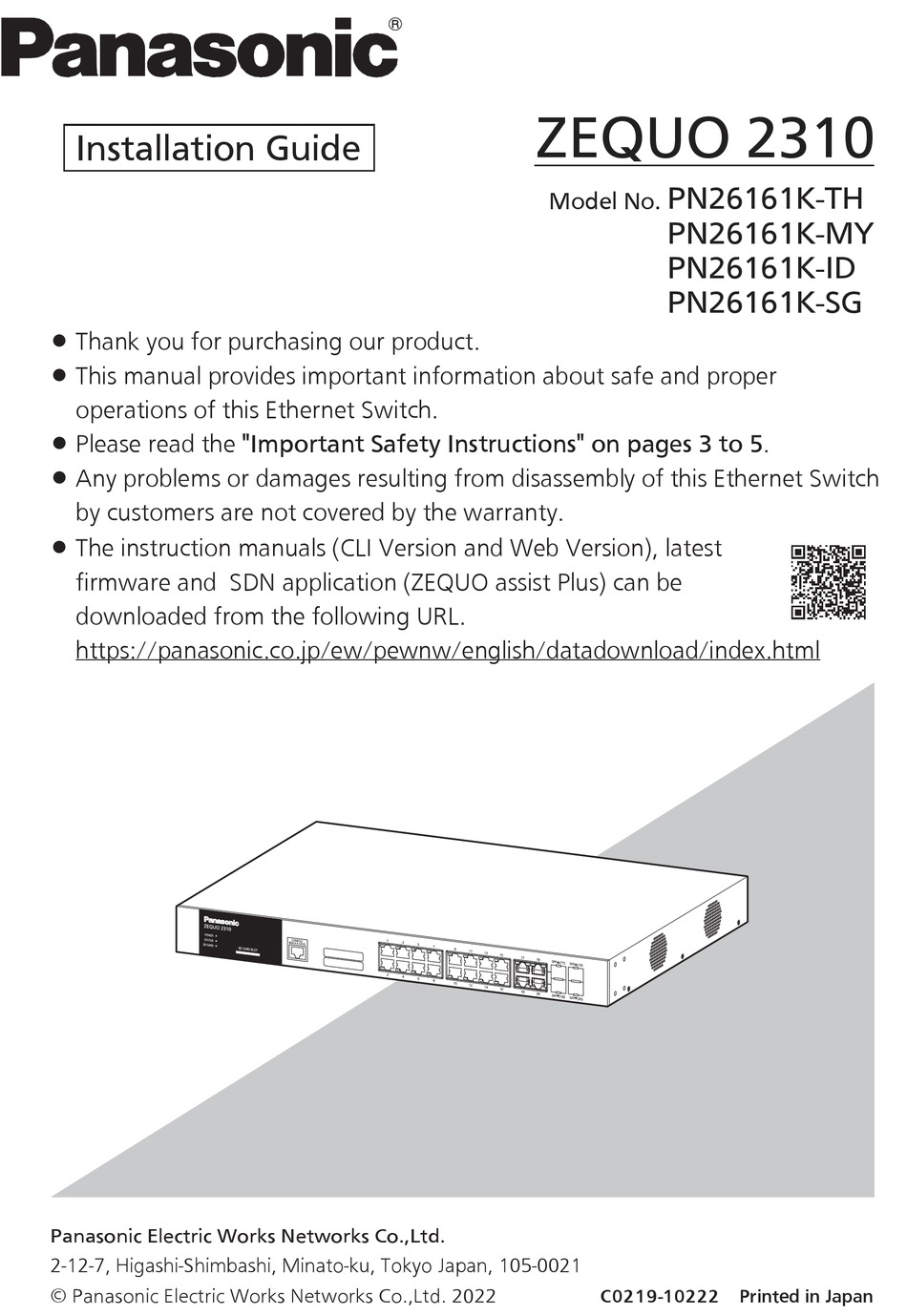

Installation Guide
Thank you for purchasing our product.
This manual provides important information about safe and proper
operations of this Ethernet Switch.
Please read the "Important Safety Instructions" on pages 3 to 5.
Any problems or damages resulting from disassembly of this Ethernet Switch
by customers are not covered by the warranty.
The instruction manuals (CLI Version and Web Version), latest
firmware and SDN application (ZEQUO assist Plus) can be
downloaded from the following URL.
https://panasonic.co.jp/ew/pewnw/english/datadownload/index.html
Panasonic Electric Works Networks Co.,Ltd.
2-12-7, Higashi-Shimbashi, Minato-ku, Tokyo Japan, 105-0021
©
Panasonic Electric Works Networks Co.,Ltd. 2022
ZEQUO 2310
PN26161K-TH
Model No.
PN26161K-MY
PN26161K-ID
PN26161K-SG
C0219-10222
Printed in Japan
Advertisement
Table of Contents
Related Manuals for Panasonic ZEQUO 2310
Summary of Contents for Panasonic ZEQUO 2310
- Page 1 The instruction manuals (CLI Version and Web Version), latest firmware and SDN application (ZEQUO assist Plus) can be downloaded from the following URL. https://panasonic.co.jp/ew/pewnw/english/datadownload/index.html Panasonic Electric Works Networks Co.,Ltd. 2-12-7, Higashi-Shimbashi, Minato-ku, Tokyo Japan, 105-0021 © Panasonic Electric Works Networks Co.,Ltd. 2022 C0219-10222 Printed in Japan...
-
Page 2: Table Of Contents
Contents Important Safety Instructions Basic Instructions for the Use of This Product 1. Product Outline 1.1 Features 1.2 Specifications 1.3 Accessories 1.4 Basic operation 2. Part Names and Functions 3. Installation and Configuration 3.1 Grounding Cable Connection 3.2 Installing on level shelves 3.3 Mounting to rack 3.4 Configuration of IP address (Basic) Troubleshooting... -
Page 3: Important Safety Instructions
Important Safety Instructions This chapter contains important safety instructions for preventing bodily injury and/or property damage. Please read carefully, and follow them at all times. Severity of bodily injury and/or property damage, which could result from incorrect use of the Ethernet Switch, are explained below. WARNING This symbol indicates a potential hazard that could result in serious injury or death. - Page 4 CAUTION Do not connect any other devices except for 10BASE-T/100BASE-TX/1000BASE-T devices to the twisted pair ports. Deviation could lead to equipment failure. Do not insert any other modules except for our optional SFP module (PN54022/PN54024) to the SFP extension slots. Check out our website for the latest information on supported SFP modules.
- Page 5 CAUTION Check whether the optical fiber cable connectors are contaminated with dust, etc. This might cause the optical signal to not be transmitted normally, and cause misoperations and malfunctions. If they are contaminated, make sure to clean them off, then connect them to the optical fiber ports. This Ethernet Switch is to be periodically serviced in order to maintain its ...
-
Page 6: Basic Instructions For The Use Of This Product
Select the appropriate cables and lay them. Communications might be affected by how the cables are laid, and environmental noise. 1. Please note that Panasonic shall not bear any liability whatsoever for any damages (this shall include, but is not limited to, lost earnings, lost opportunities, etc.) -
Page 7: Product Outline
Product Outline The ZEQUO 2310 is a Layer 2 all giga Ethernet Switch equipped with management functions that has 20 10/100/1000BASE-T ports and 4 SFP expansion ports. 1.1 Features Ports 1 to 20 are 10BASE-T/100BASE-TX/1000BASE-T ports corresponding to autonegotiation. -
Page 8: Specifications
Product Outline 1.2 Specifications Interface Twisted pair ports 1–20: RJ45 connector Transmission system: IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T SFP extension slots 17-20 Transmission system: IEEE802.3z 1000BASE-SX/1000BASE-LX SFF-8472 (DMI: Diagnostic Monitoring Interface) * Select ether of RJ45 or SFP for use. SD card slot: SD/SDHC, 128MB-32GB Console port: RJ45 connector RS-232C (ITU-TS V.24) -
Page 9: Accessories
1.3 Accessories Please be sure to confirm the content. Please contact our distributor if any of the contents are insufficient. Quantity Installation Guide (this document) 1 (*) Rubber foot Mounting bracket (for 19-inch rack) Screw (for 19-inch rack) ... -
Page 10: Basic Operation
Port LED lights up. When the terminal is not operating normally, for example when power is not supplied to the terminal, the Port LED does not light up. For configuration and management method, please see the PDF version Operating Instructions on Panasonic’s website. -
Page 11: Part Names And Functions
Power cord hook block MAC Address label AC 100-240V Back panel Serial number label Ground terminal 10BASE-T/100BASE-TX/1000BASE-T port MAC Address label SFP▲(17) SFP▲(19) ZEQUO 2310 Front panel CONSOLE 9600.N.8.1(DTE) POWER STATUS SD CARD SLOT SD CARD SFP▼(18) SFP▼(20) SD card slot... - Page 12 Part Names and Functions POWER LED Port LED SFP▲(17) SFP▲(19) ZEQUO 2310 CONSOLE 9600.N.8.1(DTE) POWER STATUS SD CARD SLOT SD CARD SFP▼(18) SFP▼(20) POWER LED (Power) Green Light : Power is ON. : Power is OFF. Or, an internal power fault.
-
Page 13: Installation And Configuration
Installation and Configuration 3.1 Grounding Cable Connection The chassis of the equipment must be grounded properly so that the lightning can flow to the ground, which improves the capability of the chassis for resisting the electromagnetic interference. 1. Ensure that the grounding cable is connected correctly so that the equipment is protected against lightning and interference. -
Page 14: Installing On Level Shelves
Installation and Configuration 3.2 Installing on level shelves (1) Apply the supplied rubber feet onto the bottom surface of the unit. (2) Install in a level area. Caution Bottom surface - Do not stack and use. Set up with a clearance of 20 mm or more. -
Page 15: Configuration Of Ip Address (Basic)
3.4 Configuration of IP address (Basic) (1) Connect this Ethernet Switch and PC with a RJ45–DSub 9-pin console cable and start up the terminal emulator (ZEQUO assist Plus, etc.). (2) Pressing Enter key 1 time opens Login screen. Enter UserName and Password (the default is "manager"... - Page 16 Installation and Configuration For detailed settings and administration methods, please see the PDF version of the Operating Instructions on Panasonic’s website. - Detailed configuration and management methods using the CLI. - Configuration and management method from ZEQUO assist Plus.
-
Page 17: Troubleshooting
Troubleshooting If you find any problem, please take the following steps to check. LED The POWER LED (Power) is not lit. Is the power plug connected? Check that the power plug is firmly connected, so the connection is not loose at the power port. - Page 18 * Please refer to the instruction manual on the ZEQUO assist Plus the PDF version Operating Instructions in CD-ROM. on Panasonic’s website in regard to settings and management methods.
