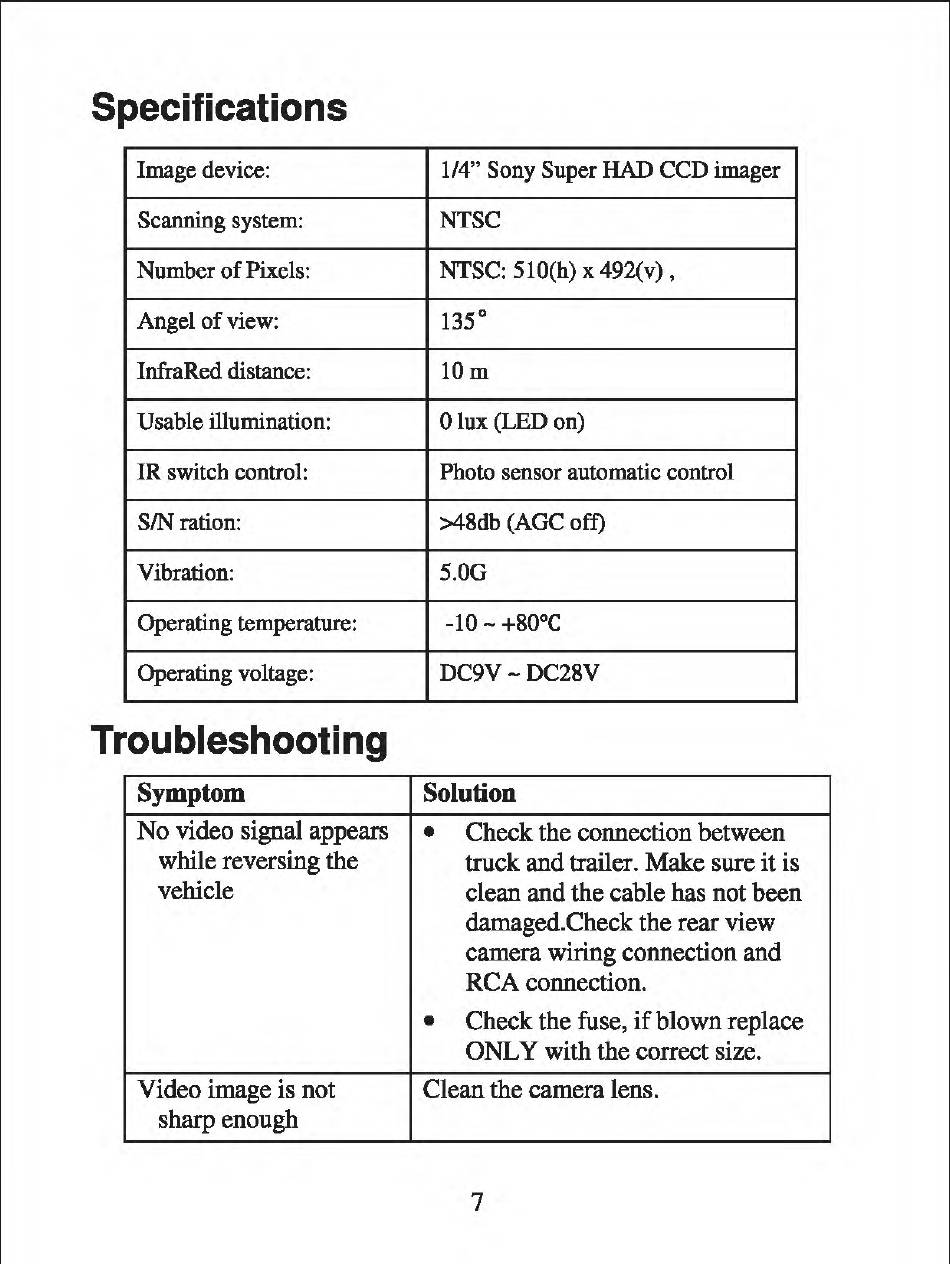

Specifications
Image device:
114" Sony Super HAD CCD imager
Scanning system: NTSC
Number of Pixels: NTSC: SlO(h) x 492(v),
Angel of view:
135°
InfraRed distance: 10m
Usable illumination: 0 lux (LED on)
IR switch control: Photo sensor automatic control
SIN ration:
>48db (AGC oft)
Vibration: S.OG
Operating temperature:
-10- +80°C
Operating voltage: DC9V -DC28V
Troubleshooting
Symptom Solution
No video signal appears
•
Check the connection between
while reversing the
truck and trailer. Make sure it is
vehicle
clean and the cable has not been
damaged.Check the rear view
camera wiring connection and
RCA connection.
•
Check the fuse, if blown replace
ONLY
with the correct size.
Video image is not Clean the camera lens.
sharp enough
7
