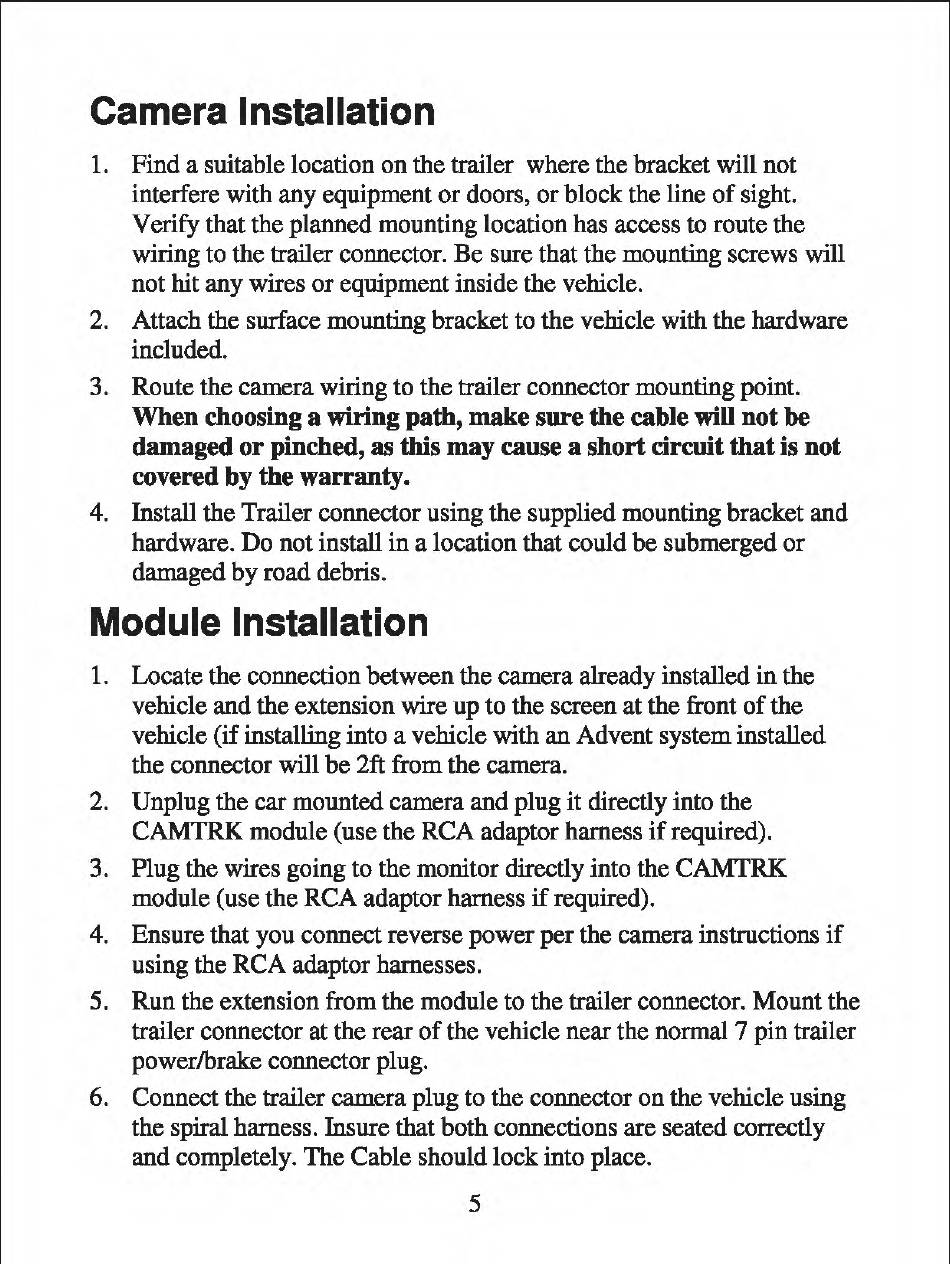

Camera Installation
1. Find a suitable location on the trailer where the bracket will not
interfere with any equipment or doors, or block the line of sight.
Verify that the planned mounting location has access to route the
wiring to the trailer connector. Be sure that the mounting screws will
not hit any wires or equipment inside the vehicle.
2. Attach the surface mounting bracket to the vehicle with the hardware
included.
3. Route the camera wiring to the trailer connector mounting point.
When choosing a wiring path, make sure the cable wiD not be
damaged or pinched, as this may cause a short circuit that is not
covered by the warranty.
4. Install the Trailer connector using the supplied mounting bracket and
hardware. Do not install in a location that could be submerged or
damaged by road debris.
Module Installation
1. Locate the connection between the camera already installed in the
vehicle and the extension wire up to the screen at the front of the
vehicle (if installing into a vehicle with an Advent system installed
the connector will be 2ft from the camera.
2. Unplug the car mounted camera and plug it directly into the
CAMTRK module (use the RCA adaptor harness if required).
3. Plug the wires going to the monitor directly into the CAMTRK
module (use the RCA adaptor harness if required).
4. Ensure that you connect reverse power per the camera instructions if
using the RCA adaptor harnesses.
5.
Run the extension from the module to the trailer connector. Mount the
trailer connector at the rear of the vehicle near the normal 7 pin trailer
power/brake connector plug.
6. Connect the trailer camera plug to the connector on the vehicle using
the spiral harness. Insure that both connections are seated correctly
and completely. The Cable should lock into place.
