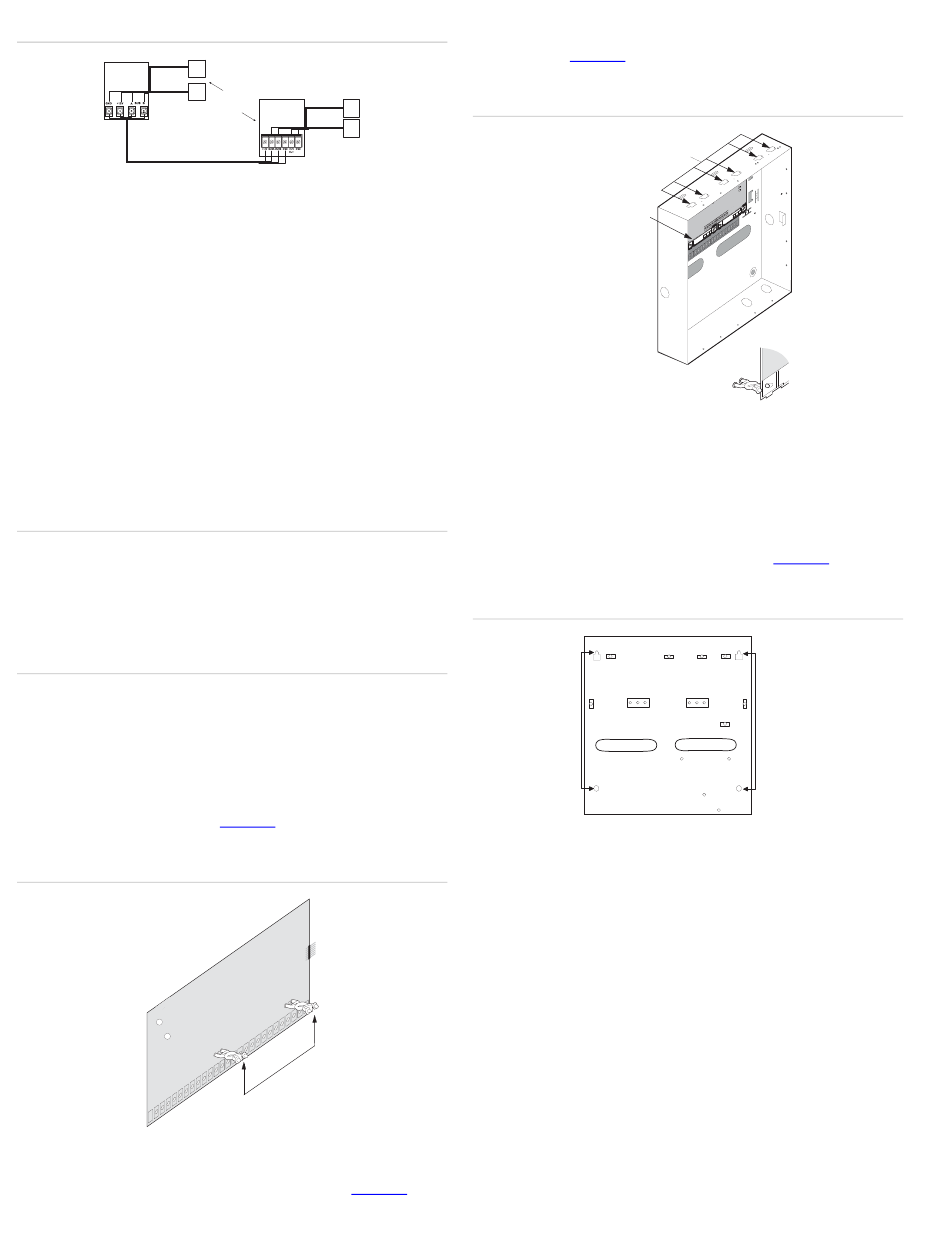

Interlogix SuperBus 2000 Installation Instructions page 2

Figure 2. Bus device wiring example for remote partitions
Panel
Tools and supplies
• 12 V backup battery (4.5 Ah part no. 60-681 or 7 Ah part
no. 60-680)
• Screwdrivers
• Separate enclosure—if not mounting power supply inside
panel cabinet
• Mounting screws
• Support Standoffs (included with panel)
• 4-conductor, 22- or 18-gauge stranded wire
• 2-conductor, 18-gauge wire (for AC transformer)
Mounting
Caution: To prevent damaging the panel or power supply,
remove the panel AC power transformer and disconnect the
backup battery before installation.
You must be free of static electricity before handling circuit
boards. Wear a grounding strap or touch a bare metal surface
to discharge static electricity.
Mounting inside panel cabinet
1. Unplug the panel AC power transformer and disconnect
the backup battery.
2. Install the support standoffs (included with panel) at the
panel locations shown in
Figure 3. Installing panel support standoffs
4. Slide the top of the backplates onto the left and center
module mounting clips on the panel cabinet
2
Bus devices
connected to
power supply
Bus devices
connected to
Power
panel
supply
Figure 3.
(Figure
then snap the backplates on to the support standoffs
(Detail in Figure
Figure 4. Mounting power supply inside panel cabinet
Mounting inside Concord residential enclosure
1. Unplug the panel AC power transformer and disconnect
the backup battery.
2. Place the cabinet at the desired location and mark the
cabinet mounting holes and knockouts
Figure 5. Residential enclosure mounting holes and knockouts
3. Drill holes and insert the appropriate anchors where studs
are not present.
4. Run wires from all devices to be powered, to the power
supply.
5. Run a 4-conductor, 22-gauge or larger stranded wire from
the power supply to the panel.
6. Run a 2-conductor, 18-gauge stranded wire from the
power supply to the AC transformer location.
7. Feed all wires through the knockouts and secure the
cabinet to the wall with the included screws.
8. Remove the power supply circuit board from the plastic
mounting plates.
4),
SuperBus 2000 2-Amp Power Supply 600-1019 Installation Instructions
4).
Mounting
Clips
Power Supply
on Backplates
Detail
Cabinet
Mounting
Holes (4)
Knockout
Knockout
(Figure 5).
