Behringer EUROLIVE B205D Service Bulletin

Loudspeaker Systems
EUROLIVE
B205D

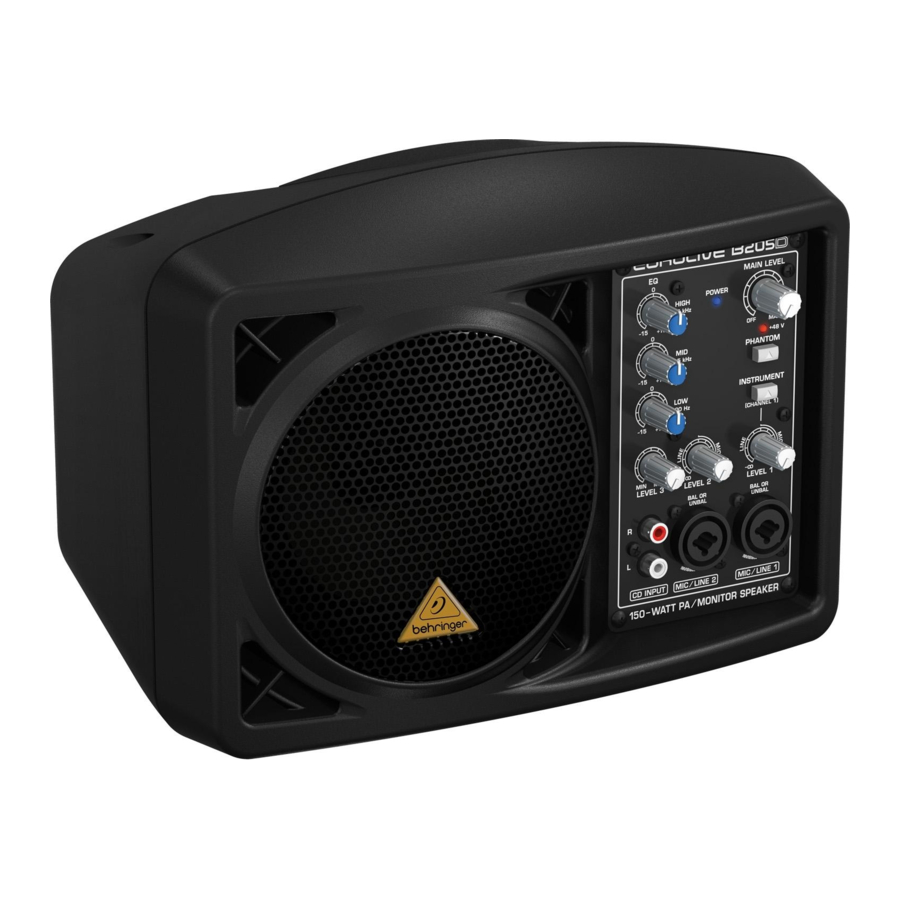

Ultra-Compact 150-Watt PA/Monitor
Speaker System
Service Bulletin
IRIS Repair Code
for Warranty Claim
1 5 1 1
Issue No power or no output, loud buzzing sound, burning smell or complaints of smoke
Replace 15V voltage regulators IC1 and IC2, and improve their heatsinking
Remedy
Replace any other components that have failed
Action Rework all units manufactured prior to date code 1402
Technician Only authorized service technicians shall perform this procedure
Preparation
The following tools and parts are required in order to perform the procedures described in this service bulletin.
Tools Required
Crosshead screwdriver, soldering iron, approved thermal grease
Parts Required
Qty Description
1 IC 7815 voltage regulator, TO220
1 IC 7915 voltage regulator, TO220
2 Insulator F89-07019-00144, 2.03mm thick, TO220
1 Metal clip A65-00200-04931
1 Screw, M3, 8mm, fl at head, crosshead, silver/zinc
1 Nut with star lock washer, M3, 3.2 mm, hex
Warning: Follow all standard safety precautions when performing this procedure. Failure to follow instructions may lead
to permanent injury or death.
Caution: Follow all standard ESD precautions when performing this procedure. Failure to follow instructions may cause
damage to the unit being repaired.
985-40000-00454 Rev.A
2014-04-08
page 1 of 4
Ref Designator
IC1
IC2
for IC1 and IC2
for IC1 and IC2
for metal clip
for metal clip
