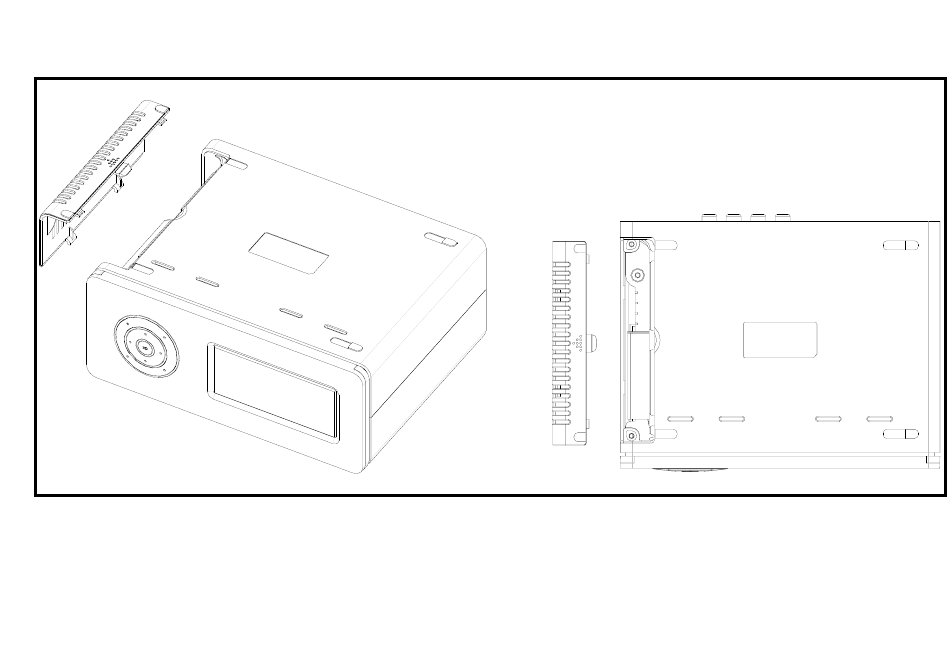

- Page 1 1. Open the HDD cover. Please put your TVIX on a soft pad then open the HDD cover.
- Page 2 2. Separation of the cases. Please release the screws at the entrance of HDD cover with a screwdriver like the picture below. And Put your TVIX on your belly to minimize the impact while detaching the each case. (Please refer to the video clip on our FTP site) Grab the TVIX with your fingers and slightly press the front display panel with your thumb fingers, then pull outward slowly until the front panel is separated.
- Page 3 2-1. Separation of the FPC cable. To pull out the FPC cable from the front panel, please grab the both ends of the black plastic part in the red circle and push equally up to the opposite direction of the FPC cable, then you can separate the cable from the front panel.
- Page 4 3. Separation of the bottom case. Please open the bottom cover.
- Page 5 4. Separation of SMPS Assembly. Please unbind the four screws like the picture. Don’t forget to press the AC inlet to prevent interference while the separation. No. 118 82411-0016-1 SCREW. PH-T/T 3*8, natural...
- Page 6 5. Separation of SMPS. Please unbind the screws. And then you are able to detach the SMPS. After detaching the SMPS, please change it with a new one. No. 119 82411-0017-1 SCREW. PH-T/T 3*5, natural...
