Practical Automation ITK1 G Series Quick Setup Manual

Hide thumbs
1
2
3
4

Advertisement

Table of Contents

When you first set up your printer, follow these simple steps to properly configure your printer to

FOR USING A TICKET WITH BLACK MARK/HOLE

Measure target Ticket Length (C), and distance from cut line to Top of Mark (D) in millimeters (mm)
Find the ITK12 or ITK123 driver icon (different paths depend-
ing on version of Windows), and open the "PA ITK12xG
Properties" driver utility
Select "General" tab
Select "Preferences"
Select preferred orientation, then select "Advanced" button
Under "Paper Size", select correct ticket size, press "OK"
Press "Apply" button
Select "Stored Printer Settings" tab in driver
With printer ON, select "Read" button to load current
printer settings
Under "Mark Type", set to "Black Mark" or "Hole/Silicon"
Enter Ticket Length (C) and Top of Mark (D) measurements
If the printer does NOT have a presenter, the Presenter
Mode will be grayed out and blank
Select "Update" button, wait until loading is complete
ITK1xG

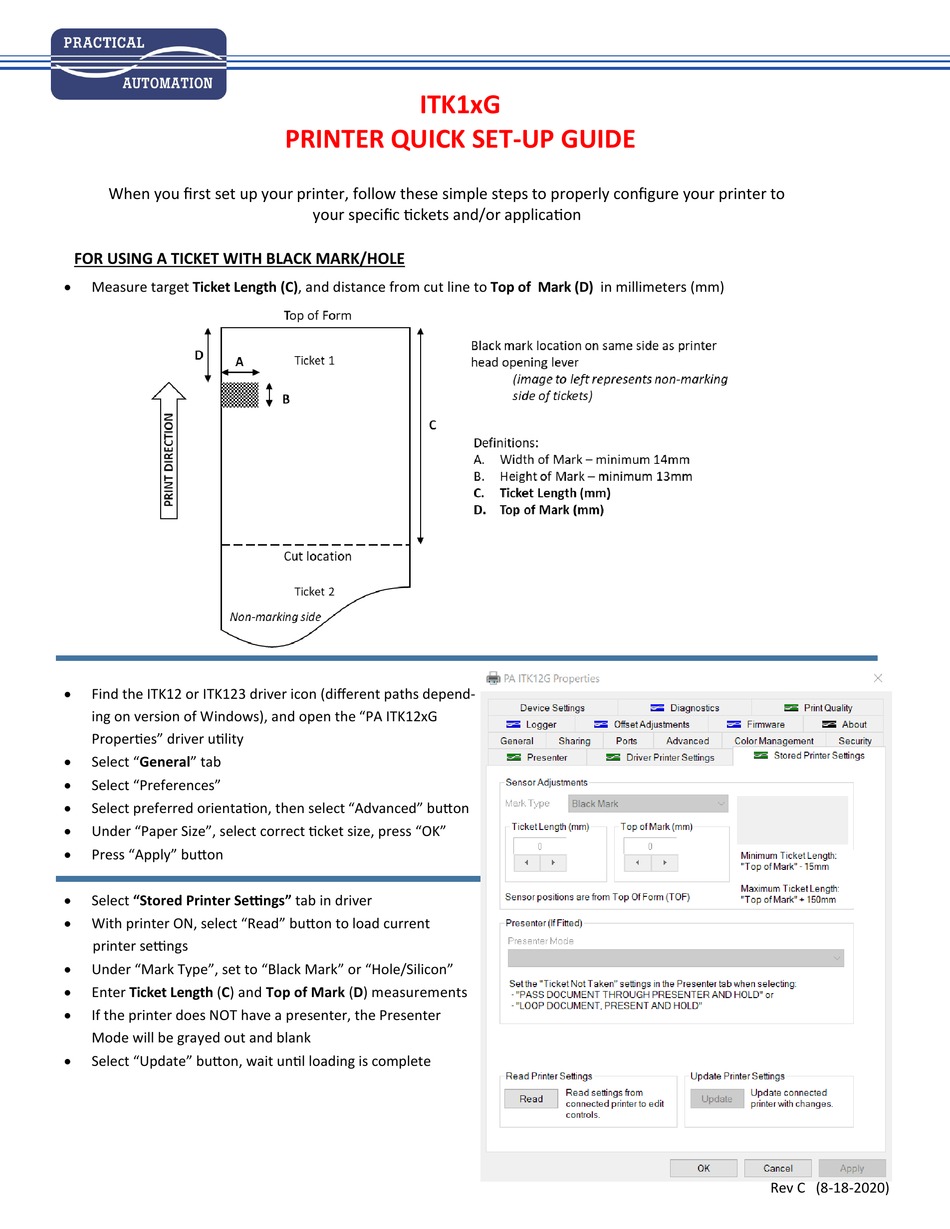

PRINTER QUICK SET-UP GUIDE
your specific tickets and/or application
Rev C (8-18-2020)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ITK1 G Series and is the answer not in the manual?

Questions and answers

Related Manuals for Practical Automation ITK1 G Series

Summary of Contents for Practical Automation ITK1 G Series

  • Page 1 ITK1xG PRINTER QUICK SET-UP GUIDE When you first set up your printer, follow these simple steps to properly configure your printer to your specific tickets and/or application FOR USING A TICKET WITH BLACK MARK/HOLE  Measure target Ticket Length (C), and distance from cut line to Top of Mark (D) in millimeters (mm) ...
  • Page 2 FOR USING A TICKET WITH BLACK MARK/HOLE (cont.)  Select “Driver Printer Settings “ tab  Set “Cut Option” to “Full Cut (Black Mark, Hole)”  Confirm that “Backup Before Print” under “FOR CONTINUOUS PRINTING ONLY” section is set to “0” for Black Mark ...
  • Page 3 ITK1xG PRINTER QUICK SET-UP GUIDE When you first set up your printer, follow these simple steps to properly configure your printer to your specific tickets and/or application FOR USING CONTINUOUS ROLL PAPER  Find the ITK12 or ITK13 driver icon (different paths depending on ver- sion of Windows), and open the PA ITK1xG Properties driver utility ...
  • Page 4 ITK1xG PRINTER QUICK SET-UP GUIDE If your printer is equipped with a presenter, please follow the following instructions after setting your printer to either Black Mark or Continuous FOR USING A PRINTER WITH A PRESENTER  Select “Stored Printer Settings” tab in driver ...
