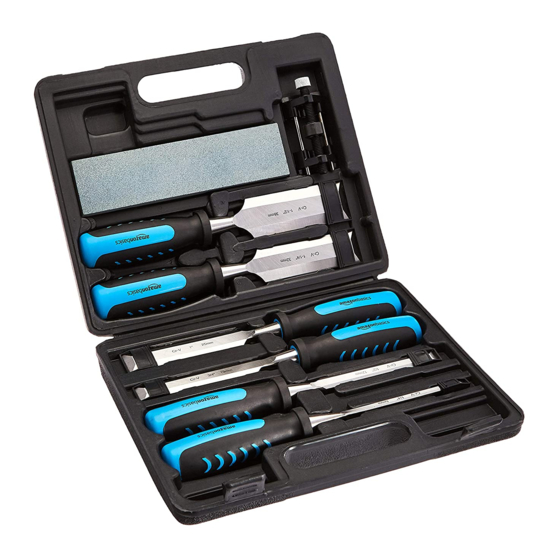

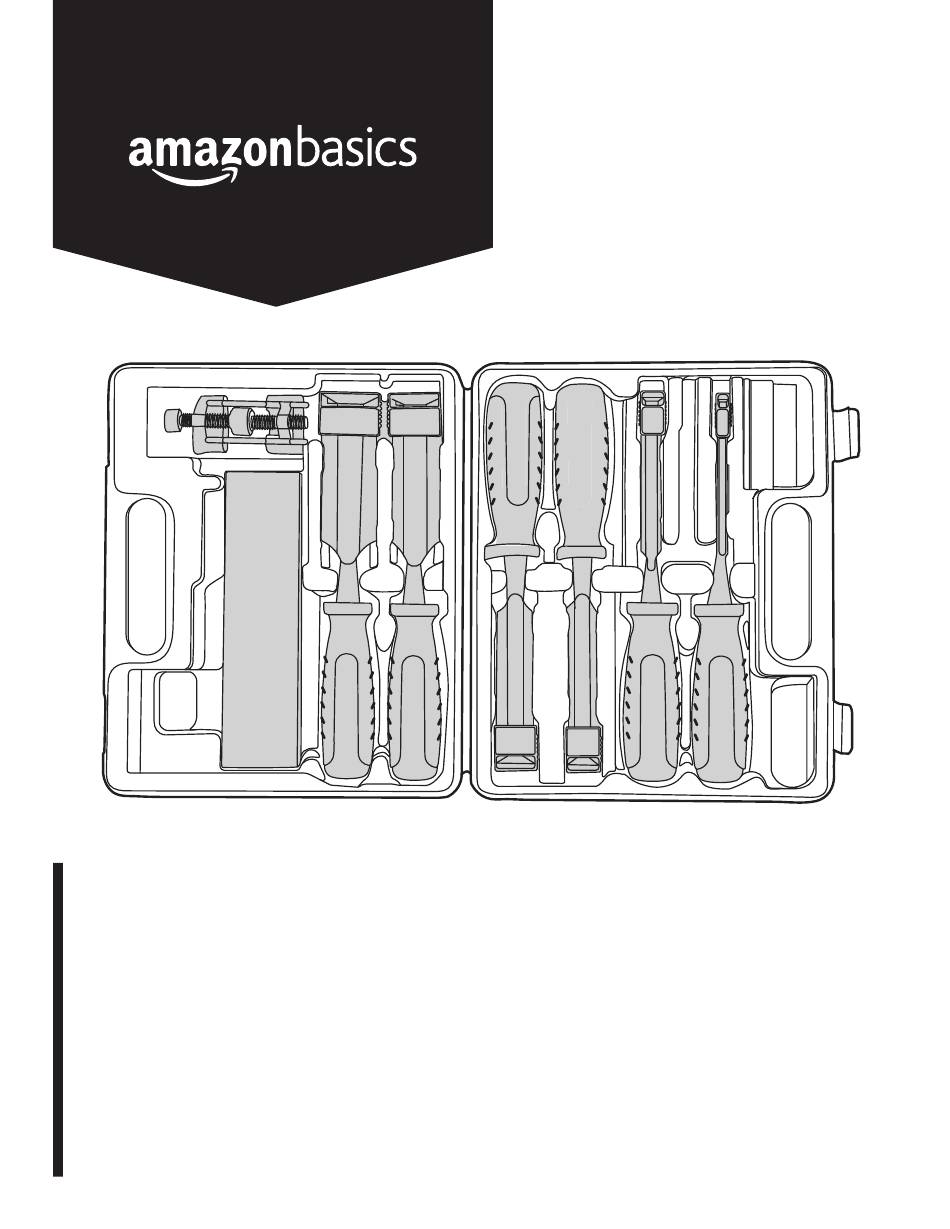

- Page 1 8-Piece Wood Carving Chisel Set Jeu de Ciseaux à Bois de 8 Pièces 8-teiliges Holzschnitz-Meißel-Set Set di Scalpelli per Intaglio Legno 8 Pezzi Juego de Cinceles para Tallar Madera, 8 Piezas 8-Delige Houtbeitelset 木彫のみセッ ト 8 本セッ ト B07V8X5W5R...
- Page 2 English 3 Français 12 Deutsch 22 Italiano 32 Español 42...
-
Page 3: Table Of Contents
Table of Contents 1. Important Safeguards ����������������������������������������������������������� 4 2. Intended Use ������������������������������������������������������������������������� 5 3. Before First Use �������������������������������������������������������������������� 6 4. Tool Overview ������������������������������������������������������������������������ 6 5. Operation ������������������������������������������������������������������������������ 7 6. Cleaning and Maintenance ��������������������������������������������������� 8 6�1 De-rusting and rust protection ������������������������������������� 8 6�2 Sharpening ������������������������������������������������������������������... -
Page 4: Important Safeguards
1. Important Safeguards Read these instructions carefully and retain them for future use� If this tool is passed to a third party, then these instructions must be included� When using the tool, basic safety precautions should always be followed to reduce the risk of injury including the following: CAUTION Risk of injury! »... -
Page 5: Intended Use
» Parts of this tool have sharp edges and corners� Always be careful while handling it� » Keep the cutting edge sharp ensure a secure and proper working� » Always check the workpiece for any metal (nails, screws, staples, etc�) that could damage the cutting edge� »... -
Page 6: Before First Use
3. Before First Use DANGER Risk of suffocation! » Keep any packaging materials away from children – these materials are a potential source of danger, e�g� suffocation� » Check the tool for transport damages� » Remove all the packing materials� »... -
Page 7: Operation
Handle Bevel Cutting edge (with a tip cover) Plane blade intake Width adjustment screw Castor Chisel intake Sharpening stone (#120/240 grain, not shown) 5. Operation CAUTION Risk of injury The edges and corners of the chisel are very sharp� When placing it aside, always lay it down with the bevel (B) facing up�... -
Page 8: Cleaning And Maintenance
» It is recommended to prepare a little grove before the actual work� This way the cutting edge cannot slip away when using more force� » After the work is finished, always put the tip cover on the cutting edge (C)� 6. - Page 9 Use the honing guide to ensure an accurate sharpening angle of the cutting edge (C)� 1� Turn the width adjustment screw (E) of the honing guide in anti- clockwise direction to widen the intake (D, G)� 2� Place the chisel with the bevel (B) facing down in the chisel intake (G)�...
-
Page 10: Storage
For plane blade* intake (D) Protruding Angle Suitable for 38 mm 30° Softer wood 50 mm 25° Harder wood 3� Pull the chisel in the honing guide backwards to sharpen the cutting edge (C)� Press the castor and the cutting edge onto the sharpening stone (H)�... -
Page 11: Specifications
8. Feedback and Help Love it? Hate it? Let us know with a customer review� AmazonBasics is committed to delivering customer-driven products that live up to your high standards� We encourage you to write a review sharing your experiences with the tool�... - Page 12 MADE IN CHINA FABRIQUÉ EN CHINE HERGESTELLT IN CHINA PRODOTTO IN CINA HECHO EN CHINA GEMAAKT IN CHINA 中国製 V01-05/20...
