HIGH PARK
DINING TABLE
PRODUCT NO. 088-0098-0
ASSEMBLY INSTRUCTIONS
HAVING TROUBLE?
TOLL-FREE:
1-888-670-6684
IMPORTANT: Please read this manual carefully
before beginning assembly of this product.
Keep this manual for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HIGH PARK 088-0098-0 and is the answer not in the manual?

Questions and answers

Summary of Contents for Canvas HIGH PARK 088-0098-0

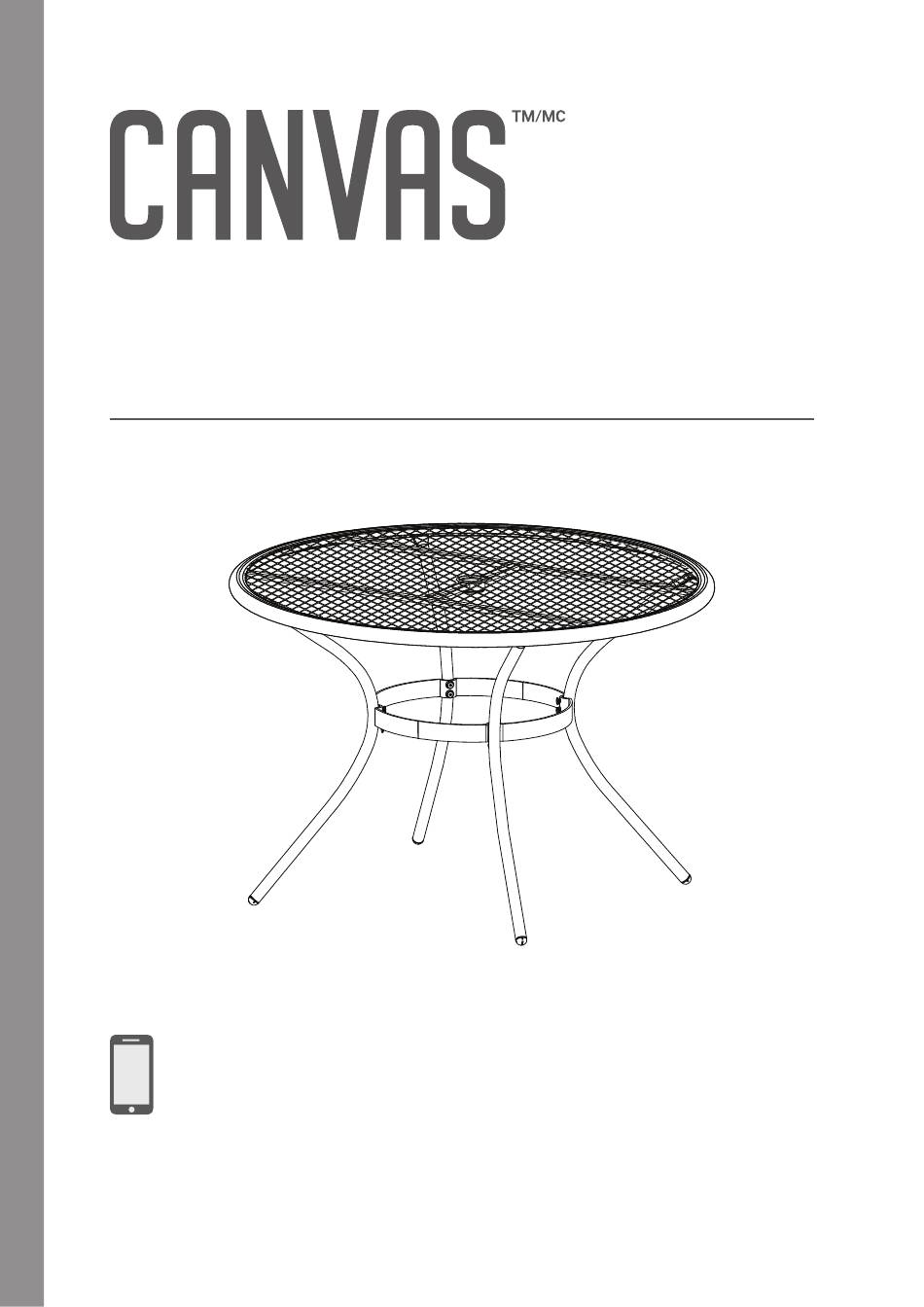

  • Page 1 HIGH PARK DINING TABLE PRODUCT NO. 088-0098-0 ASSEMBLY INSTRUCTIONS HAVING TROUBLE? TOLL-FREE: 1-888-670-6684 IMPORTANT: Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference.
  • Page 2 We would love to hear from you and welcome your thoughtful feedback. Visit our website at canadiantire.ca to tell us about your experience, and share your photos with us using #myCANVASstyle. Show us how you bring CANVAS products ® to life. We can’t wait to see!
  • Page 3: Table Of Contents

    TABLE OF CONTENTS Parts List Hardware List Before You Begin Assembly Step-by-step Guide Technical Data Troubleshooting Caring for Your Item Warranty WARNING! TO REDUCE THE RISK OF SERIOUS INJURY, READ THE FOLLOWING SAFETY INSTRUCTIONS BEFORE ASSEMBLING AND USING THE PRODUCT. •...
  • Page 4: Parts List

    PARTS LIST ITEM DESCRIPTION THUMBNAIL QUANTITY Table leg Support frame Table top HIGH PARK DINING TABLE...
  • Page 5 EXPLODED PARTS HIGH PARK DINING TABLE...
  • Page 6: Hardware List

    HARDWARE LIST THUMBNAIL QUANTITY ITEM DESCRIPTION Screw with washer M6X18 Screw with Spring washer and washer M8X25 Support part Hex key HIGH PARK DINING TABLE...
  • Page 7: Before You Begin Assembly

    Place packing materials back in the box. Do not dispose of packaging materials until assembly is complete. READ EACH STEP CAREFULLY Make sure you understand each step. If you have any questions, contact CANVAS customer service at 1-888-670-6684 (toll free). ® HIGH PARK DINING TABLE...
  • Page 8: Step-By-Step Guide

    STEP-BY-STEP GUIDE STEP 1 Attach each table leg to the table top using the screws with washers, aligning the holes. Hand tighten only. NOTE: Do not tighten screws all the way until you have assembled the table. Once assembly is complete, tighten each screw.
  • Page 9 STEP-BY-STEP GUIDE STEP 2 Connect the support frame to assembled frame using the support part and screws with spring washers and washers, aligning the holes. Hand tighten only. Finally, tighten the screws with hex key 100% 100% HIGH PARK DINING TABLE...
  • Page 10: Technical Data

    TECHNICAL DATA Ø43 5/16" (Ø110 cm) 29" (73.8 cm) SPECIFICATIONS ASSEMBLED DIMENSIONS (W x D x H) 43 5/16 x 43 5/16 x 29" 110 x 110 x 73.8 cm ASSEMBLED WEIGHT 37 lb 8 oz 17 kg MAXIMUM WEIGHT CAPACITY 110 lb 4 oz 50 kg HIGH PARK DINING TABLE...
  • Page 11: Troubleshooting

    OFF SEASON: Clean and dry before storing in a dry, sheltered area. WARRANTY INFORMATION This CANVAS ® product carries a one (1) year warranty against defects in workmanship and materials. Trileaf Distribution agrees to replace the defective product free of charge within the stated warranty period, when returned by the original purchaser with proof of purchase.
  • Page 12 INSPIRED BY CANADA...
  • Page 13 HIGH PARK TABLE À DÎNER PRODUIT Nº 088-0098-0 INSTRUCTIONS D’ASSEMBLAGE VOUS RENCONTREZ DES PROBLÈMES? SANS FRAIS : 1 888 670-6684 IMPORTANT : Veuillez lire attentivement ce guide avant de procéder à l’assemblage de cet article. Conservez ce guide aux fins de consultation ultérieure.
  • Page 14 CANVAS Qu’il soit question de meubles tendance, de décorations des Fêtes ou d’articles essentiels pour profiter de votre jardin, CANVAS vous permet de rafraîchir facilement votre espace afin qu’il soit unique et reflète votre façon de vivre au quotidien.
  • Page 15 TABLE DES MATIÈRES Liste des pièces Liste de la quincaillerie Avant de commencer l’assemblage Guide étape par étape Données techniques Dépannage Entretien de votre article Garantie AVERTISSEMENT! POUR RÉDUIRE LE RISQUE DE BLESSURES GRAVES, LISEZ LES CONSIGNES DE SÉCURITÉ SUIVANTES AVANT D’ASSEMBLER OU D’UTILISER L’ARTICLE.
  • Page 16: Liste Des Pièces

    LISTE DES PIÈCES RÉFÉRENCE DESCRIPTION ILLUSTRATION QUANTITÉ Patte de table Cadre de support Dessus de table TABLE À DÎNER HIGH PARK...
  • Page 17 VUE ÉCLATÉE TABLE À DÎNER HIGH PARK...
  • Page 18: Liste De La Quincaillerie

    LISTE DE LA QUINCAILLERIE ILLUSTRATION QUANTITÉ RÉFÉRENCE DESCRIPTION Vis M6X18 Vis avec rondelle à ressort et rondelle M8X25 Partie support Clé hexagonale TABLE À DÎNER HIGH PARK...
  • Page 19: Avant De Commencer L'assemblage

    Remettez les matériaux d’emballage dans la boîte. Ne les jetez pas avant d’avoir terminé l’assemblage. LIRE ATTENTIVEMENT CHAQUE ÉTAPE Assurez-vous de bien comprendre chaque étape. Si vous avez des questions, communiquez avec le service à la clientèle CANVAS au 1 888 670-6684 (sans frais). TABLE À DÎNER HIGH PARK...
  • Page 20: Guide Étape Par Étape

    GUIDE ÉTAPE PAR ÉTAPE ÉTAPE 1 Fixez chaque patte de table au dessus de table au moyen des vis avec des rondelles, tout en alignant les trous. Serrez à la main seulement. REMARQUE : Ne serrez pas les vis à fond avant d’avoir assemblé...
  • Page 21 GUIDE ÉTAPE PAR ÉTAPE ÉTAPE 2 Connectez le cadre de support au cadre assemblé au moyen de la partie de support et vissez avec des rondelles à ressort et des rondelles, tout en alignant les trous. Serrez à la main seulement. Enfin, serrez les vis à...
  • Page 22: Données Techniques

    DONNÉES TECHNIQUES Ø 43 5/16 po (Ø110 cm) 29 po (73,8 cm) FICHE TECHNIQUE DIMENSION DE L’ARTICLE (larg. x P. x H.) 43 5/16 x 43 5/16 x 29 po 110 x 110 x 73,8 cm POIDS DE L’ARTICLE 37 lb 8 oz 17 kg CAPACITÉ...
  • Page 23: Entretien De Votre Article

    HORS SAISON : Nettoyez et séchez l’article avant de le ranger dans un endroit sec et abrité. GARANTIE GARANTIE LIMITÉE DE 1 AN* Cet article CANVAS comprend une garantie de un (1) an contre les défauts de fabrication et de matériau(x). Distribution Trifeuil consent à remplacer l’article défectueux lorsqu’il est retourné...
  • Page 24 INSPIRÉE DU CANADA...
