5. FAN
In order to prevent rising the inside temperature, the inside heat is emitted outside.
6. POWER SWITCH
Turns the unit ON or OFF. Always turn level controls down before turning on the unit.
7. Earth Lift
8. AC POWER CORD/FUSE HOLDERS
For selecting the proper voltage (115/230AC) to match the power supply in your area. Note: To avoid
damage to your unit, always make sure this switch is set to the correct supply voltage. Damage
caused by improper use is not covered by the warranty

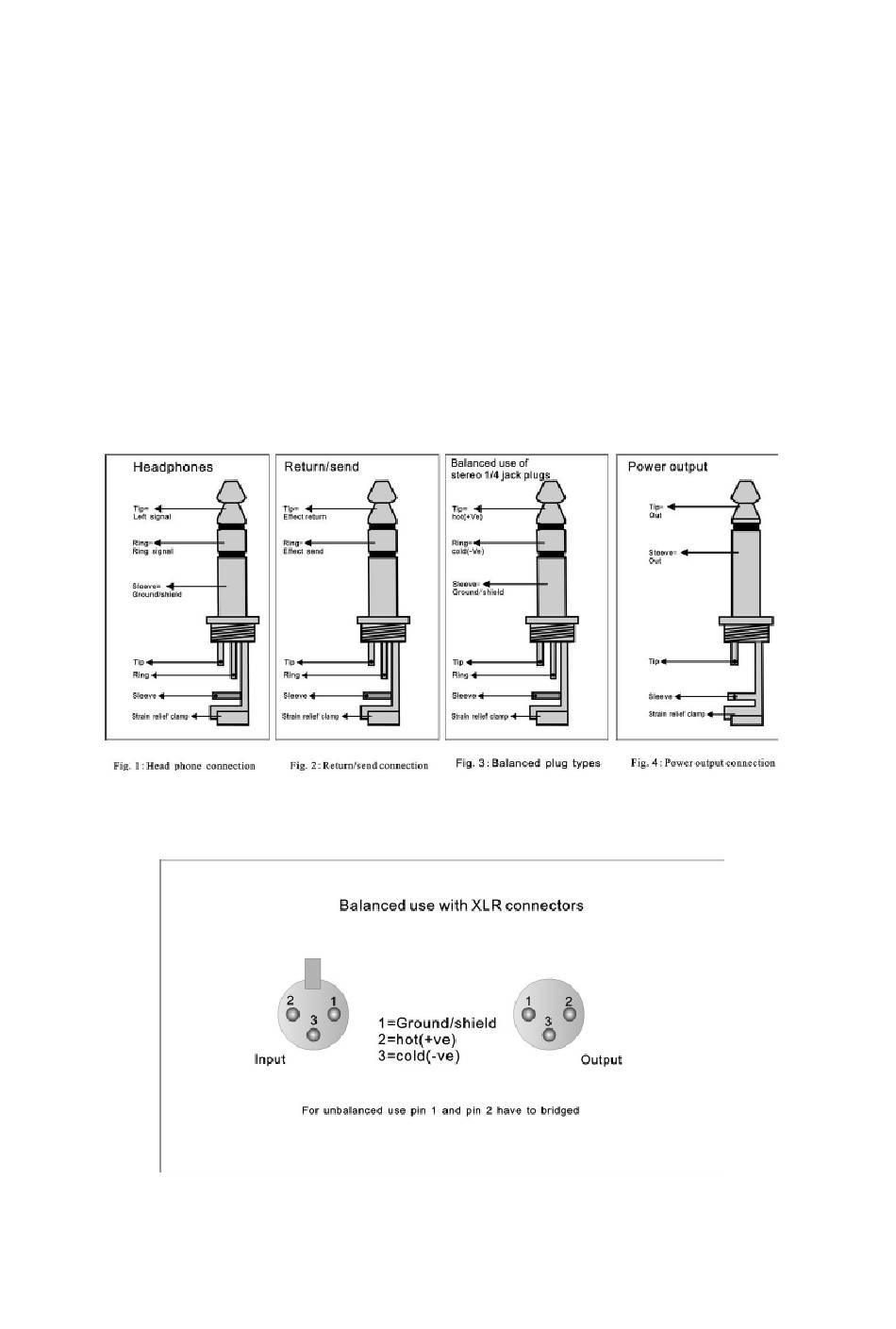

C . CONNECTIONS
You will need a lot of cables for different purposes – see the following figures to make sure you have
got the right cables. Unbalanced equipment may be connected to a balanced inputs/outputs. Either
use mono 1/4＂plugs or connect ring and sleeve of TRS plugs.
