Power Dynamics PDA-C804A User Manual page 4

16 . AUX
This controls the level of the playback inputs(RCA) jack.
17. iPhone INPUT
Portable device input interface, such as iPhone.
18 . MP3
Use this control to adjust MP3 signal level sent to main channel.
19 . EFF ECTS DELAY
Use this control to adjust the delay time interval of echo repeat.
20 . EFF ECTS REPEAT
Use this control to adjust reverberating deepness.
21 . EFF ECTS LEVEL
Use this control to adjust signal levels of echo output.

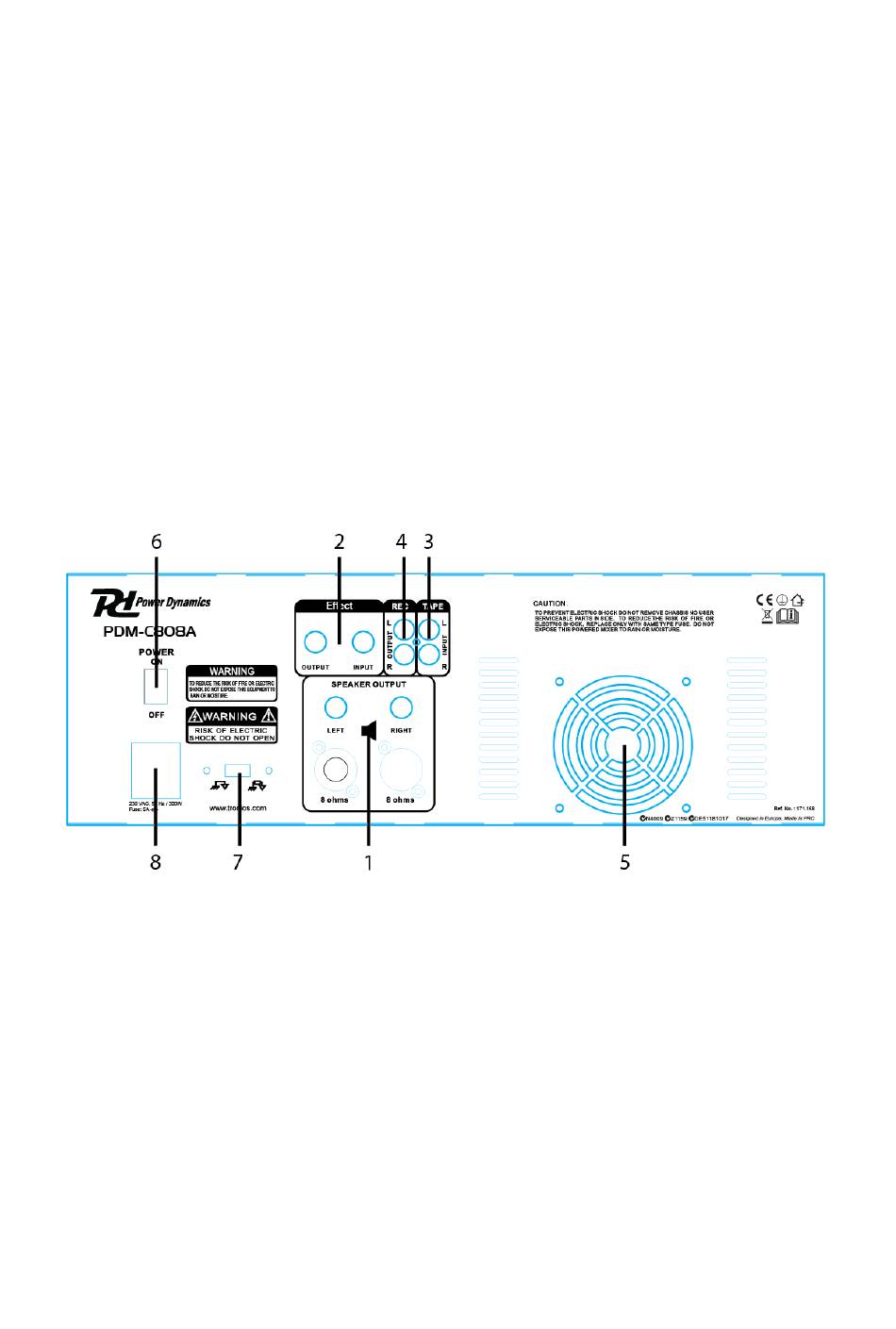

B.BACK PANEL SECTION FEATURES
1. SPEAKER JACK
These are 2 conductor 1/4" speaker outputs. Each one is rated at 8 ohm minimum impedance. Total
minimum load for the amplifier is 4 ohms. You may connect either 1‐4 ohm,1‐8 ohm or 2‐8 ohm
speaker cabinets. Do not go below rated minimum impedance.
2. SEND/RETURN
Use a stereo ¼" plug to send and return a preamp signal to a sound processor
3‐4.TAPE IN AND REC OUT
The TAPE IN allows cassette recorders or CD players to be added to the Main output. The RECORD
OUTPUT, with TAPE RCA jacks, provides signal output to a cassettedeck or Home audio equipment.
The impedance is 1K ohms @ ‐10dBv.
