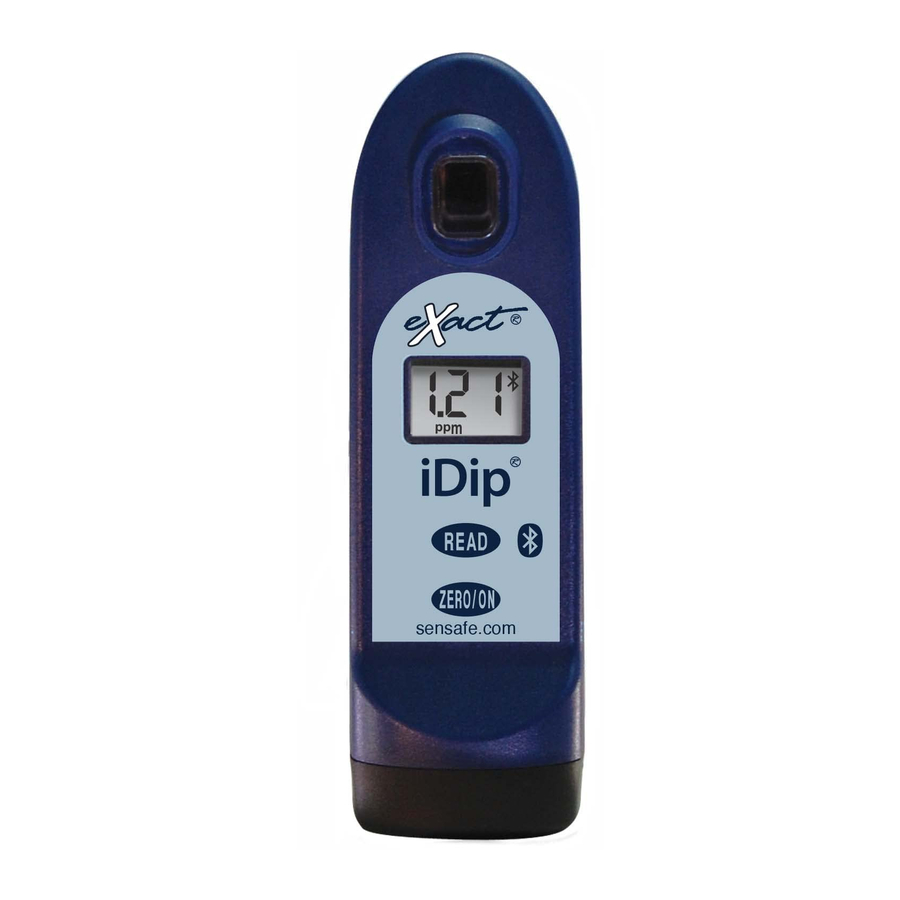

Summary of Contents for Industrial Test Systems exact iDip

  • Page 1 ™ QUICK START GUIDE...
  • Page 2: Table Of Contents

    ......® ..... 31-32 eXact Micro Tests & Reagents ® ©2015, Industrial Test Systems, Inc. Printed in USA...
  • Page 3: Welcome

    We are constantly adding new devices to this list. View the most up-to-date list at sensafe.com/compatible-devices. US Designed and US and International Patent-Protected by Industrial Test Systems, Inc. 1875 Langston Street, Rock Hill, SC USA. EXACT , IDIP , EXACT IDIP...
  • Page 4: Warranty (2 Years)

    ® SMaRT phOTOMETER SYSTEM ™ Using eXact Micro reagents in combination with the ® app and photometer completes the eXact iDip Smart ® Photometer System . Each test will require the use of one or ™ more of the testing methods outlined in this manual.
  • Page 5: For Best Accuracy

    All tests that begin with 570 are for use with the eXact iDip 570 Smart ® Photometer only. Visit sensafe.com/idip/ for individual test instructions. The meter has a default 3 minute automatic shutoff timer. You can change the duration in the ‘Settings’...
  • Page 6: Exact Idip ® Smart Photometer System ™ Overview

    15 cm and 1 meter iNStaLL “aaa” BattERiES (NOt iNcLUDED) 1. Use a #4 Phillips head screwdriver to remove the screw from the base of your eXact iDip ® 2. Remove the base. 3. Install Four (4) new AAA batteries as illustrated inside your iDip’s battery compartment.
  • Page 7: Getting Started

    STaRTED DOWNLOaD ThE app Using your Smart Device, download the eXact iDip ® app. The eXact iDip application is the brain for this ® system, download the latest update to ensure you are using the current version with up-to-date tests and features.
  • Page 8: Compatible Smart Devices

    Galaxy Tab 4 Galaxy Tab Pro Galaxy Tab S This list is current as of July, 2015. To view the most up-to-date list of compatible devices, please visit sensafe.com/compatible-devices. viEW iNSTRUCTiONaL viDEO ©2015, Industrial Test Systems, Inc. Printed in USA...
  • Page 9 GOOGLE LENOVO G Pad Xperia Tablet Z Nexus 7 (2013) Xperia Tablet Z2 Nexus 9 The eXact iDip Smart Photometer requires the use of a smart device with ® Bluetooth 4.0 and Android 4.3 or greater. ® viEW EXaCT iDip COMMERCiaL ®...
  • Page 10: Idip ® App Overview

    TEST RESuLT SCREEN BLUEtOOth DEvicE tEStiNg tESt paRamEtER aBBREviatiON tESt RESULt paRamEtER UNit OF mEaSURE DOtS iNDicatE mULtipLE UNitS OF mEaSURE Swipe unit of measure values. (Available for some tests) ©2015, Industrial Test Systems, Inc. Printed in USA...
  • Page 11: Using The Idip ® App

    The Menu allows you to access any of the app’s features with ease. hOW TO ChaNgE ThE TiMEOUT DURaTiON The timeout setting is used to turn off the eXact iDip Smart ® Photometer. The default setting is 3 minutes, however this can be adjusted.
  • Page 12: History

    'Customers' then 'Add customers from contacts'. hOW TO CREaTE a NEW CONTaCT To create a new contact, select 'Customers', tap the '+', then enter all of the customers contact information. Once finished tap 'Done'. ©2015, Industrial Test Systems, Inc. Printed in USA...
  • Page 13: Calendar

    You can do this in the settings and security section of your smartphone/ tablet (instructions for each will vary by make/model). STORE The eXact iDip app comes pre-installed with ® tests for Total Alkalinity, Free Chlorine, Combined Chlorine, and pH.
  • Page 14: Select Customer

    Storage features, each test result is linked to a contact. Apple Android You can also choose to complete this step after testing. pOWER ON EXaCT iDip ® Press the button to power on the eXact iDip ® ©2015, Industrial Test Systems, Inc. Printed in USA...
  • Page 15: Select Bluetooth ® Test

    If not, select your eXact iDip from the bottom of the ® screen. Verify it has connected and tap 'OK'. Note : Ensure you always connect your eXact iDip ® Photometer via the Bluetooth connection within the app. ® To verify connection look for the Bluetooth icon in the upper right corner of your photometer.
  • Page 16: Fill Cell

    Tap 'Select Test' at the top (e.g. Alkalinity, Total). The eXact iDip and app will both display the ® 570, all test being run. If using the eXact iDip ® available tests will begin with 570 (see below). Alkalinity, Total AL Bluetooth Test Alkalinity, Total AL Selected ©2015, Industrial Test Systems, Inc.
  • Page 17: Zero Meter

    STRip METhOD The STANDARD STRIP METHOD (page 18) applies to both the eXact iDip Smart Photometer and the eXact iDip 570 Smart Photometer ® (some tests require a count-up time, listed below). Alkalinity, Total Proceed to step 8 on page 18...
  • Page 18: Standard Strip Method

    22 prior to closing the app. On the Test Result Screen, swipe the result to the left, or right, to view alternative units of measure. ©2015, Industrial Test Systems, Inc. Printed in USA...
  • Page 19: Standard Liquid Method

    Place the Cell Cover onto the CELL. Press and a 20 second countdown begins. Turn the meter upside-down repetitively during the 20 seconds. When the timer displays '1', place the eXact iDip ® a flat surface. Wait for count-up time.
  • Page 20: Auto-Calculated Methods

    (Total Hardness, Calcium Hardness, Total Alkalinity, Chloride, and Sulfate) and then go to Results. At this point, all three values will be automatically calculated simultaneously (see below). ©2015, Industrial Test Systems, Inc. Printed in USA...
  • Page 21 aUTO-CaLCULaTED METhODS LaNgELiER SaTURaTiON iNDEX (LSi) Use the STANDARD STRIP METHOD as illustrated on page 18 to perform tests for Total Alkalinity, Calcium Hardness, and pH. Then, obtain a TDS result and a Temperature result via alternate means. Open the slide-out menu and tap Manual Test.
  • Page 22: Managing Data

    Enter a Site name, tap 'OK'. aDD NOTES To add notes tap the desired test result. Type notes in the 'Notes' box, which are automatically saved. Press 'Results' to return to the results menu. ©2015, Industrial Test Systems, Inc. Printed in USA...
  • Page 23 MaNagiNg DaTa SavE TO RESULTS In 'Results' screen, tap 'Save' to store into 'History'. A 'Saving Results' screen appears, tap 'OK'. Your result is now successfully saved. SEND/ShaRE via EMaiL In History you can edit, select, and email your results. To email you can either tap an individual result displayed, or use the 'Select' button to access multiple data points.
  • Page 24 Tap 'Map' on History page to access History Map. Double-tap or spread fingers to zoom. Tap on a pin to see results. Tap on a result to bring up the details page. ©2015, Industrial Test Systems, Inc. Printed in USA...
  • Page 25: Troubleshooting

    Replace batteries eXact iDip ® “Er1” on No result sent to Close & restart app. eXact iDip eXact iDip from app Reconnect to eXact iDip ® ® ® “Er2” on No connection Connect eXact iDip ® eXact iDip to app ®...
  • Page 26: About

    ® Bluetooth SMART is a low-power networking standard ® which uses short radio waves to allow electronic devices to communicate with each other wirelessly. The eXact iDip ® comes standard with the latest Bluetooth 4.0 technology ® (bluetooth.com/Pages/Bluetooth-Smart.aspx). It is a class 2 device with a wireless working distance of up to 30 feet (10 meters) and a 2.1 Mbps data transfer rate.
  • Page 27: Compliance Testing (Usepa)

    ® the same wavelength and delivers the same chemicals in the same proportions as AWWA method 3500-Cr B. The eXact iDip ® 570 Smart Photometer cannot be used for compliance monitoring because the photometer wavelength of 570nm is outside of the required 490nm–530nm range.
  • Page 28: Exact Idip ® Accuracy

    EXaCT iDip aCCURaCY ® Combined with your smart device, the eXact iDip Smart ® Photometer is designed to test your water for multiple water quality parameters. Download the free eXact iDip app and sync ® to your smart device running Bluetooth SMART Technology.
  • Page 29: Kits And Accessories

    DRY CaSE fOR phONE OR TabLET Features a waterproof vacuum seal for your smartphone/ tablet. Each case comes with a neoprene armband and lanyard making it easy to use with your eXact iDip ® Dry Case for phone: 8.5" x 4.5" x .5"...
  • Page 30: Starter Kits

    • Cleaning brush • User manual • 25 of each eXact Micro reagents ® (reagents vary for each kit-see below). Starter kits can be ordered with or without an eXact iDip ® Smart Photometer. CONTAINS WITHOuT IDIP WITH IDIP ®...
  • Page 31: Exact ® Micro Tests & Reagents

    EXaCT iDip 570 TESTS & REagENTS ® † RANGE # OF % BEST PARAMETER / TEST PART # TESTS ACCURACY 570 Alkalinity, Total 486641 12 - 200 Alkalinity, Total Range Extender 486665 Each strip adds 130 ppm 570 Ammonia 486654 0.1 - 12...
  • Page 32 EXaCT iDip TESTS & REagENTS ® RANGE % BEST # OF † PARAMETER / TEST PART # TESTS ACCURACY Alkalinity, Total 486641 11 – 200 Alkalinity, Total Range Extender 486665 Each strip adds 130 ppm Bromine, Total (DPD–1) 486636 0.07 – 17.0...
