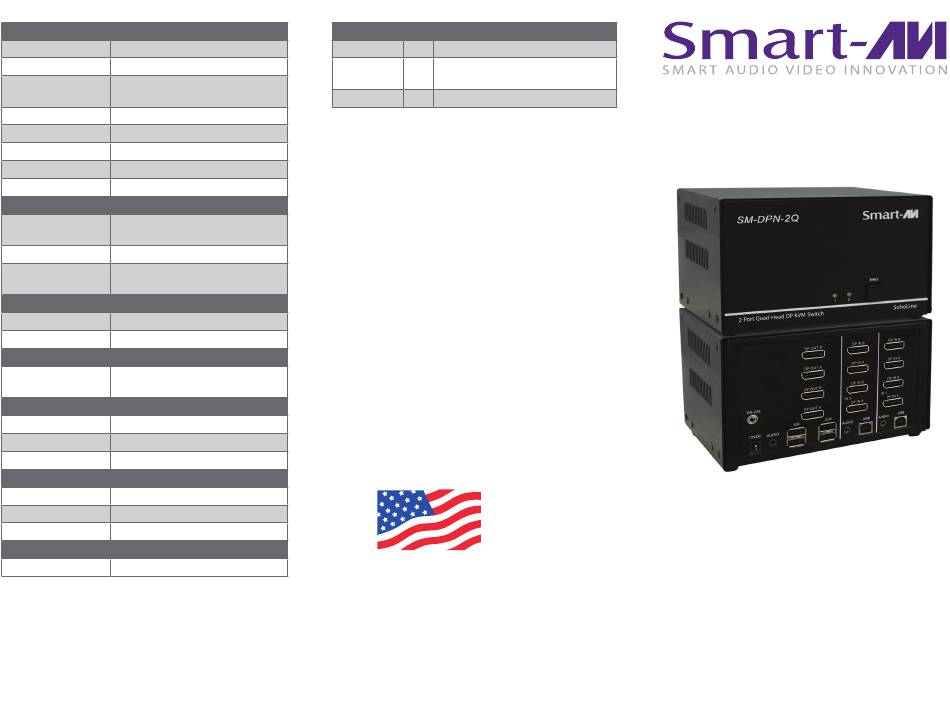

SMART-AVI SM-DPN-2Q Quick Start Manual

TECHNICAL SPECIFICATIONS

VIDEO
Fornat DisplayPort1.2
Host Interface (8) DisplayPort
User Console
(4) DisplayPort
Interface
Max Resolution Up to 4K (3840x2160 @60Hz)
DDC 5 volts p-p (TTL)
Input Equalization Automatic
Input Cable Length Up to 20 ft
Output Cable Length Up to 20 ft
USB
USB 2.0, 1.1, and 1.0
Signal Type
w/ internal hub
Input Interface (2) USB Type B
(2) USB 1.1 Type A for KVM Devices
Output Interface
(2) USB 2.0 Type A Transparent
AUDIO
Audio Input (2) 3.5mm stereo audio (female)
Audio Output (1) 3.5mm stereo audio (female)
POWER
12V DC, 3A power adapter with
Power Requirements
center-pin positive polarity
ENVIRONMENT
Operating Temp 32° to 104° F (0° to 40° C)
Storage Temp -4° to 140° F (-20° to 60° C)
Humidity 0-80% RH, non-condensing
CONTROL
Front Panel Push Buttons with LED indicators
RS-232 Via Serial @ 115200 bps
Hot Keys Via Keyboard
OTHER
Emulation Keyboard, Mouse and Video
WHAT'S IN THE BOX
PART NO. QTY DESCRIPTION
SM-DPN-2Q 1 2-port, QH DP KVM Switch
12-VDC, 3-A power adapter with
PS12VDC3A 1
center-pin positive polarity.
1 Quick Start Guide
NOTICE
The information contained in this document
is subject to change without notice. iPGARD
makes no warranty of any kind with regard
to this material, including but not limited to,
implied warranties of merchantability and
fitness for a particular purpose. iPGARD
will not be liable for errors contained
herein, or for incidental or consequential
damages in connection with the furnishing,
performance, or use of this material. No
part of this document may be photocopied,
reproduced, or translated into another
language without the prior written consent
from iPGARD, Inc.
20170518
DESIGNED
AND MADE
IN THE USA
Toll Free: (888)-994-7427
Phone: (702) 800-0005
Fax: (702)-441-5590
WWW.iPGARD.COM

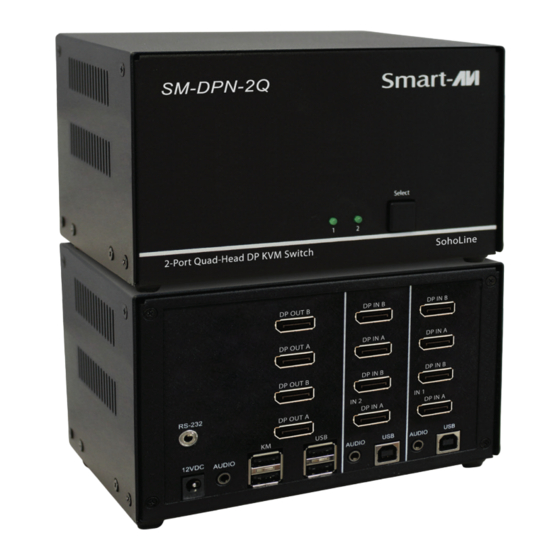

SM-DPN-2Q
Advanced KVM Switch
QUAD HEAD 2-PORT DP
UHD (4K60) KVM SWITCH
WITH USB 2.0 SHARING
Quick Start Guide
A full manual can be downloaded from
www.ipgard.com/SM-DPN-2Q/
