Summary of Contents for Amcrest AMPS9E8P-AT-96

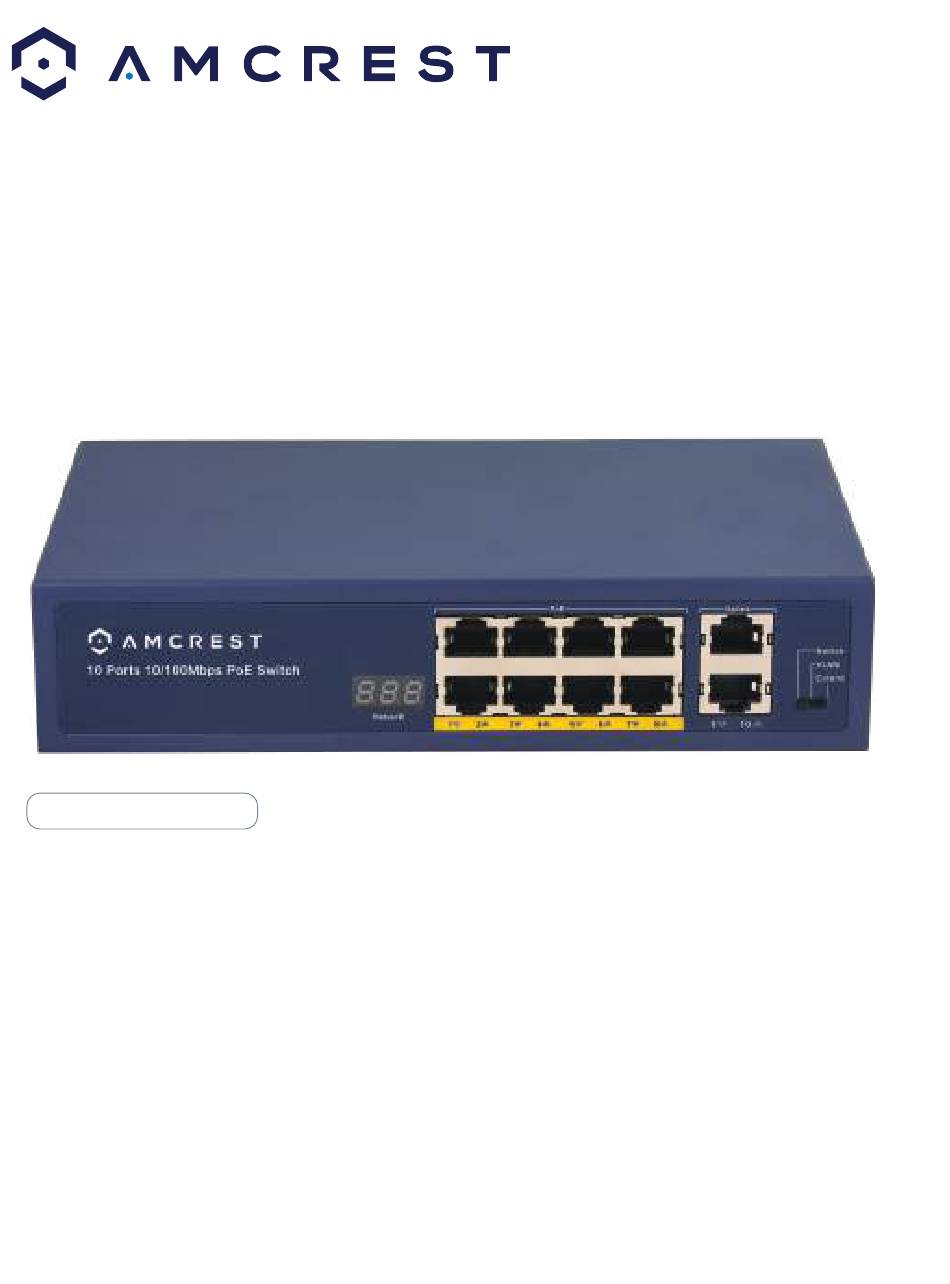

- Page 1 Simple. Reliable. Secure. AMPS9E8P-AT-96 8-Port PoE Switch User’s Manual Version 1.0.0...
- Page 2 This manual is for reference only. All the designs and software here are subject to change without prior written notice. All trademarks and registered trademarks are the properties of Amcrest Technologies LLC. Applicable Models: The manual can be applied to the following model: AMPS9E8P-AT-96...
-
Page 3: Table Of Contents
Table of Contents Product Overview Features Typical Application Device Structure 8-Port PoE Switch PoE Power Output Appendix 1 Technical Specification... -
Page 4: Product Overview
1. Product Overview Features Common Features: Two-layer commercial PoE switch. Supports IEEE802.3i 10 BASE-T, IEEE802.3u 100 BASE-TX, IEEE802.3x Flow Control, IEEE802.3af Power over Ethernet IEEE802.3at Power over Ethernet, IEEE802.3az EEE Protocols MAC auto study and aging, MAC address list capacity is 4K. All ports self-adapt MDI/MDIX mode. -
Page 5: Device Structure
Device Structure 2.1 8-Port PoE Switch U p l i n k S w i t c h 10 Ports 10/100Mbps PoE Switch V L A N E x t e n d Status/W Name Note PoE Consumption Status LED Screen Monitor the total power consumption of each PoE port. -
Page 6: Appendix 1 Technical Specification
Appendix 1 Technical Specification Technical Parameters AMPS9E8P-AT-96 Download Ports 8*10/100M Base-T (PoE Powered) Uplink Ports 2*100M Base-T (Uplink) PoE Standard IEEE 802.3at, IEEE 802.3af Total Power Supply LED Indicator Link/Act Transmission Mode IEEE802.3 full duplex flow control and back pressure half duplex flow control... - Page 7 Learn more at www.amcrest.com 2021 © Amcrest Technologies . All rights reserved. 16727 Park Row Houston, TX 77084-5020 Phone: +1 888 212 7538...
