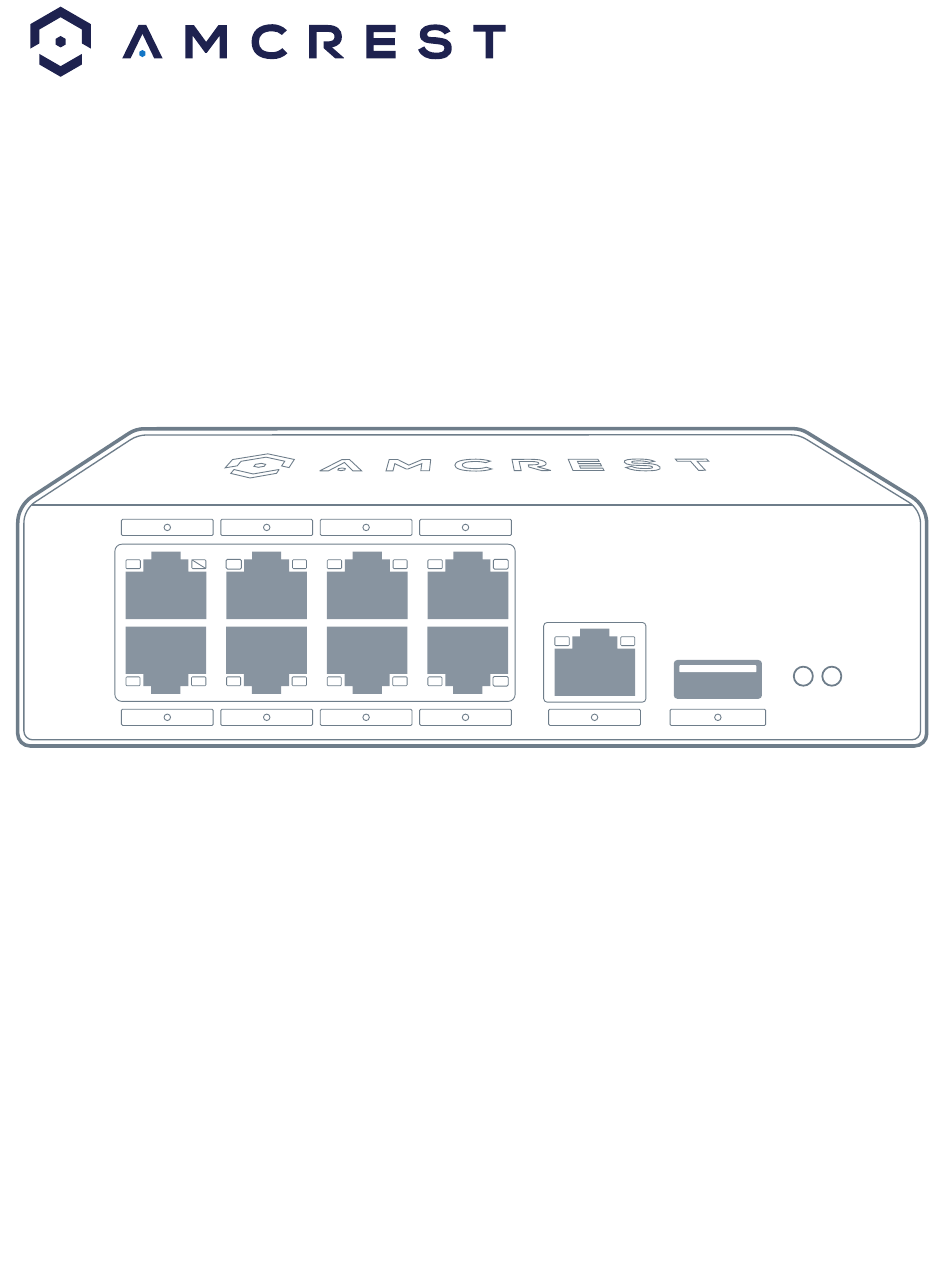

- Page 1 Simple. Reliable. Secure. Simple. Reliable. Secure. 4/8-Port PoE Switch 4/8-Port PoE Switch User’s Manual User’s Manual V. 1.0.0 V. 1.0.0...
- Page 2 This manual is for reference only. All the designs and software here are subject to change without prior written notice. All trademarks and registered trademarks are the properties of Amcrest Technologies LLC. Applicable Models: The manual can be applied to the following models:...
-
Page 3: Table Of Contents
Table of Contents Product Overview Features Typical Application Device Structure 4-Port PoE Switch 2.1.1 Front Panel 2.1.2 Upper Cover 2.1.3 PoE Power Supply 8-Port PoE Switch 2.2.1 Front Panel 2.2.2 Upper Cover 2.2.3 PoE Power Supply Installation Guide Appendix 1 Technical Specification... -
Page 4: Product Overview
8-port PoE switch supports 1 1000M SFP fiber port, 1*10/100/1000M self-adaptive RJ45 port and 8 10/100M self-adaptive RJ 45 ports. 8-port PoE switch with 96W power adapter. Typical Application The typical application of the device is shown in Figure 1- 1 Ethernet Amcrest 4/8 Port Switch Camera Amcrest 4/8 Switch Port Switch... -
Page 5: Device Structure
Device Structure 4-Port PoE Switch 2.1.1 Front Panel The front panel is shown in Figure 2-1. Figure 2.1 Name Note 10/100 Base-T 4 10/100M self-adaptive PoE power supply ports. 10/100/1000 Base-T 10/100/1000M self-adaptive RJ45 port. 100/1000 Base-X 100/1000M self-adaptive SFP fiber port. Link/Act Fiber port status indicator Power indicator... -
Page 6: 2.2 8-Port Poe Switch
2.2 8-Port PoE Switch 2.2.1 Front Panel The front panel is shown in Figure 2-1. Figure 2.3 Name Note 10/100 Base-T 8 10/100M self-adaptive RJ45 ports, which are used for PoE power supply. 10/100/1000 Base-T 10/100/1000M self-adaptive RJ45 port. 100/1000 Base-X 100/1000M self-adaptive SFP fiber port. -
Page 7: Installation Guide
DIN rail in the hooked section of the upper mount. 8-port PoE switch supports the Now firmly press the PoE switch straight back onto the rail until it is slide width of 38mm. A secured firmly. see Figure 3-1. Hook Side Buckle Figure 3.1 AMPS5E4P-AT-58 AMPS9E8P-AT-96... -
Page 8: Appendix 1 Technical Specification
Appendix 1 Technical Specification TECHNICAL PARAMETERS AMPS5E4P-AT-58 AMPS9E8P-AT-96 Physical Port 1*100/1000 Base-X 1*1000 Base-X Network Ports 1*10/100/1000 Base-T 1*10/100/1000 Base-T 4*10/100 Base-T （POE power supply） 8*10/100 Base-T （POE power supply） Technical Index Exchange Capacity 6.80Gbps 7.60Gbps Packet Forwarding Rate 3.57Mpps 4.17Mpps... - Page 9 Learn more at www.amcrest.com 2017 © Amcrest Technologies . All rights reserved. 16727 Park Row Houston, TX 77084-5020 Phone: +1 888 212 7538...
