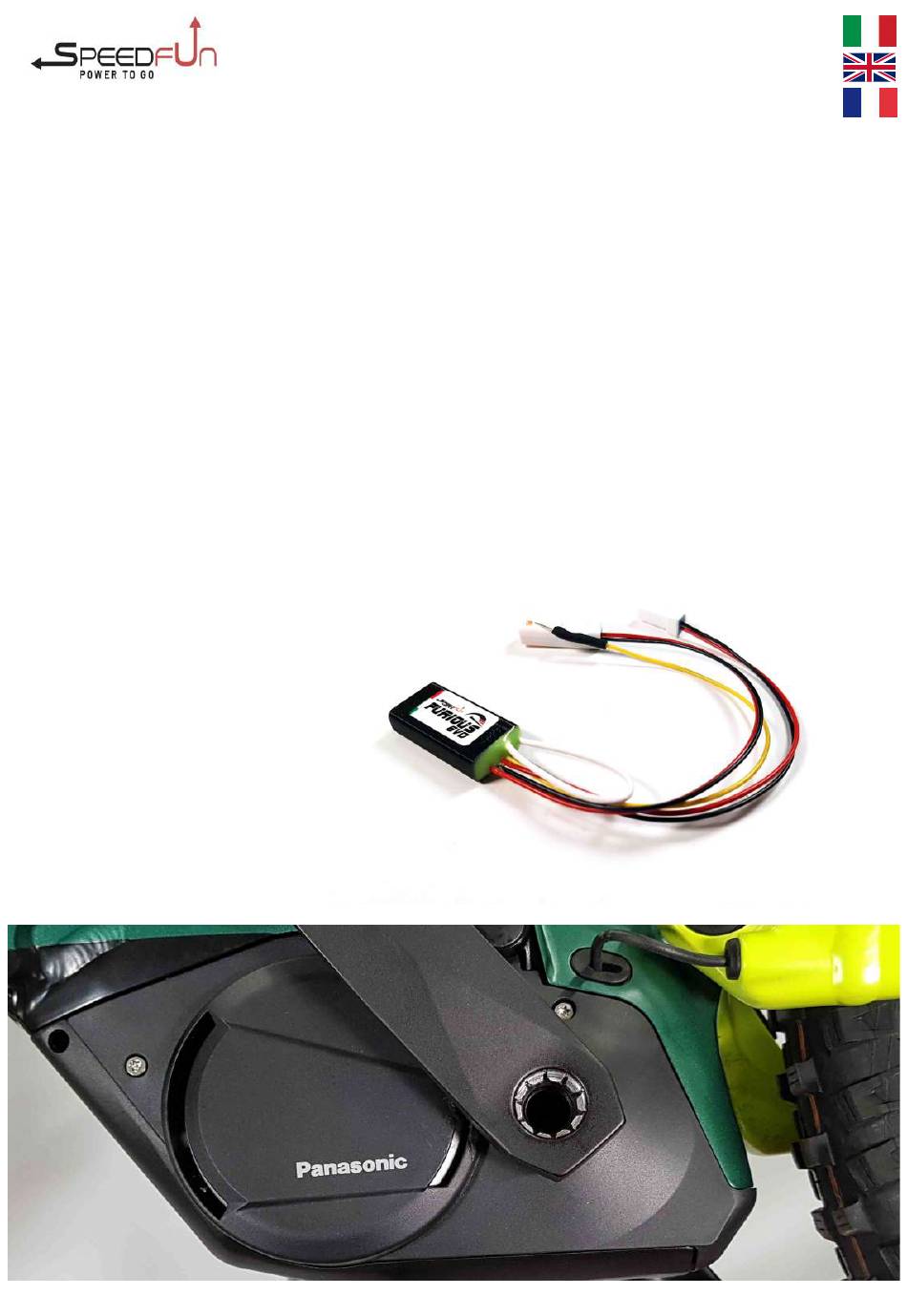

- Page 1 ISTRUZIONI INSTRUCTIONS FURIOUS EVO for PANASONIC GX0, X0, X1 & GX Ultimate, GX Power Plus e GX Power Compatibile con ogni tipo di display Compatible with every display model Compatible avec tous les types d'écrans Data 17.11. 2021 Pagina 1/8...
- Page 2 ISTRUZIONI USO E MONTAGGIO USE AND ASSEMBLY INSTRUCTIONS FURIOUS for Panasonic GX0 model year 2019 (E-Bike: Flyer Uproc 7) RIMUOVERE LA BATTERIA dall’ E-BIKE REMOVE THE BATTERY from the E-BIKE RETIREZ LA BATTERIE de l' E-BIKE Rimuovere la vite che fissa la pedivella Rimuovere la pedivella con l’apposito estrattore per perno isis Remove the screw that secures the crank arm...
- Page 3 LATO DESTRO RIGHT SIDE CÔTÉ DROIT Rimuovere la vite che fissa la pedivella Rimuovere la pedivella con l’apposito estrattore per perno isis Remove the screw that secures the crank arm Remove the crank arm with the appropriate extractor for isis pin Retirez la vis qui fixe le bras de manivelle Retirer la manivelle avec l'extracteur spécial “...
- Page 4 INDIVIDUARE I CONNETTORI INTERESSATI La freccia VERDE indica il connettore che collega al sensore di velocità. (seguire il filo per verificare!) La freccia ROSSA indica il collegamento alle Luci. IDENTIFY THE CONNECTORS CONCERNED The GREEN arrow indicates the connector that connects to the speed sensor.
- Page 5 Collegare il filo Rosso con il filo Giallo come da foto 1 Eseguire una saldatura a stagno e isolare con guaina termorestringente. Se il filo rosso fosse collegato alle luci dell'ebike, eseguire la connessione come dalla foto 2 Connect the red wire to the yellow wire as shown in photo 1 Carry out tin soldering and insulate with heat shrink tubing.

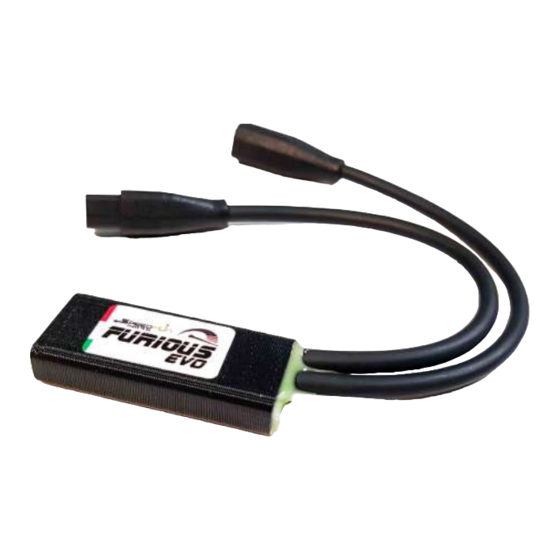

- Page 6 GENERAL INFO The purpose of Furious EVO is to manipulate the rotation speed of the rear wheel and to communicate to the engine a speed always lower than 25 kmH in order to obtain a very hi real speed with active engine. The maximum speed limit will therefore be dictated by the power of the engine added to the power expressed by your legs.
- Page 7 FURIOUS EVO Vers. ON/OFF LIGHTS Furious Evo Vers. On / Off Lights must be connected as a bridge between the speed sensor and the motor and to the Lights output of the motor. - Can be activated and deactivated at will with the ebike's Lights function. Lights on = Activated.
- Page 8 IMPORTANT Une fois le déclencheur Speedfun installé, le vélo électrique, dépassant la limite de 25 kmH, est assimilé à un cyclomoteur et à ce titre, s'il circule dans les lieux publics, il nécessite un agrément/enregistrement par la Motorisation Civile, il est soumis au paiement de la taxe de circulation et de la couverture d'assurance, il doit avoir une plaque d'immatriculation, ne peut pas circuler sur les pistes cyclables et le conducteur est obligé...
