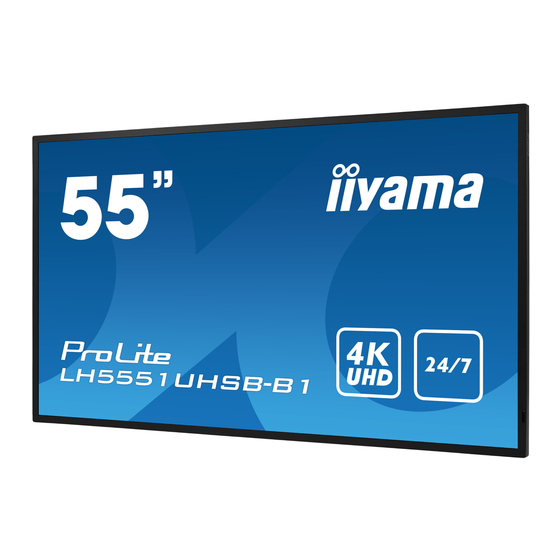

- Page 1 USER MANUAL ENGLISH Thank you very much for choosing the iiyama LCD monitor for signage. We recommend that you take a few minutes to read this comprehensive manual carefully before installing and switching on the monitor. Please keep this manual in a safe place for...
- Page 3 IIYAMA CORPORATION: Wijkermeerstraat 8, 2131 HA Hoofddorp, The Netherlands Model No. : PL5551UH We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com You can access the Web page of different countries from there.
-
Page 4: Table Of Contents
CONNECTING YOUR THE MONITOR ........17 COMPUTER SETTING ..............20 OPERATING THE MONITOR .............21 ADJUSTMENT MENU CONTENTS ..........23 STANDBY FEATURE ..............31 TROUBLE SHOOTING ..............32 RECYCLING INFORMATION .............33 APPENDIX ..................34 SPECIFICATIONS : ProLite LH5551UHSB ........34 DIMENSIONS : ProLite LH5551UHSB ..........35 COMPLIANT TIMING ..............35... -
Page 5: For Your Safety
DO NOT PUT ANY OBJECT INTO THE MONITOR Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug your monitor immediately and contact your dealer or iiyama service center. Using the monitor with any object inside may cause fire, electric shock or damage. - Page 6 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fire, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located. Please also ensure that you do not place any heavy objects on the monitor, and that all cables are routed such that children may not pull the cables and possibly cause injury.
-
Page 7: Special Notes On Lcd Monitors
SPECIAL NOTES ON LCD MONITORS The following symptoms are normal with LCD monitors and do not indicate a problem. NOTE - When you first turn on the LCD monitor, the picture may not fit in the display area because of the type of computer that is used. In this case, adjust the picture position to the correct position. - You may find slightly uneven brightness on the screen depending on the desktop pattern you use. - Page 8 1 hour and there is evidence of a residual or “ghost” image, you should turn off the monitor for 1 hour in order to clear the residual image. For all LFD products, iiyama recommends displaying moving images and utilising a moving screen saver at regular intervals whenever the screen is idle. You could also turn off the monitor when not in use to assist the prevention.
-
Page 9: Customer Service
If you drop any materials or liquids such as water into the monitor when cleaning, WARNING unplug the power cable immediately and contact your dealer or iiyama service center. For safety reasons, turn off the power switch and unplug the monitor before you CAUTION clean it. -
Page 10: Before You Operate The Monitor
CHECKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama office. Power Cable* ... -
Page 11: Unpacking
UNPACKING CAUTION Moving the monitor requires at least two people. If not, it may drop and could result in a serious injury. BEFORE YOU OPERATE THE MONITOR 7... -
Page 12: Controls And Connectors : Monitor
CONTROLS AND CONNECTORS : MONITOR <Back Controller> Input Select INPUT Button Up Button Down Button + Button - Button MENU Menu Button Power Button Enter : Menu / + Button Return(Exit) : - / Input Button <Front> Remote Sensor Remote Sensor Green Lighting : Normal Operation If turn off the Power Button on the Remote Control and... - Page 13 <Back> INPUT MENU Option Slot Option Slot SPDIF SPDIF SPDIF Connector OUTPUT DP OUT DisplayPort DisplayPort Connector HDMI1 HDMI HDMI Connector HDMI2 HDMI HDMI Connector DisplayPort DisplayPort Connector DisplayPort DisplayPort Connector USB2.0 SERVICE USB Connector (5V, 500mA) RJ45 RJ45 Connector IR IN IR Connector IR OUT IR Connector...
-
Page 14: Installation
INSTALLATION CAUTION Follow the manual instructions for the type of mount you have selected. Refer all servicing to qualified service personnel. Moving the monitor requires at least two people. Before installing, please make sure the wall is strong enough to hold the necessary weight of the monitor and the mount. -
Page 15: Controls And Connectors : Remote Control
CONTROLS AND CONNECTORS : REMOTE CONTROL Power On/Switch to standby INPUT INPUT NUMBER Enter digits S MODE Not available on this model. Navigates through submenus and settings. : Up Button : Down Button : Left Button IDSET IDSET : Right Button S MODE S MODE P MODE... -
Page 16: Preparing The Remote Control
PREPARING THE REMOTE CONTROL To use the remote control, insert the two dry batteries. CAUTION Do not use any other batteries other than those specified in this manual for the Remote Control. Do not insert old and new batteries together in the Remote Control. Make sure that the terminals match the "+" and "-" indications in the battery compartment. ... - Page 17 NOTE Refer to the above instructions when taking out the batteries. Replace with new batteries when the Remote Control does not work close to the monitor. Use AAA dry batteries. Risk of explosion if battery is replaced by an incorrect type. ...
-
Page 18: Basic Operation
BASIC OPERATION Turning the monitor ON [Remote Control] The monitor is turned On and the Power Indicator turns to Green when you press the POWER button on the monitor or INPUT INPUT the Remote Control. The monitor is turned Off and the Power Indicator turns to Red when you press the POWER button on the monitor or the Remote Control. - Page 19 Move the cursor vertically [Remote Control] Select adjustment by pressing the button on the monitor or the remote control while the menu page is INPUT INPUT displayed on the screen. [Monitor] IDSET IDSET S MODE S MODE P MODE P MODE MENU MENU...
- Page 20 Adjust the volume of sound [Remote Control] Press the + / - button on the monitor or the remote control to adjust the volume of sound when the menu page is not INPUT INPUT displayed on the screen. [Monitor] IDSET IDSET S MODE...
-
Page 21: Connecting Your The Monitor
An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama office. - Page 22 [ Connection example with the peripheral device ] CAUTION Turn off the power switch and unplug the monitor and peripherals before connection to avoid electric shock or damage. NOTE Refer to the user manual of peripherals at the same time. Ensure you have the necessary cables as required. INPUT MENU 18 BEFORE YOU OPERATE THE MONITOR...
- Page 23 [ About the daisy chain ] Monitor control connection RS-232C MONITOR1 MONITOR2 [RS-232C] [RS-232C IN] [RS-232C OUT] [RS-232C IN] Digital video connection DisplayPort MONITOR1 MONITOR2 [DP] [DP IN] O P [ To setup the network ] 1. Switch on the router and switch on its DHCP setting. 2.
-
Page 24: Computer Setting
COMPUTER SETTING Signal Timing Change to the desired signal timing listed on page 35: COMPLIANT TIMING. 20 BEFORE YOU OPERATE THE MONITOR... -
Page 25: Operating The Monitor
OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 35. You are also able to adjust the picture by following the button operation shown below. - Page 26 NOTE The EXIT button on the remote control or the + button on the monitor can be used to return previous menu item. Any changes are automatically saved in the memory when the On Screen Display disappears. Turning off the power should be avoided while using the Menu. All adjustments have only one setting which applies to all signal timings.
-
Page 27: Adjustment Menu Contents
ADJUSTMENT MENU CONTENTS Picture Picture Brightness Contrast Color Sharpness Audio Black level Gamma selection Tiling Overdrive Aspect Full Configuration1 Configuration2 Advanced option Adjustment Item Problem / Option Button to Press Too dark Brightness* Too bright Too dull Contrast Too intense Too soft Sharpness Too sharp... - Page 28 Color Picture Color temperature 9300K Color control Color Audio Tiling Configuration1 Configuration2 Advanced option Adjustment Item Problem / Option Button to Press 6500K 7500K 9300K Color temperature 11000K Native (Original color temperature) User preset Set user color. Color control Too weak Green Too strong Blue Audio Picture...
- Page 29 Picture H position V position Color OSD Transparency Audio OSD turn off OSD Rotation Landscape Language English Tiling Power Off Configuration1 Configuration2 Advanced option Adjustment Item Problem / Option Button to Press OSD is too left H position OSD is too right OSD is too low V position OSD is too high...
- Page 30 Tiling * Picture Tiling Disable H monitors Color V monitors Audio H Position V Position H Fill Tiling V Fill Frame comp. Configuration1 Switch on delay Configuration2 Advanced option Adjustment Item Problem / Option Button to Press Disable Disable the Tiling. Tiling Enable the Tiling.
- Page 31 With this function you can create a single large-screen matrix (video wall) that consists of up to 100 sets of this monitor (up to 10-sets on the vertical and 10-sets on the horizontal sides). However, the image quality may be degraded, display speed may be slowed down, or noise may occur and pictures may not be displayed correctly.
- Page 32 Configuration1 Picture Switch on state Forced on Anti Image Retention Color RS232-routing RS232 Audio Disable Standby control Boot on source Last input Power LED light Tiling Factory reset Configuration1 Configuration2 Advanced option Adjustment Item Problem / Option Button to Press The monitor will remain off when the power cord is Power off connected to a wall outlet.
- Page 33 Configuration1 Configuration2 Advanced option Adjustment Item Problem / Option Button to Press iiyama Logo does not display when the monitor is turned on. Logo iiyama Logo displayed when the monitor is turned on. Set ID to the monitor. Monitor ID...
- Page 34 Advanced option Picture Date and Time Schedule Color HDMI with One Wire Audio Auto signal detection Mode 1 Standby Mode FM upgrade Tiling Configuration1 Configuration2 Advanced option Adjustment Item Problem / Option Button to Press Set the day of the week and time. Date and time Monday / Tuesday / Wednesday / Thursday / Friday / Saturday / Sunday Up to 7 schedules can be set.
-
Page 35: Standby Feature
STANDBY FEATURE This product features the standby function. When activated, it automatically reduces unnecessary power consumption of the monitor when your computer is not in use. There is a standby step the monitor takes as described below. The standby function, including any timer settings is configured by the operating system. Check your operating system manual for information on how this can be configured. -
Page 36: Trouble Shooting
MONITOR or if the problem persists. 3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem... -
Page 37: Recycling Information
RECYCLING INFORMATION For better environment protection please don't dispose your monitor. Please visit our web site: www.iiyama.com for monitor recycling. RECYCLING INFORMATION 33... -
Page 38: Appendix
APPENDIX Design and specifications are subject to change without prior notice. SPECIFICATIONS : ProLite LH5551UHSB Size Category 55" Panel technology Size Diagonal: 54.6" (138.8cm) Pixel pitch 0.315mm H × 0.315mm V Brightness 800cd/m (Typical) Panel Contrast ratio 1200 : 1 (Typical) Viewable angle Horizontal : 178 degrees, Vertical: 178 degrees (Typical) Response time 8ms (Typical, Gray to Gray) Display Colors Approx.1.07 G Sync Frequency Horizontal: 15.0-160.0kHz, Vertical: 23-86Hz Native Resolution 3840 ×... -
Page 39: Dimensions : Prolite Lh5551Uhsb
DIMENSIONS : ProLite LH5551UHSB 948.0mm/37.3” 4xM6 SCREW HOLE 1236.5mm/48.7” (VESA MOUNT) 1212.5mm/47.7” 400.0mm/15.7” 335.0mm/13.2” COMPLIANT TIMING Timing VGA 640x480 31.5 60.0 25.175 SVGA 800x600 37.9 60.0 40.000 XGA 1024x768 48.4 60.0 65.000 WXGA 1280x768 47.8 60.0 79.500 QVGA 1280x960 60.0 60.0...
