Summary of Contents for Iiyama ProLite LH5580S
-

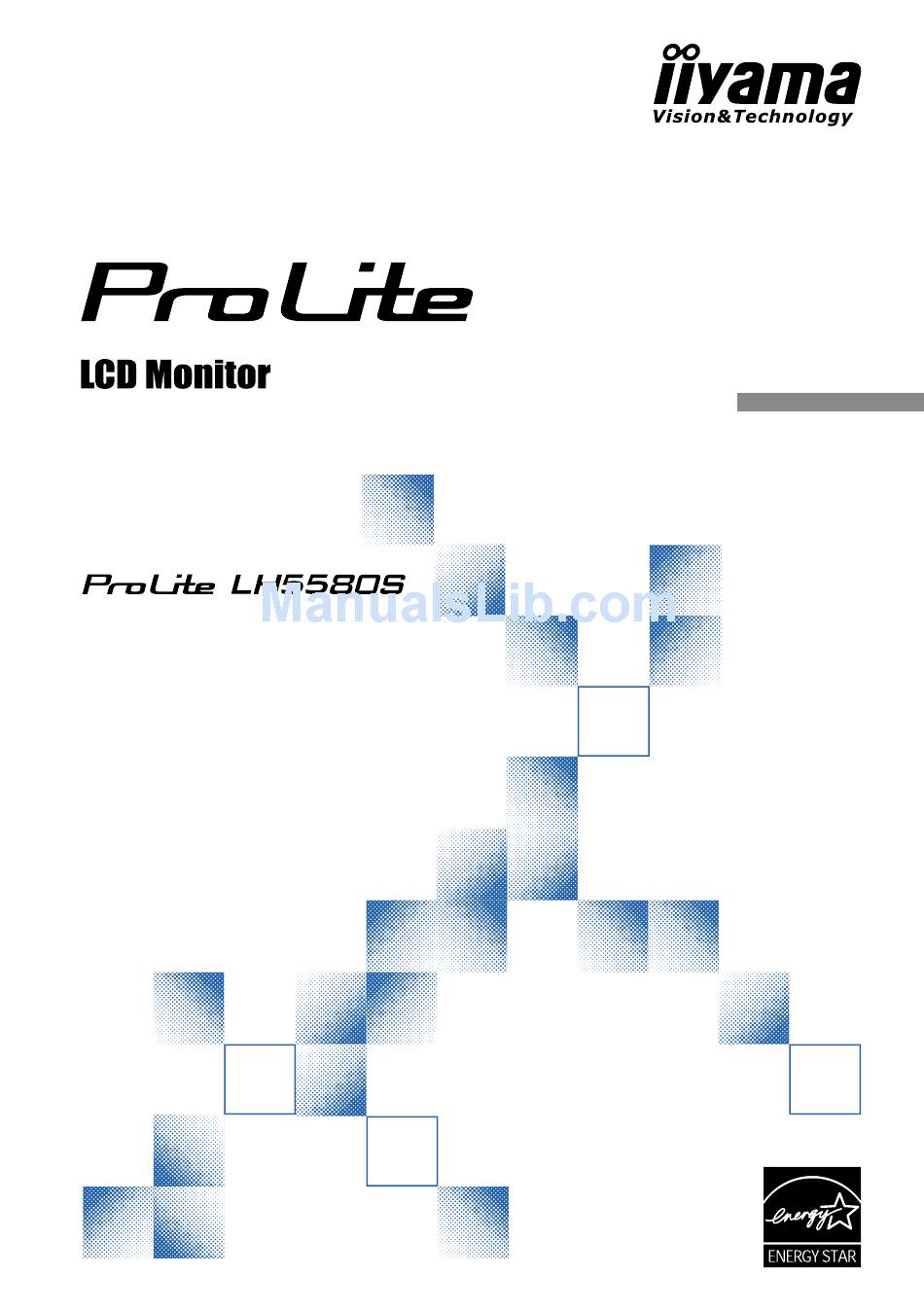

Page 1: User Manual
USER MANUAL ENGLISH Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to read this comprehensive manual carefully before installing and switching on the monitor. Please keep this manual in a safe place for... -
Page 2: Table Of Contents
TABLE OF CONTENTS FOR YOUR SAFETY ................1 SAFETY PRECAUTIONS..............1 SPECIAL NOTES ON LCD MONITORS .........3 CUSTOMER SERVICE ..............4 CLEANING ..................4 BEFORE YOU OPERATE THE MONITOR ..........5 FEATURES..................5 CHECKING THE CONTENTS OF THE PACKAGE ......6 UNPACKING ...................7 CONTROLS AND CONNECTORS : MONITOR ......8 INSTALLATION ................10 CONTROLS AND CONNECTORS : REMOTE CONTROL ...17 PREPARING THE REMOTE CONTROL........18... -
Page 3: For Your Safety
Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug your monitor immediately and contact your dealer or iiyama service center. Using the monitor with any object inside may cause fire, electric shock or damage. - Page 4 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fire, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located.
-
Page 5: Special Notes On Lcd Monitors
Power Switch for hours. Contact your dealer or iiyama service center for the backlight replacement when the screen is dark, flickering or not lighting up. Never attempt to replace it by yourself. -
Page 6: Customer Service
If you drop any materials or liquids such as water into the monitor when cleaning, WARNING unplug the power cable immediately and contact your dealer or iiyama service center. For safety reasons, turn off the power switch and unplug the monitor before you CAUTION clean it. -
Page 7: Before You Operate The Monitor
BEFORE YOU OPERATE THE MONITOR FEATURES Supports Resolutions up to 1920 × 1080 High Contrast 4000:1 / Brightness 450cd/m Digital Character Smoothing Automatic Set-up Stereo Speakers 2 × 10W Stereo Speakers Plug & Play VESA DDC2B Compliant ®... -
Page 8: Checking The Contents Of The Package
CHECKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama office. -
Page 9: Unpacking
UNPACKING Before unpacking your monitor, prepare a stable, level, and clean surface near a wall outlet. Set the LCD Monitor box in an upright position and open from the top of the box before removing the top cushions. Remove the carton holders. Remove the top cushion and take the accessories box and the Monitor out. -
Page 10: Controls And Connectors : Monitor
CONTROLS AND CONNECTORS : MONITOR <Back Controller> Detects ambient lighting conditions around the Monitor and adjusts Ambient Light Sensor screen brightness automatically when the Ambient Light Sensor function is activated. Power Button MUTE Mute Button VIDEO SOURCE Input Select Button + Button - Button Up Button... - Page 11 <Back> <Left Side> MAIN POWER SWITCH POWER SWITCH Main Power Switch AC IN AC-INLET AC Connector 1Upstream(SeriesB) USB Hub USB Connector 2Downstream(SeriesA) DisplayPort (DP) DisplayPort DisplayPort Connector HDMI1/HDMI2 HDMI HDMI Connector DVI-D IN DVI-D 24pin DVI-D 24pin Connector DVI-D OUT DVI-D 24pin DVI-D 24pin Connector D-SUB/YPbPr IN...
-
Page 12: Installation
INSTALLATION CAUTION Follow the manual instructions for the type of mount you have selected. Refer all servicing to qualified service personnel. Moving the monitor requires at least two people. Before installing, please make sure the wall is strong enough to hold the necessary weight of the display and the mount. - Page 13 [TO AVOID THE MONITOR FROM FALLING] CAUTION When installing the monitor using the tabletop stands (option), take measures to prevent the monitor from falling over in case of an earthquake or other disaster to lessen the probability of injury and damage resulting from the fall.
- Page 14 [USING THE WALL MOUNT OR CEILING MOUNT] Lay the screen face down Lay the protective sheet on a table, which was wrapped around the monitor when it was packaged, beneath the screen surface so as not to scratch the screen surface. This device cannot be used or installed without the Tabletop Stand or other mounting accessory.
- Page 15 [PREVENTING THE HANDLES FROM TOUCHING THE WALL] By attaching the handles in the opposite orientation, you can reduce the depth of the monitor. 1. Remove the screws that are holding the handles. Handle Screws Screw x 4 2. Attach the handles in the opposite orientation and secure them using the screws you have removed in step 1.
-
Page 16: Wall Mounting
[USING THE WALL MOUNT SPACERS] When the option slot cover or the stand guide frames touch the wall or block the heat dissipating holes in the rear of the monitor, use the wall mount spacers (accessories) to mount the metal bracket (commercially available). - Page 17 [INSTALLING IN THE PORTRAIT OR FACE-UP POSITION] The monitor can be installed in the portrait or face-up position. Ensure that the monitor is oriented as shown below. CAUTION • The operating environmental condition (temperature) when the monitor is in the portrait or face-up position is 0°C to 35°C.
- Page 18 [ATTACHING THE CORNER PROTECTORS] CAUTION It is recommended to use the corner protectors (accessories). When installing the monitor, hold its body firmly. If you hold the monitor by the corner protectors when moving it, the monitor may detaches and fall from the corner protectors, causing injuries. Attach the corner protectors using the accessory screws (c) Corner protector (c): Screw for attaching the corner protector (M3, 4 pcs.)
-
Page 19: Controls And Connectors : Remote Control
CONTROLS AND CONNECTORS : REMOTE CONTROL POWER* Turns the monitor ON and OFF. INPUT* Selects the source. PICTURE MODE Selects the picture mode. See page 28. Provides resolution, source, audio DISPLAY input, picture size and color system mode information. Confirms your selection or save changes. -
Page 20: Preparing The Remote Control
PREPARING THE REMOTE CONTROL To use the remote control, insert the two dry batteries. CAUTION Do not use any other batteries other than those specified in this manual for the Remote Control. Do not insert old and new batteries together in the Remote Control. Make sure that the terminals match the "+"... -
Page 21: Basic Operation
BASIC OPERATION Turning the monitor ON The monitor is turned On and the Power Indicator turns to Green when you press the POWER Button on the monitor or the Remote Control. The monitor is turned Off and the Power Indicator turns to Red when you press the POWER Button on the monitor or the Remote Control. - Page 22 Move the cursor vertically Select adjustment by pressing the Button while the menu page is displayed on the screen. [Monitor] [Remote Control] Move the cursor horizontally Select menu or setting, or perform the adjustment by pressing the + / - Button while the menu page is displayed on the screen.
- Page 23 Adjust the volume of sound Press the + / - Button to adjust the volume of sound when the menu page is not displayed on the screen. [Monitor] [Remote Control] Switch the input signal This is activated when you successively press the INPUT Button on the monitor or INPUT Button on the Remote Control as follows: [Monitor] [Remote Control]...
-
Page 24: Connecting Your Monitor
An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama office. - Page 25 [ Connection example with the peripheral device ] CAUTION Turn off the power switch and unplug the monitor and peripherals before connection to avoid electric shock or damage. NOTE Refer to the user manual of peripherals at the same time. ...
- Page 26 [PREVENTION OF DISCONNECTION OF HDMI CABLE] For connecting an HDMI cable to the connector on the monitor, it is recommended to secure the cable using an accessory clamper to prevent accidental disconnection. 1. Connect an HDMI cable to the connector on the monitor. 2.
- Page 27 [CONNECTING THE POWER SOURCE] Before making connections Check that the main power switch is off. NOTE Please refer to “Important Safety Instructions” and “Installation, Ergonomics, Care, and Service” in this manual for proper selection of the AC power cord. Use the clamper to prevent accidental disconnection of the power cord.
-
Page 28: Computer Setting
Change to the desired signal timing listed on page 55 : COMPLIANT TIMING. Windows XP/Vista/7/8 Plug & Play The iiyama LCD monitor complies with DDC2B of VESA standard. The Plug & Play function runs on Windows XP/Vista/7/8 by connecting the monitor to DDC2B compliant computer with the Signal Cable supplied. -
Page 29: Operating The Monitor
OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 55. You are also able to adjust the picture by following the button operation shown below. For more detailed adjustments, see page 47 for SCREEN ADJUSTMENTS. - Page 30 [CONTROL LOCK MODE] Back Controller Button: Pressing and holding the buttons for about 3 seconds when Menu is not displayed, will lock/unlock the Back Controller Button Lock function. Direct * Available for Remote Control only. Picture Size: Press the SIZE button when Menu is not displayed. Normal size of each signal Recommend...
-
Page 31: Adjustment Menu Contents
ADJUSTMENT MENU CONTENTS PICTURE Adjustment Item Problem / Option Button to Press Too dark BRIGHTNESS* Too bright Too dull CONTRAST* Too intense Too soft SHARPNESS Too sharp NOTE If you increase the sharpness setting value too much, lines may appear double. In such a case, decrease the sharpness setting value. - Page 32 PICTURE Adjustment Item Problem / Option Button to Press Reddish COLOR TEMPERATURE * Bluish Too weak COLOR CONTROL* GREEN Too strong BLUE Select the gamma mode. NATIVE / S GAMMA / 2.2 / 2.4 / OPTION / PROGRAMMABLE. PROGRAMMABLE can change the GAMMA characteristic GAMMA SELECTION curve via a computer.
- Page 33 PICTURE Adjustment Item Problem / Option Button to Press When a light source such as a light and a window is behind the monitor, the rear sensor takes precedence. Select this setting when there is a LIGHT FROM light source such lighting equipment BACK* and a window behind the monitor.
- Page 34 SCREEN FULL Adjustment Item Problem / Option Button to Press Too far to the left H POSITION Too far to the right Too low V POSITION Too high Too narrow CLOCK* Too wide CLOCK PHASE* To correct flickering text or lines The image is stretched to full the screen FULL regardless of its aspect ratio.
- Page 35 SCREEN FULL Adjustment Item Problem / Option Button to Press Use this setting when AUTO SETUP and AUTO V RESOLUTION* ADJUST cannot obtain the vertical resolution of the input signal. Return to Menu. SCREEN RESET Reset all the SCREEN settings to the factory defaults.
- Page 36 PIP* Adjustment Item Problem / Option Button to Press SBS ASPECT PIP MODE SBS FULL SMALL Reduce the size of the Sub screen. PIP SIZE MIDDLE Middle the size of the Sub screen. Increase the size of the Sub screen. LARGE MAIN AUDIO Select the main audio.
- Page 37 CONFIGURATION1 Adjustment Item Problem / Option Button to Press The screen size, horizontal/vertical position, clock, clock phase, AUTO SETUP* and input signal level are automatically adjusted. The horizontal position, vertical position, and clock phase are automatically adjusted at the AUTO ADJUST* time of the timing switching.
- Page 38 CONFIGURATION1 Adjustment Item Problem / Option Button to Press The screen slightly moves horizontally and vertically at regular intervals to reduce the effect of the image persistence. 10-900s MOTION is turned off. When you select a time period in the MOTION setting, the monitor enlarges the image and moves it horizontally and vertically.
- Page 39 CONFIGURATION1 Adjustment Item Problem / Option Button to Press Return to Menu. Reset all the PICTURE, SCREEN, AUDIO, CONFIGURATION1, CONFIGURATION2, and FACTORY RESET ADVANCED OPTION settings to the factory defaults. The LANGUAGE, CONTROL TIME OUT, MONITOR NOTE ID, SCHEDULE, and DATE AND TIME aren’t reset. Only D-SUB input.
- Page 40 CONFIGURATION2 Adjustment Item Problem / Option Button to Press RS-232C Select the RS-232C. SERIAL CONTROL Select the LAN. Select whether to use DHCP client or not. DHCP CLIENT DHCP CLIENT is turned off. When DHCP CLIENT is OFF, set the IP address IP ADDRESS of the monitor.
- Page 41 CONFIGURATION2 Adjustment Item Problem / Option Button to Press OSD is too left OSD H POSITION OSD is too right OSD is too low OSD V POSITION OSD is too high H MIRROR V MIRROR OSD ROTATION Enable and disable the information OSD display. OFF, 3 - 10 seconds INFORMATION The information OSD display shows a message when the input...
- Page 42 ADVANCED OPTION UNDERSCAN Adjustment Item Problem / Option Button to Press If the monitor fails to recognize the input signal resolution correctly, you can select a proper resolution manually. Only when a signal having a resolution close to any of the following values from three groups, the INPUT values in the most appropriate group are selectable.
- Page 43 ADVANCED OPTION UNDERSCAN Adjustment Item Problem / Option Button to Press Select the IP conversion mode. Interlace signals are converted into progressive signals. PROGRESSIVE SCAN Select this setting for normal cases. CONVERSION* Interlace signals are displayed without being converted. INTERLACE Though this setting is suitable for motion images, still images aren’t displayed properly.
- Page 44 ADVANCED OPTION UNDERSCAN Adjustment Item Problem / Option Button to Press The statuses of the cooling fan, brightness, and internal temperature are displayed. The cooling fan starts running according to the operating NOTE HEAT STATUS temperature or when COOLING FAN is ON in the SCREEN SAVER menu.
- Page 45 ADVANCED OPTION UNDERSCAN Adjustment Item Problem / Option Button to Press The 1 upstream ports and distribute the signal to 2 EXTERNAL downstream ports. USB UPSTREAM NOTE This function can not change. Return to Menu. Reset all the ADVANCED OPTION RESET settings to the ADVANCED factory defaults.
- Page 46 [HOW TO SET UP SCHEDULE] Check box Radio button Program number selection When the cursor is in any of the check boxes showing the program numbers 1 to 7 on the left side of the screen, press the UP (▲) or DOWN (▼) button to move the cursor up or down to select the program number you want to set.
- Page 47 [SUPPLEMENTAL INFORMATION OF THE AUTO BRIGHTNESS FUNCTION] To control multiple monitors collectively In such a case where the tiling function is used, you can control the auto brightness function by sharing the detection result of the brightness sensor of a certain monitor among the connected monitors.
- Page 48 [REMOTE CONTROL NUMBERING FUNCTION] By connecting multiple monitors using RS-232C cables, you can control any one monitor or all the monitors by one remote controller. 1. Assign arbitrary ID number to each of multi-connected monitors using MONITOR ID. ID numbers 1 to 26 are selectable.
-
Page 49: Screen Adjustments
If the screen has a flicker or blur, or the picture does not fit in the display area after performing the Auto Adjust, manual adjustments are required. Both adjustments should be made by using the screen adjustment pattern (Test.bmp) obtained via the IIYAMA web site (http://www.iiyama.com). Adjust the image by following the procedure below to get the desired picture. - Page 50 Adjust the Auto Adjustment. Adjust the image manually by following procedure below when the screen has a flicker or blur, or the picture does not fit in the display area after performing the Auto Adjust. Adjust the V-Position so that the top and bottom of the picture frame will fit to the display area.
- Page 51 Adjust the Phase to correct horizontal wavy noise, flicker or blur in the zebra pattern. In case the strong flicker or blurs remain on a part of the screen, repeat steps NOTE because the Clock may not be adjusted correctly. If the flicker or blurs still remain, set the refresh rate of computer to low (60Hz) and repeat steps from again.
-
Page 52: Power Management Feature
POWER MANAGEMENT FEATURE The power management feature of this product complies with power saving requirement of ENERGY ® STAR and VESA DPMS. When activated, it automatically reduces unnecessary power consumption of the monitor when your computer is not in use. To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer. -
Page 53: Trouble Shooting
MONITOR or if the problem persists. 3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem... -
Page 54: Recycling Information
“OFF properly TIMER” will be reset. RECYCLING INFORMATION For better environment protection please don't dispose your monitor. Please visit our web site: www.iiyama.com/recycle for monitor recycling. 52 TROUBLE SHOOTING / RECYCLING INFORMATION... -
Page 55: Appendix
APPENDIX Design and specifications are subject to change without prior notice. SPECIFICATIONS Size Category 55" Panel technology Panel Size Diagonal: 54.6" (138.8cm) Pixel pitch 0.630mm H × 0.630mm V Brightness 450cd/m (Typical) Contrast ratio 4000 : 1 (Typical) Viewable angle Horizontal : 178 degrees, Vertical: 178 degrees (Typical) Response time 6.5ms (Gray to Gray) -
Page 56: Dimensions
DIMENSIONS 359.0mm/10.2” 685.0mm/27.0” 718.0mm/28.3” 617.5mm/24.3” 52.0mm/2.1” 67.5mm/2.6” 54 APPENDIX... -
Page 57: Compliant Timing
COMPLIANT TIMING Timing VGA 640x480 31.470 59.940 25.180 SVGA 800x600 37.880 60.320 40.000 XGA 1024x768 48.360 60.000 65.000 1280x720 45.000 60.000 74.250 1280x768 47.780 59.870 79.500 WXGA 1280x800 49.702 59.810 83.500 VESA SXGA 1280x1024 63.980 60.020 108.000 1366x768 47.700 60.000 85.380 1400x1050 65.320... -
Page 58: Pip Support Screen Table
PIP SUPPORT SCREEN TABLE The following table shows the combinations of signal inputs with which the “PIP” and “POP” modes function. However, these modes do not function when the screen size is “CUSTOM” or “REAL”. HDMI1 HDMI2 DVI-D D-SUB YPbPr VIDEO Main HDMI1...
