I N S TA L L AT I O N, O P E R AT I O N A N D
M A I N T E N A N C E I N S T R U C T I O N S
Ductable Comfort Units
42NH - CLZ
Heating capacity: 1 to 12 kW
Cooling capacity: 0,6 to 9 kW
Translation of the original document

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 42NH - CLZ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Carrier 42NH - CLZ

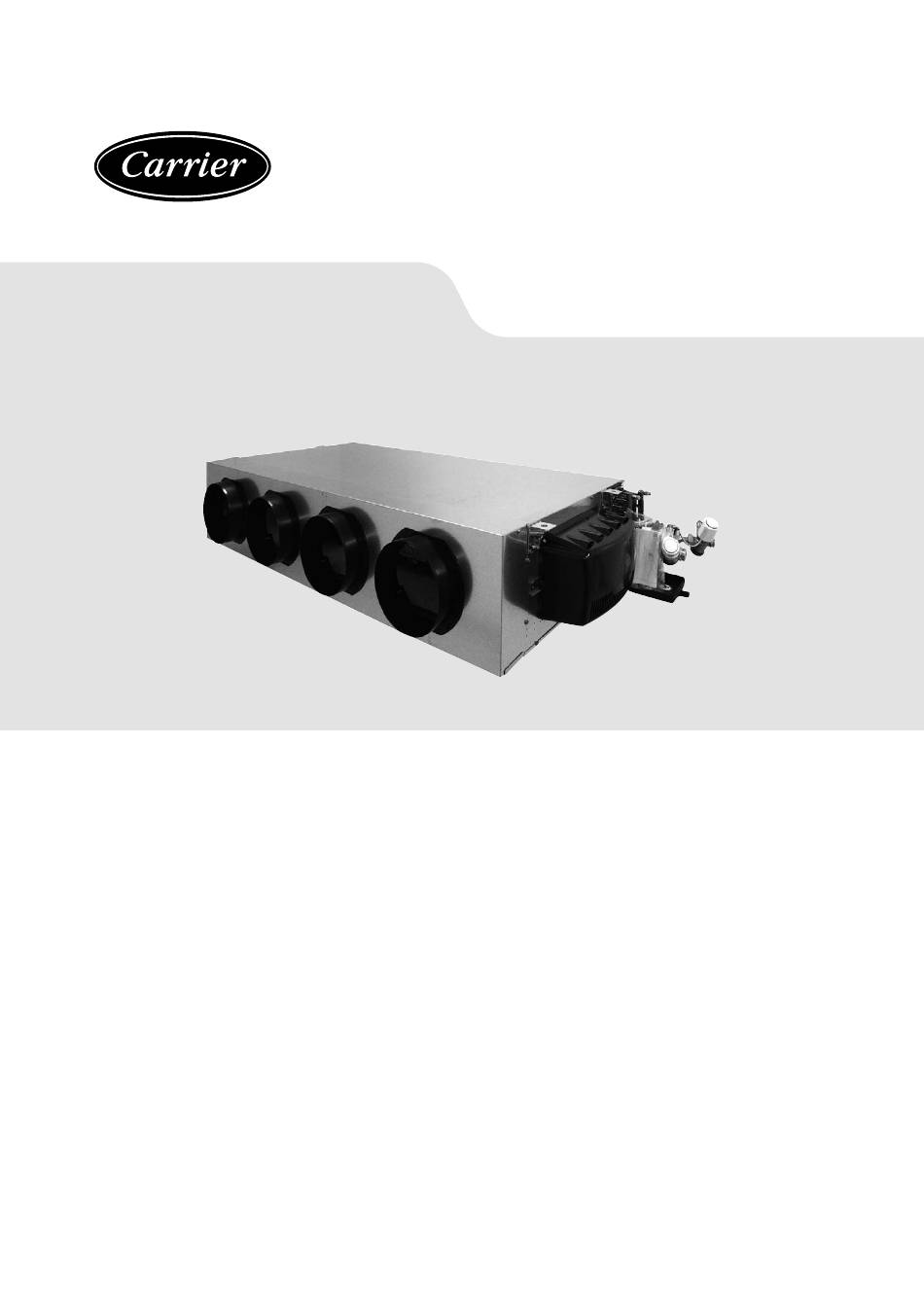

  • Page 1 M A I N T E N A N C E I N S T R U C T I O N S Ductable Comfort Units 42NH - CLZ Heating capacity: 1 to 12 kW Cooling capacity: 0,6 to 9 kW...
  • Page 2 The illustrations in this document are for illustrative purposes only and not part of any offer for sale or contract. The manufacturer reserves the right to change the design at any time without notice.
  • Page 3: Table Of Contents

    CONTENTS 1 - UNPACKING, CHECKING AND STORING THE UNIT ................15 2 - HANDLING ..............................15 3 - DESCRIPTION OF THE UNIT (FIG. 1) ......................16 3.1 - Name plate (Fig. 2)...........................16 3.2 - Models ..............................17 3.3 - Dimensions and weight ..........................17 4 - INSTALLATION AND CONNECTIONS ......................18 4.1 - Mechanical connections ...........................18 4.2 - Air connections ............................18 4.3 - Hydraulic connections ..........................18...
  • Page 4 COLIS PACKAGE +50°C COLIS / PACKAGE 35 kg COLIS PACKAGE -10°C...
  • Page 5 Fig. 1...
  • Page 6 Ref. produit/Item Ref. Designation/Description 7412910.430615 42NH239FEG-A-A An/Year N° série/Serial Nbr Composants/Components Repère/Part 2020 02461545/0001 IOM : 42NH - CLZ Moteur/Motor (Ph/Hz/V) Batterie/Hydro. coil Fluide/Fluid 1+N 50/60HZ 230V/220V+T 2T2N P. moteur/Motor P. (W) - I. (A) Elec Element (Ph/Hz/V) Maxi pressure 195 W / 245W max | 1.5A / 1.8A...
  • Page 7 Fig. 4 Fig. 5 SIZES 83,5 55,5 111,6 83,5 55,5 111,6...
  • Page 8 Fig. 6 Fig. 7 Fig. 8 VIII...
  • Page 9 Fig. 9 Fig. 10...
  • Page 10 Fig. 11 Fig. 12...
  • Page 11 Fig. 13 Fig. 14...
  • Page 12 Fig. 15 T2 : 1060 T3 : T4 : T5 : 1080 T2 : 538 T3 : T4 : T5 : 558 T2 : T3 : 131 T4 : T5 : 145...
  • Page 13 T2 : 1060 T3 : 845 T2 : 538 T3 : 558 T2 : T3 : 131 Weight 42NH U Standard 20,5 25,5 26,1 35,1 U Compact (without filter) 17,5 21,5 XIII...
  • Page 14 T6 & T7 : 754 Weight 42NH Base unit only Base unit + supply plenum 30,5 Base unit + supply plenums + linear return...
  • Page 15: Unpacking, Checking And Storing The Unit

    1 - UNPACKING, CHECKING AND STORING THE UNIT Thank you for purchasing a CARRIER unit. We trust that this unit will give you complete satisfaction. To ensure correct operation, all connections (electrical, hydraulic, etc.) must be made in accordance with best industry practice and the regulations in force in the country of installation.
  • Page 16: Description Of The Unit (Fig. 1)

    3 - DESCRIPTION OF THE UNIT (FIG. 1) a - Fan motor assembly access panel and filter - Electrics box b - Filter runner for assembly with return sleeve or - Condensate drain pan plenum k - Condensate drain pump c - Spigots - Condensate drainage d - Header couplings...
  • Page 17: Models

    3 - DESCRIPTION OF THE UNIT (FIG. 1) 3.2 - Models The 42NH is available in 4 standard models: Base unit only : Metal sleeve on the discharge (optional) and optional metal sleeve on the intake Base unit + supply plenum : Supply plenum with collars for round ducts + metal sleeve optional on intake Base unit + supply plenums + linear return : Return and supply plenum with collars for round ducts U : Return and supply plenum with lateral collar for round ducts.
  • Page 18: Installation And Connections

    (fig. 3, b). Note: CARRIER strongly recommends the use of anti-vibration resilient mounts when securing the unit, in order to reduce the transmission of vibrations through the building structure during operation.
  • Page 19 For control valves equipped with electrothermal motors, the temperature of the air surrounding the thermo-actuators should not exceed 50°C. This is especially important for units installed in confined spaces (e.g. in suspended ceilings). CARRIER shall not be liable for damage to valves caused by faulty design of the hydraulic supply network or incorrect commissioning.
  • Page 20: Condensate Pump Draining Connection

    4 - INSTALLATION AND CONNECTIONS 4.4 - Condensate pump draining connection Use a flexible and/or rigid drain pipe for a minimum slope of 1 cm/m, with a constant gradient along its whole length and no low points. Install a siphon measuring at least 5 cm to prevent any discharge of unpleasant gases or odours. 4.5 - Connecting the condensate drain pump (option) As an option, the condensate drain pump can be supplied connected but not mounted on the unit Its technical specifications are as follows:...
  • Page 21: Electrical Connections

    4 - INSTALLATION AND CONNECTIONS 4.6 - Electrical connections ■ Disconnect the electrical supply to the unit before carrying out any work and wait at least 20 mins before working on or near the heating elements. Beware of the risk of burns. Only personnel qualified to work on electrical connections may carry out installation and maintenance work.
  • Page 22 4 - INSTALLATION AND CONNECTIONS An earth connection is compulsory. CARRIER shall not be liable for incidents resulting from faulty or non-existent earthing. Always follow the wiring diagram delivered with unit. To access the electrical terminal block: Disconnect the unit from the electrical power supply Use a Phillips screwdriver or a size 7 Allen key to undo the 2 screws securing the electrics box cover (Fig.
  • Page 23 4 - INSTALLATION AND CONNECTIONS Important: The unit's compliance with the above standards does not guarantee the compliance of the installation as a whole (several other factors not relating to the unit may be involved). As a result, the installer must observe the applicable recommendations in order to guarantee compliance. General safety instructions for units with electric elements: Connecting 42NH to an air flow circuit alters its performance.
  • Page 24: Servicing And Maintenance

    42NH is equipped with a G3 filter (optional). We recommend replacing it annually. CARRIER recommends regular inspections of the filter's appearance in order to define the frequency with which it should be replaced, which varies depending on the premises and the operating conditions.
  • Page 25: Fan Motor Assembly

    5 - SERVICING AND MAINTENANCE 5.3 - Fan motor assembly Periodically check the cleanliness of the impeller and the motor. If necessary, clean them using a vacuum cleaner, taking care not to damage them. The electric motor's bearings are lubricated for life and do not require specific maintenance. ■...
  • Page 26: Regulations

    2009/125/EC (Eco Design) et règlement 327/2011/UE The Ecodesign for Energy-Related Products and Energy REGULATION (EC) No 1907/2006 (REACH) Information Regulations 2019, and following amendments UK REACH Regulations 2019 Importateur pour le Royaume-Uni : Toshiba Carrier UK Ltd, Porsham Close, Roborough, Plymouth, PL6 7DB...
  • Page 27: Testing & Warranty

    All our units are tested and proven before leaving the factory. They are guaranteed against all manufacturing defects. CARRIER shall not be held liable for any type of corrosion. CARRIER's warranty does not cover damage resulting from incorrect electrical wiring, inadequate electrical or thermal protection or failure to use a filter.
  • Page 28 Order No.: EN7606669-00, 02.2022. Supersedes order No.: New. Manufactured by: Carrier SCS, Rte de Thil, 01122 Montluel, France. Manufacturer reserves the right to change any product specifications without notice. Printed in the European Union.
