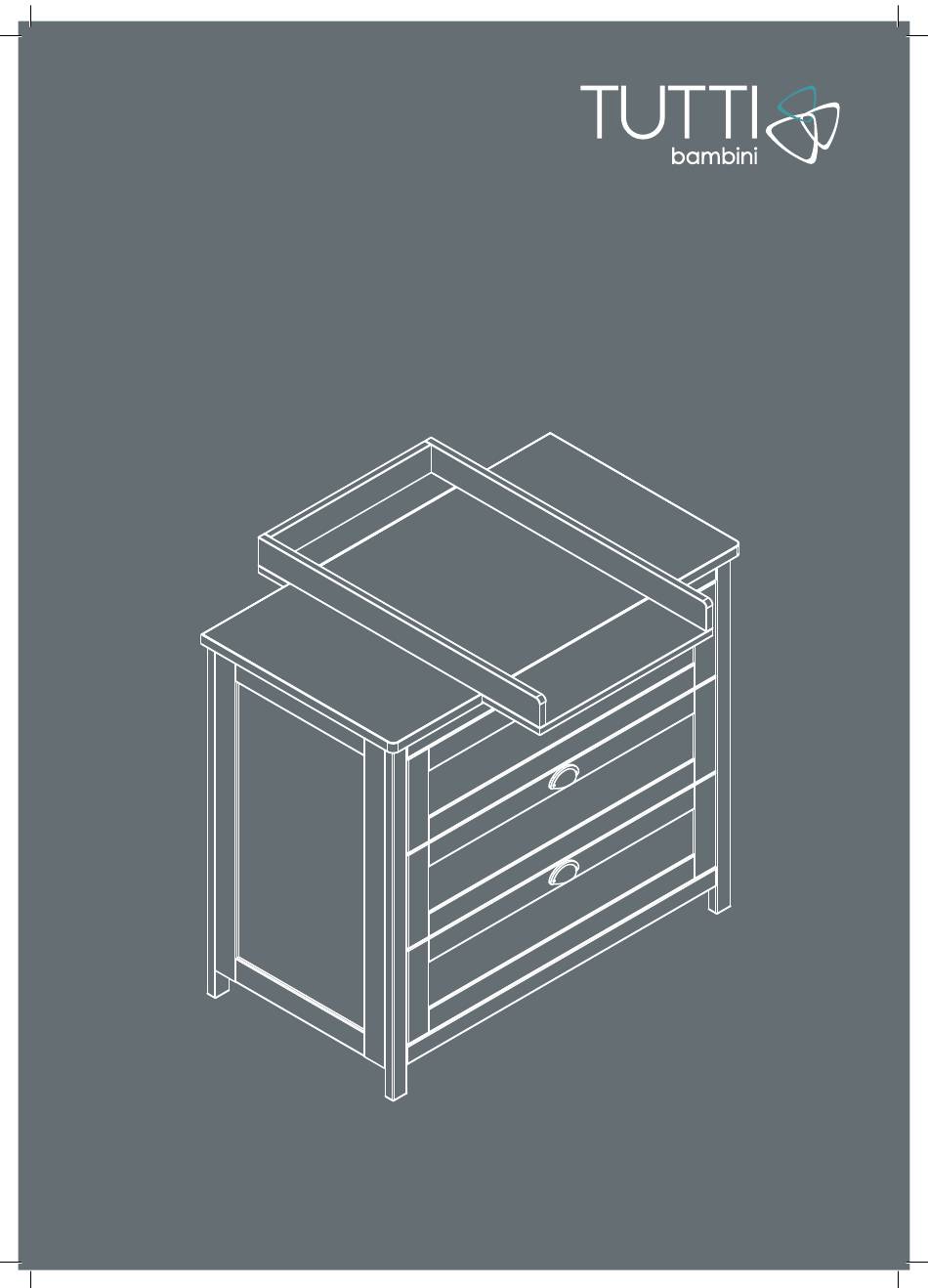

- Page 1 Verona Chest Changer Assembly Instructions IMPORTANT:RETAIN FOR FUTURE REFERENCE. READ CAREFULLY...
- Page 2 Conforms to AS/NZS 4935:2009+A1:2013 Tutti Frutti Direct Ltd. Unit 3, 1000 North Circular Road, London, UK, NW2 7JP t: +44(0)208 368 5800 e:customerservice@tuttibambini.co.uk www.tuttibambini.com Verona Chest Changer 211442 IMPORTANT:RETAIN FOR FUTURE REFERENCE. READ CAREFULLY...
- Page 3 • Damaged part number • A photo or video of the damaged part Tutti Bambini guarantee your product against faulty manufacture for a period of 12 months from date of receipt of purchase. This does not affect your statutory rights www.tuttibambini.com...
-
Page 4: Parts List
Parts List Hardware List 1pc for replacement 11pc 51 pc 4x35mm 6.5x40mm 52 pc 1 pc 15x11.5mm 4x16mm 1 pc 1 pc 10/6mm 800mm 1pc for replacement 21 pc 1 pc 3.5x16mm 200x30mm 8 pc 8x30mm www.tuttibambini.com... - Page 5 Assembling into chest E x 8 PCS A x 50 PCS Assemble metal dowels A x 50. Assemble wooden dowels E x 8. www.tuttibambini.com...
- Page 6 Assembling into chest B x 24 PCS B x 6 PCS Assemble locking nuts 24 x B. Assemble locking nuts 6 x B. B x 6 PCS B x 12 PCS Assemble locking nuts 6 x B. Assemble locking nuts 12 x B. www.tuttibambini.com...
- Page 7 Assembling into chest 13 13 D x 20 PC B x 2 PCS G x 11 PCS Assemble screw 20 x D. Assemble locking nuts 2 x B and 11 x G. K x 3 PCS Attach handle 3 x K to drawers www.tuttibambini.com...
- Page 8 Assembling into chest H x 1 PC 4x16mm I x 1 PC G x 1 PC Fittings to attach the strap to the wall are not provid- ed and suitable fittings for the wall type should be used. Caution: The drawer is not provided with end stops that prevent it from being pulled out of the unit www.tuttibambini.com...
- Page 9 11. The changing unit must be fixed to the wall for safe use of the product and that fastenings used should be appropriate to the wall; 12. Any additional or replacement parts are obtained from the Tutti Bambini or its distributor. Product development dictates that components may occasionally differ from the ones shown in the diagrams of these instructions.
