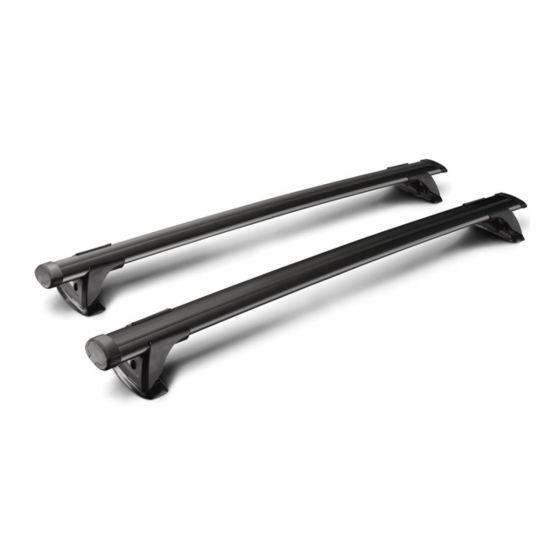

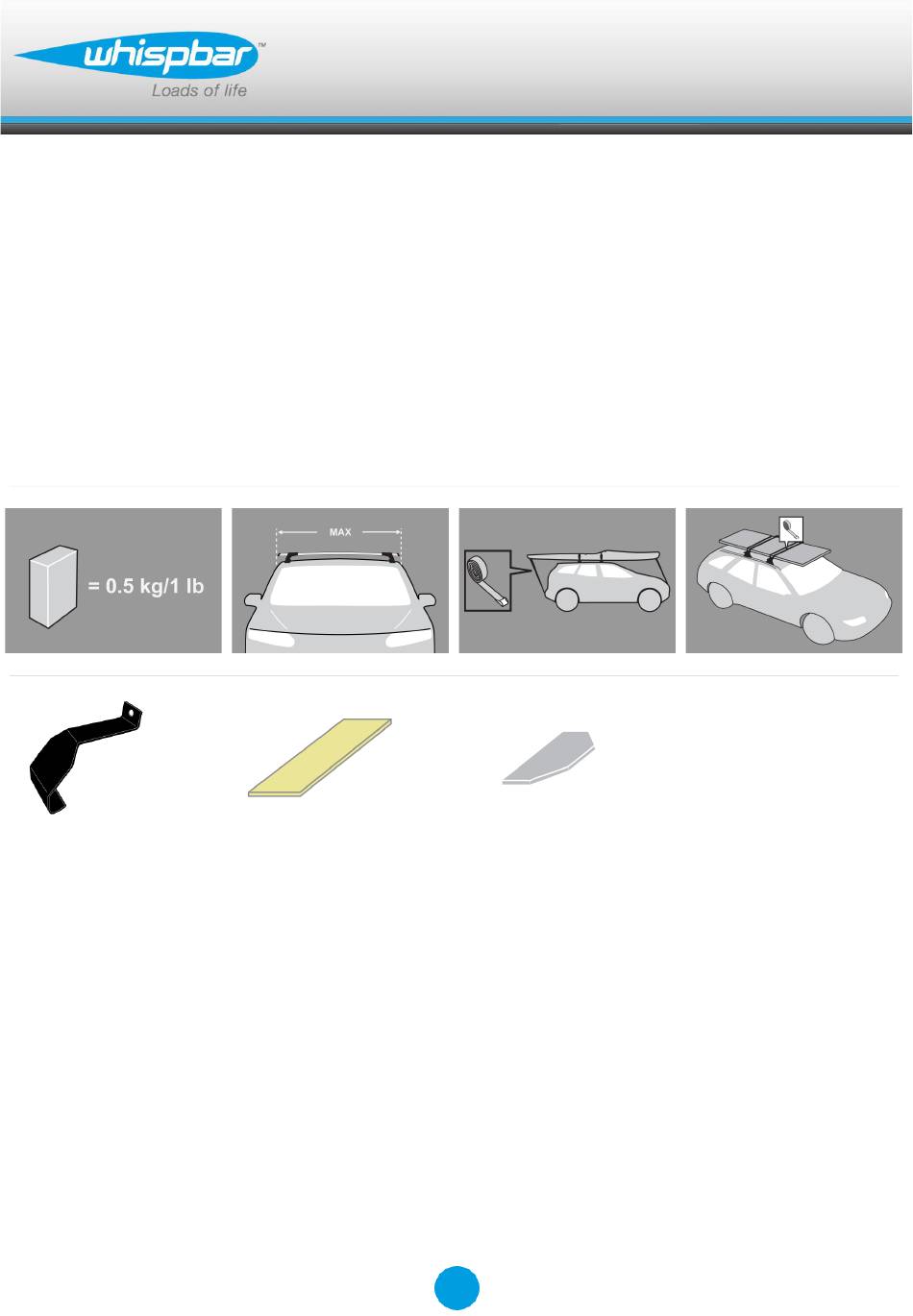

- Page 1 K592 Fitting Kit GB Fitting Instruction for Accessory Revision No:...
- Page 2 Fitting Kit K592 MAX kgs MAX kgs W/P WHD W/P WHD Dodge Durango , 5dr SUV 04- 09 Jeep Grand Cherokee , 5dr SUV 99- 04 Grand Cherokee , 5dr SUV 99- 04 Grand Cherokee , 5dr SUV 99- 04...
-
Page 3: First Time Installation
Fitting Kit K592 First Time Installation Remove parts from inside the package and check. Contact your dealer if any parts are missing or damaged. This kit fits type A, B, C and D. These instructions show type A crossbar fitted. They also apply to type B, C and D. - Page 4 Fitting Kit K592 Use keys to remove covers. Use hex screwdriver to reverse adjusting screw 10 turns. Press adjusting screw and pull crossbar legs out. Refer to the crossbar instructions for crossbar adjustment. Ensure each end of the crossbar is adjusted...
- Page 5 Fitting Kit K592 Remove locking screw. Apply protective strip as shown. Trim if required. A= Clear B= Grey Attach clamp to each leg. NOTE; clamps may have labels showing their positions on the vehicle (For example; "Front Right").
- Page 6 Fitting Kit K592 Refit locking screw so that it goes through the hole in the clamp. Do not begin to tighten the locking screw. Fit rubber pad (supplied with crossbar) to foot. Make sure the pad fits into the holes...
- Page 7 Fitting Kit K592 Fitment Place crossbar on vehicle. Minimum recommended spacing between the bars is 700mm (27 1/2") (unless otherwise stated). Please check the rear of this manual for information relating specifically to your vehicle. Clamps under rubber door frame mouldings Press adjusting screw to adjust the leg positions on the crossbar.
- Page 8 Fitting Kit K592 Tighten locking screw on both legs evenly. Check crossbar is securely attached to the vehicle. Use keys to fit and lock covers...
- Page 9 Fitting Kit K592 CAUTION: Recheck all fasteners immediately after a load is applied to the crossbars. Regularly check screws are tight.
- Page 10 Fitting Kit K592 Clean the car roof and surfaces of the product that will be in contact with the car roof. Follow the fitting instructions for fitting the product to your vehicle. Make sure all steps are carried out in order.
- Page 11 Fitting Kit K592 A loaded roof rack system can alter the performance of your vehicle. Be especially aware of the effects of side winds, changing of direction, and braking performance. Avoid rapid acceleration and deceleration. Drive carefully. Note that the total height of the vehicle increases when upright loads are carried.
- Page 12 Fitting Kit K592 Dodge Durango , 5dr SUV 04- 09 (US) -100mm 600mm 940mm 940mm -3 15/16ths" 23 5/8" 37 " 37 " Jeep Grand Cherokee , 5dr SUV 99- 04 (AU) -200mm 500mm 895mm 890mm -7 7/8" 19 11/16ths"...
