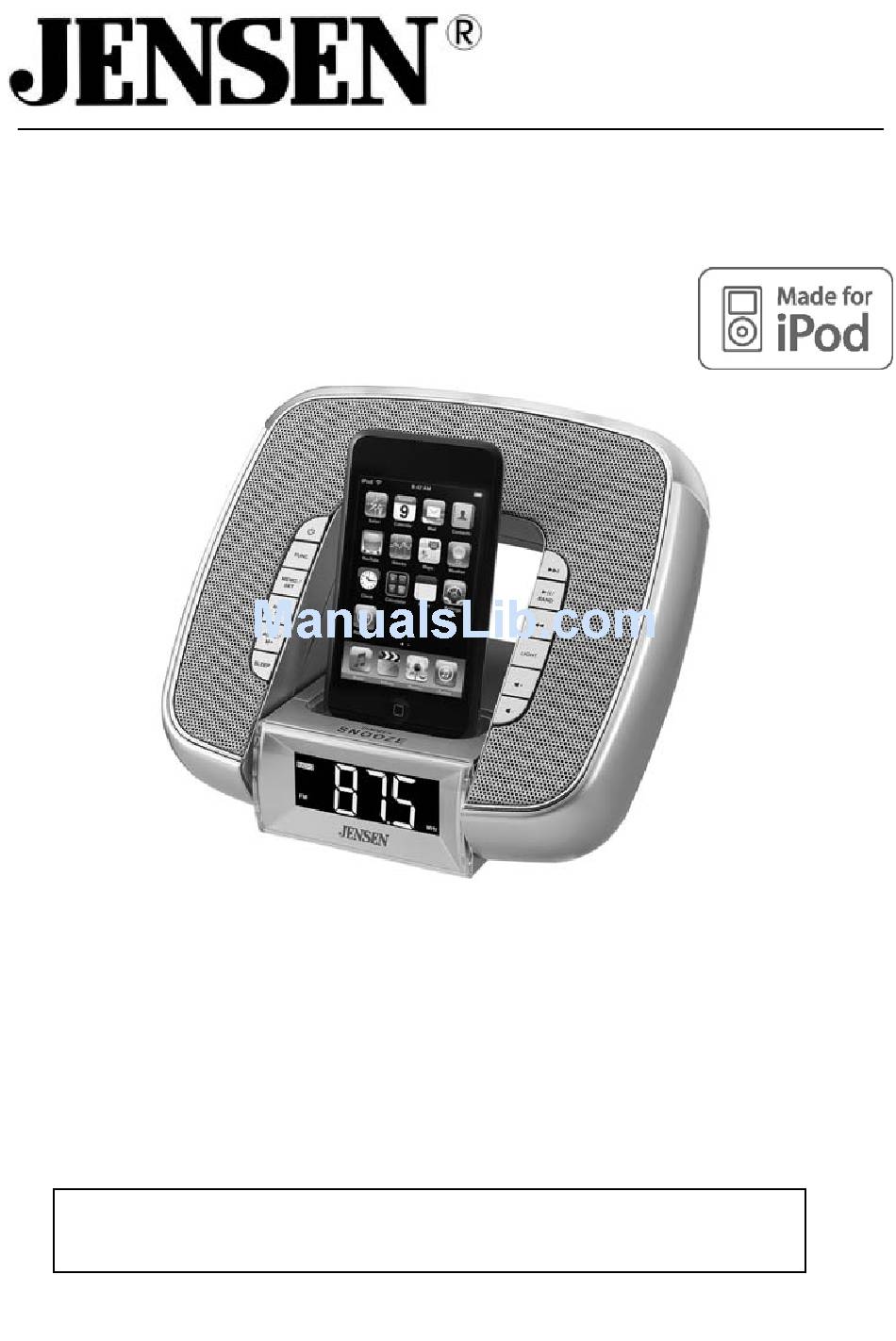

Docking Digital Clock Radio Music System For iPod
OWNER'S MANUAL
JiMS-182
(iPod not included)
Please read this Instruction Manual carefully before using the unit and
retain it for future reference

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JiMS-182 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Jensen JiMS-182

Summary of Contents for Jensen JiMS-182

  • Page 1 ® Docking Digital Clock Radio Music System For iPod OWNER’S MANUAL JiMS-182 (iPod not included) Please read this Instruction Manual carefully before using the unit and retain it for future reference...

  • Page 2: Important Instructions

    IMPORTANT INSTRUCTIONS Do not install the system near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. Only use attachments / accessories specified in these instructions.

  • Page 3: Important Notes

    Avoid installing the unit in locations described below: Places exposed to direct sunlight or close to heat radiating appliances such as electric heaters. Dusty, humid or moist places. Places subject to constant vibration. PROTECT YOUR FURNITURE This system is equipped with non-skid rubber ‘feet’ to prevent the product from moving when you operate the controls.

  • Page 4: Setting Up And Connecting

    Display Segment SETTING UP AND CONNECTING This Portable Docking System is designed to operate on 4 x 1.5V ‘AA’ (UM-3) batteries (Not included) or the included AC Adaptor. A Lithium battery (Included) is also required for the backup of the clock. A.

  • Page 5: Setting The Current Time

    Note: The batteries will be automatically disconnected when the AC adaptor is plugged into the DC Jack and the System will operate on AC power. Note: Unplug the AC adaptor and disconnect the DC Jack when the JiMS-182 is not in use for a long period of time.

  • Page 6: Tuner Operation

    Press the MEMO./SET button once. “12H” will appear and flash in the display. Press button once to select 24 Hour format (24 H) if desired. Press the MEMO./SET button again to save the hour format setting. The Hour digit will blink. While the Hour digit blinks, press to set the current hour.

  • Page 7: Aux Operation

    IN Jack to your external player’s LINE OUT jack or headphone jack. Plug one end of the connection cord (Not included) into the AUX IN jack on the back of JiMS-182. Plug the other end of the cord into your external audio player, such as an iPod shuffle, CD, MP3 Player etc.

  • Page 8: Docking Your Ipod

    30-pin connector in the iPod or the docking system. The iPod will start playing and charging automatically. Note: The iPod will only charge when the JiMS-182 is using the AC adaptor. Adjust the sound level by pressing the Note : The volume level cannot be adjusted using the volume control on your iPod after being docked.
  • Page 9 After the alarm is on, the LCD backlight will automatically be set to high. Light The light located on the top of the JiMS-182 works with all “Wake to” settings. The light will begin to light one minute before the alarm time is reached and will increase to full brightness by the time the alarm time is reached.

  • Page 10: Sleep Operation

    ALM.2/MEM+ Buttons, the Lamp will remain on. To turn the Lamp off press the LIGHT Button once. Your JiMS-182 can be programmed to turn off according to your preset sleep time. The sleep time can be set for 15, 30, 60, 90 or 120 minutes.

  • Page 11: Care And Maintenance

    Display. For example, if it is 10:00 PM and you set the sleep time for 30 minutes, the display will show: Preset Sleep Time The JiMS-182 will play and turn off automatically after the 30 minute Sleep time expires at 10:30 PM. If you want to cancel the sleep time before the time expires, press POWER/STANDBY Button once.

  • Page 12: Specifications

    Symptom Radio Noise or sound distorted on AM or FM broadcasting. AM or FM no sound iPod iPod will not play Alarm No Alarm Abnormal Operation Clock, iPod, Radio or AUX IN not functioning Abnormal or no display Internal micro controller needs GENERAL Power source --------------------------------- DC 6V 2000mA AC adapter (Included) Possible Cause...
  • Page 13 Dimension ------------------------- ------------ 6-7/8(W) x 7-1/2(D) x 1-7/8(H) Inch/ Weight ------------------------------------------- 1.32 lb/0.6kg TUNER SECTION Frequency range ----------------------------- FM: 87.5- 108MHz AUDIO SECTION Power Output --------------------------------- 2 x 1.5 W @10% THD per Channel Speaker impedance ------------------------- 4 ohms AUX input sensitivity ------------------------- 500 mV ACCESSORIES Instruction Manual --------------------------- 1 pc iPod dock adapter ---------------------------...
  • Page 14 This warranty is valid only in accordance with the conditions set forth below: 1. The warranty applies to the SPECTRA product only while: a. It remains in the possession of the original purchaser and proof of purchase is demonstrated b. It has not been subjected to accident, misuse, abuse, improper service, usage outside the descriptions and warnings covered within the owner’s manual or non-SPECTRA approved modifications c.
