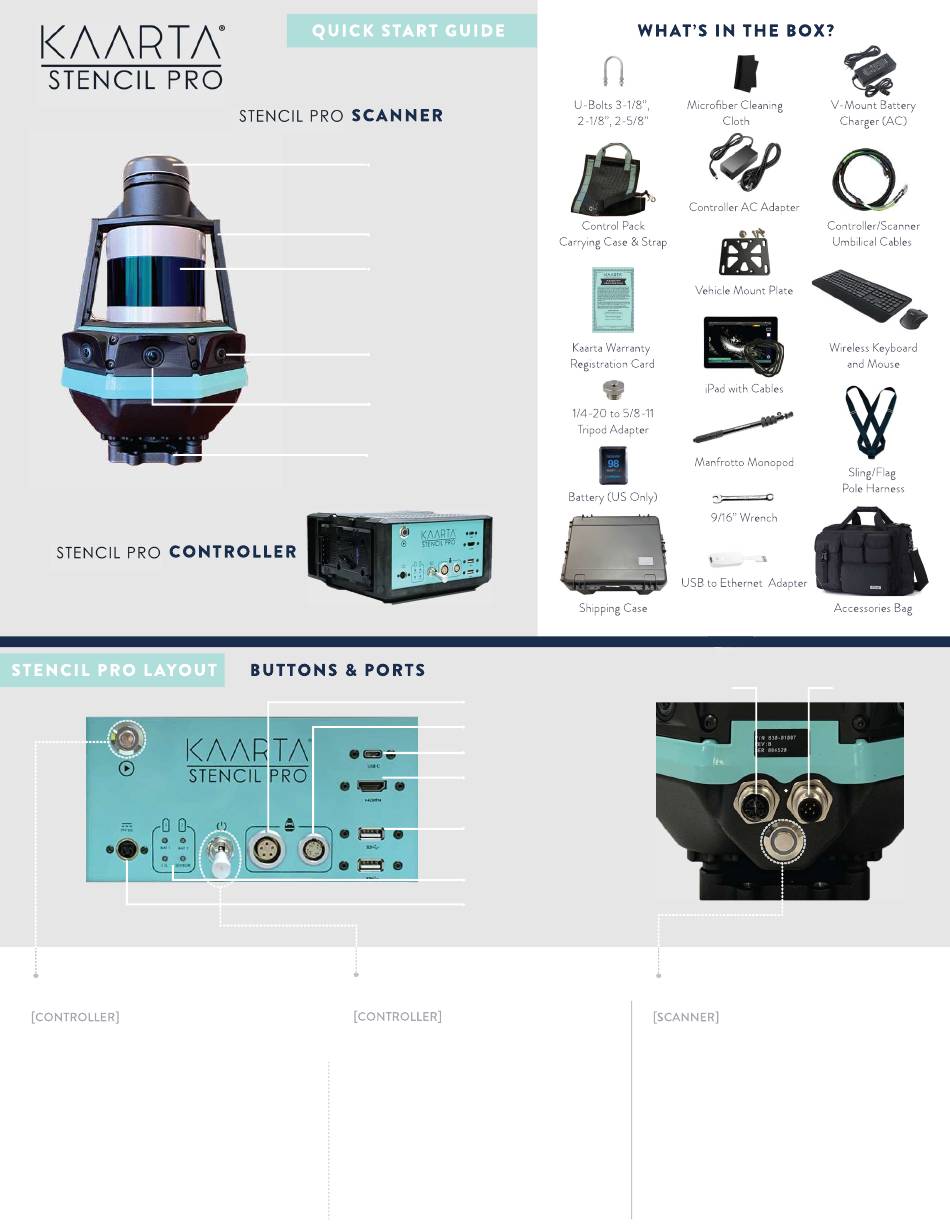

kaarta STENCIL PRO Quick Start Manual

Front of Controller
Scan Button
Starts Scanning
Push button to begin scanning. The LED ring around
the button turns from blue to green or teal (based on
satellite lock) when Stencil Pro scanning has started.
Initiation takes approximately 4-5 seconds.
Stops Scanning
Press button to stop scanning. The LED ring around
the button turns from green/teal to yellow when
saving, then returns to a blue ready state.
GNSS Antenna
Antenna Bracket

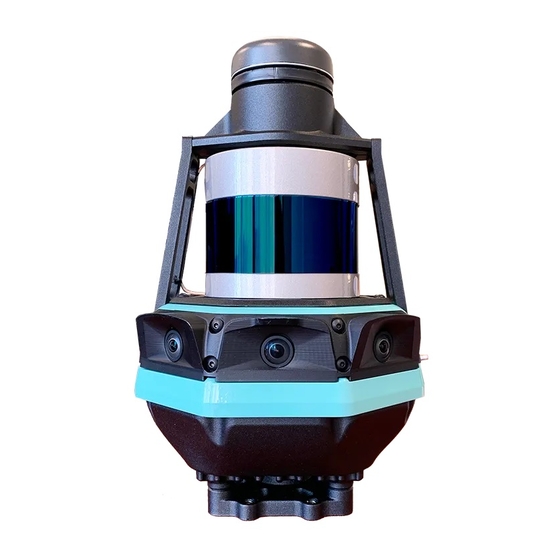

Velodyne 32-Line
Lidar Sensor
Pano/Color
Camera
Odometry
Camera
5/8-11 Threaded
Base
Scanner Data Connector
Scanner Power Connector
USB-C Port
HDMI Port
USB-A Ports
LED Status Lights
Shore Power Connector
Power Switch
Up/On
Turn the switch up to power on the controller. To
utilize shore power, connect the controller's AC
adapter.
Down/O
Turn the switch down to turn off the controller.
Data Connector
Back of Scanner
Scan Buttom
Starts Scanning
Push button to begin scanning. The LED ring around
the button turns from blue to green or teal (based
on satellite lock) when Stencil Pro scanning has
started. Initiation takes approximately 4-5 seconds.
Stops Scanning
Press button to stop scanning. The LED ring
around the button turns from green/teal to yellow
while saving, then returns to a blue ready state.
Power Connector
