iLive IAHB239 User Manual

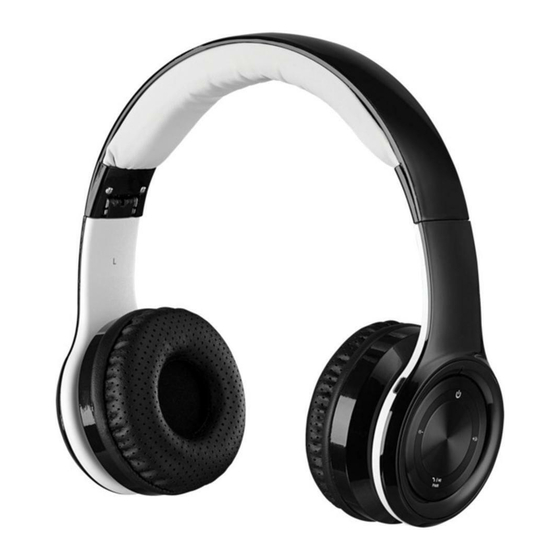

Wireless Headphones
User's Guide for Model IAHB239 v2296-01

Features

• Bluetooth Wireless:
range - 33 ft.
• Built-in microphone
• Aux in (3.5mm audio
input)
• Folding adjustable
headband
• On-ear controls
• Voice prompts
announce headphone
operations
• Built-in rechargeable
lithium ion battery
• Battery life - approx. 5
hrs at 100% volume
• Micro-USB port for
battery recharge

Volume/Skip

Press to adjust volume.
Press and hold to skip tracks.

Pair / Play / Pause / Speakerphone

Press to play or pause audio.
Press to answer incoming phone call.
To manually pair Bluetooth, press and hold until the
indicator light begins rapidly flashing red and blue.

Battery Charging

Initial charge time is approximately 2 hours. Charge
fully before use. The low battery indicator will flash for
1 minute, then the unit will automatically power OFF.
Using a Micro-USB to USB cable (included), connect to
the USB port of a powered on computer or USB power
adaptor (not included) to charge the unit.

Includes

• 3.5mm audio cable
• Micro-USB to USB
charging cable

Power

Press and hold to
power ON or OFF
DC Power Input
Aux In
(3.5mm audio input)
STATUS
Power On
Charging
Charging Complete
Pairing
Pairing Complete
Indicator LED
Microphone
INDICATOR
Flashing blue light
Solid red light
Light OFF
Flashing red / blue light
Flashing blue light
