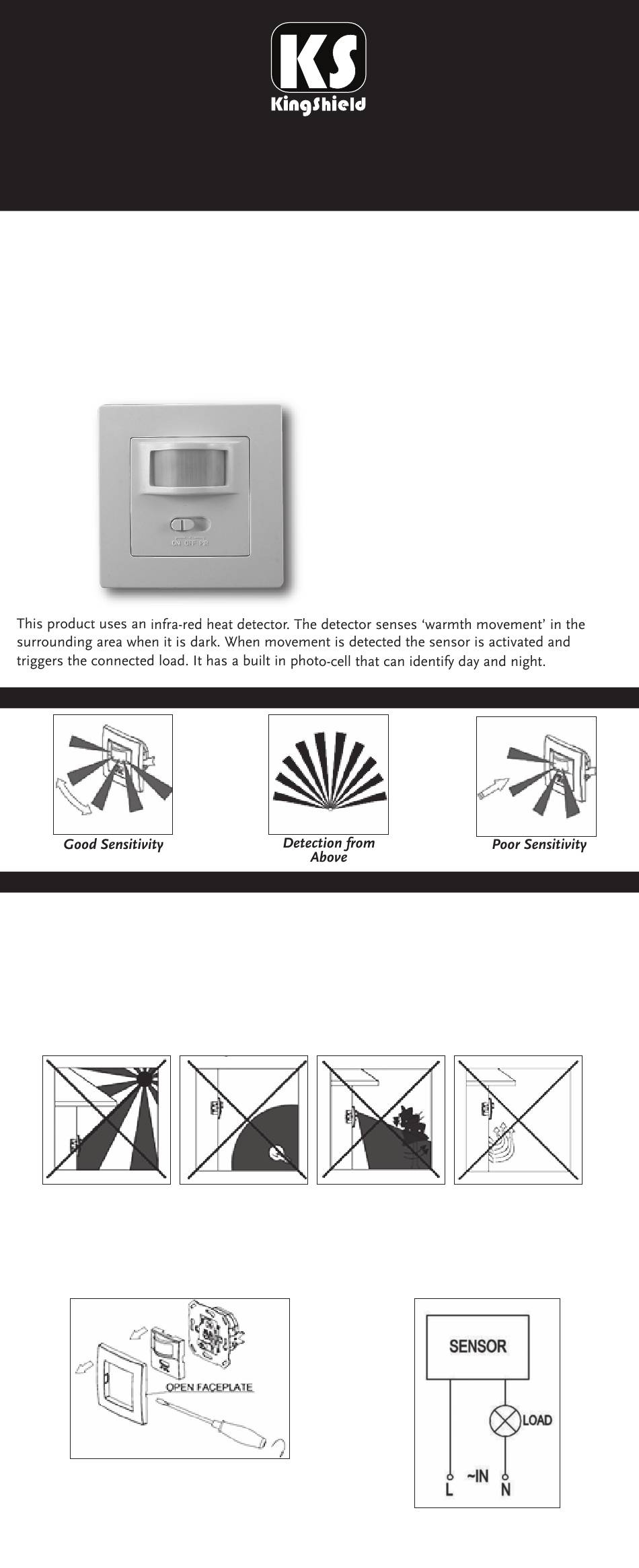

Green Brook KingShield Orion Range Quick Start Manual

Infra-red motion sensor - wall switch
Hide thumbs
1
2

Advertisement

Table of Contents

•
Please read these instructions carefully before installation and keep safe for future reference.
IMPORTANT
This product should be installed by a competent person and in accordance with the current
IET Wiring Regulations and Building Regulations.
If in doubt,consult a qualified electrician.
•
Always turn off the mains supply before commencing work.
As the detector responds to changes in temperature, avoid the following situations:-
•
Avoid pointing the detector towards objects with highly reflective surfaces, such as mirrors
etc.
•
Avoid mounting the detector near heat sources, such as heating vents, air conditioning
units, lights etc.
•
Avoid pointing the detector towards objects that may move in the wind, such as curtains,
tall plants etc.
Switch the mains supply OFF first to prevent electric shock.
1. Unclip both face plates using a small
flat-blade screwdriver, refer to Dia:1.
Dia:1
'Orion Range'
Infra-red Motion Sensor - Wall Switch
Model: OD100

Important Safety Instructions

FIELD OF DETECTION

INSTALLATION

Model: OD100 -
'ON'
= Permanently ON
'OFF'
= Permanently OFF
'PIR"
= PIR Control
2. Connect the Live in wire to the 'L'
terminal and Load out wire to the 'A'
terminal, refer to Dia:2.
Dia:2
L
A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KingShield Orion Range and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Green Brook KingShield Orion Range

Summary of Contents for Green Brook KingShield Orion Range

  • Page 1 ‘Orion Range’ Infra-red Motion Sensor - Wall Switch Model: OD100 Important Safety Instructions • Please read these instructions carefully before installation and keep safe for future reference. IMPORTANT This product should be installed by a competent person and in accordance with the current IET Wiring Regulations and Building Regulations.
  • Page 2 3. To install in a circular back box, push 4. To install in a square back box, push sensor sensor in to box and tighten the two into back box and using two 3.5mm screws splay screws, refer to Dia:3. secure to back box through the appropriate mounting holes, refer to Dia:4.
