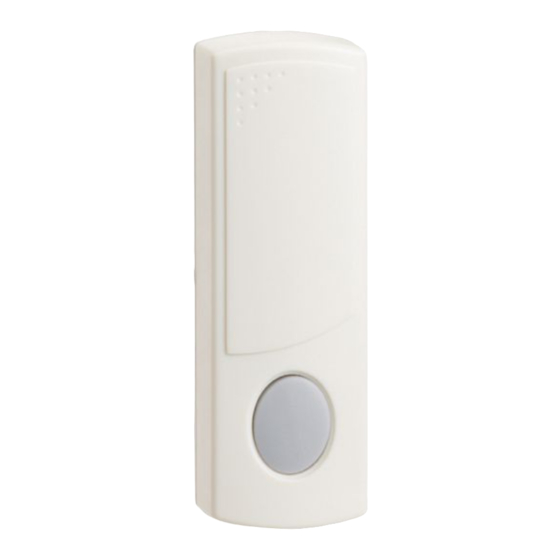

Green Brook DW060AN-C Quick Start Manual

Instruction for Remote Wirefree Bell Push
• No more wires
• Battery included for Transmitter (3V Lithium battery CR2032)
• Transmitter fixing screws included
Please read the instructions fully before attempting installation.
Dia.1
1. The battery compartment slot is located on the bottom of the unit.
2. Using a flat screwdriver insert into slot and gently push, The base will
pop open.
3. Insert the 3V Lithium batery (CR2032), Dia.3 and refit the base cover.
Before drilling any holes position position the transmitter on the door or
door frame outside (ideally a flat wooden area) and press the button to
ensure the signals are getting through to the receiver. Please test with
the door closed to simulate actual working conditions.
You should also look to position the transmitter in an unexposed place to
protect from rain.
The range of the unit is up to 150 metres (100M on model DW010AN-C)
but mounting the transmitter on metal or UPVC doorframes may make
the unit inoperative or seriously reduce the operating range.
As with all low powered transmitters the number of wall and ceilings the
signal has to travel though between the transmitter and receiver also
affects the range.
Once a suitable surface is found remove the transmitter base following
(1).
Use these as templates to fix the base on to a doorframe. Ensure the
transmitter is the right way up so that the slot is at the bottom.
If mounting on to masonry, wall fixings will be required. Refit unit to base.
IMPORTANT: The screws must be fixed flush or the battery will not
maintain contact with the terminals and the unit will not operate.
Please refer to your main doorchime instruction leaflet.
Models: DW010AN-C, DW040AN-C, , DW030AN-C and DW050AHN-C.
Test your doorchime by moving the receiver in different rooms at
varying distances from the transmitter to ascertain the coverage
available in your home this way you are unlikely to miss any
visitors.
Intallation /Operating
DW060AN-C

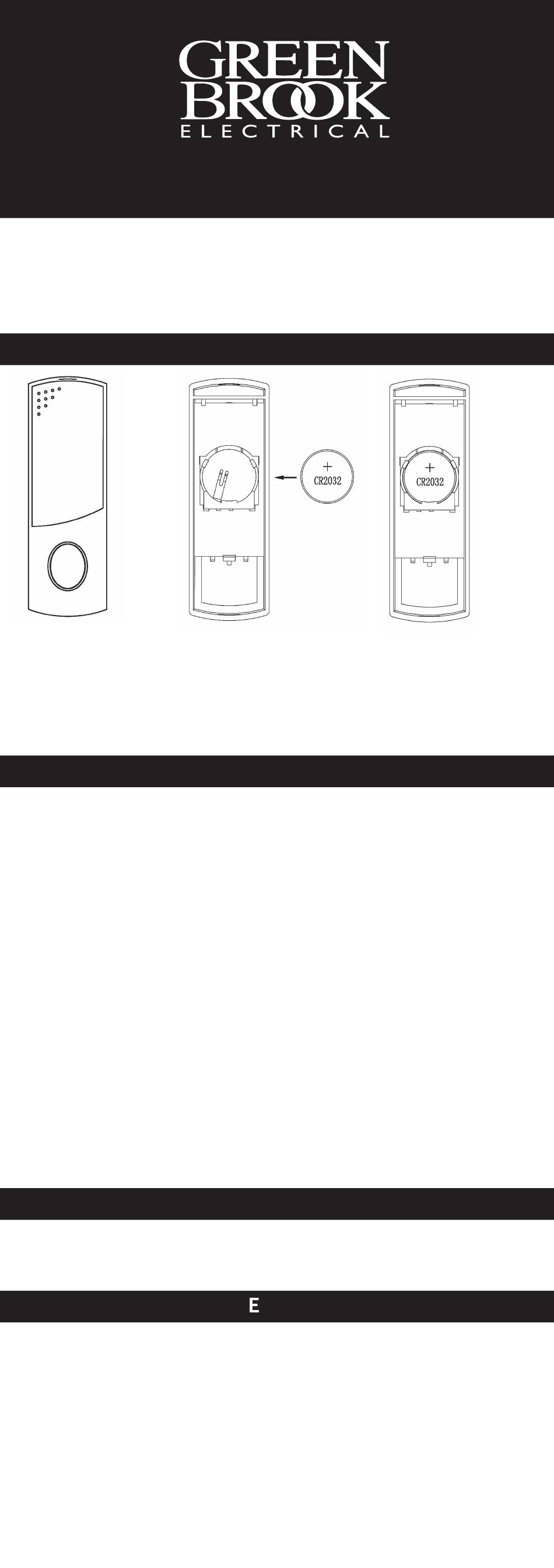

FITTING THE BATTERY

INSTALLING TO THE DOOR

TUNE SELECTION/LEARN CODE

Dia.2
T STING
Dia.3
