- Page 1 K E N E V O S L S P E C I A L I Z E D FEATURES, BENEFITS U N I V E R S I T Y & GUIDELINES WORKBOOK...

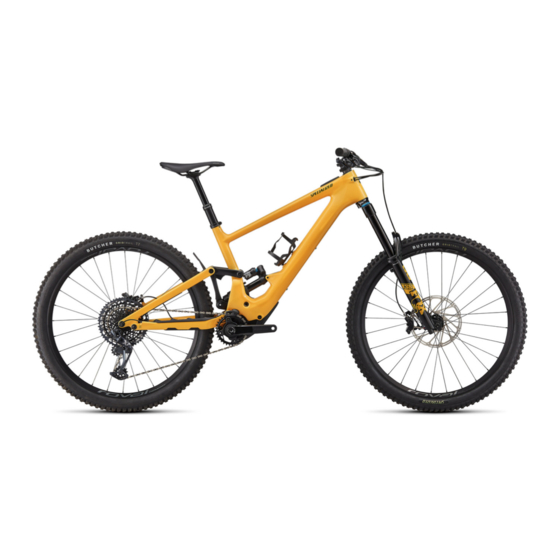

- Page 2 Weigh Less. Way More - Power up to trail riding’s next level with the Kenevo Super Light and rip the biggest trails like never before. Created by trail riders for trail riders, Kenevo SL is an e-MTB in a class by itself—a previously unattainable combination of light weight, responsiveness, and capability.
-
Page 3: Table Of Contents
EXPERIENCE WHICH TURBO MOUNTAIN RIDER ARE YOU? RIDER BENEFITS KENEVO SL QUICK PROFILE MODEL OVERVIEW (MY 2022) GENERAL KEY SPECIFICATIONS BIKE WEIGHTS BIKE SIZING MINIMUM AND MAXIMUM SADDLE HEIGHTS BIKE GEOMETRY CHASSIS & COMPONENTS HEAD ANGLE & BOTTOM BRACKET MATRIX KEY FORK DATA &... -
Page 4: Experience
EXPERIENCE WHICH TURBO MOUNTAIN RIDER ARE YOU? Weighing in at just four kilos more than the Enduro and around five and a half kilos less than the full power Kenevo, the Kenevo Super Light is a featherweight e-MTB that redefines big mountain performance. -
Page 5: Rider Benefits
EXPERIENCE RIDER BENEFITS Knowing the key Rider benefits helps sales staff to lead targeted customer conversations with potential Kenevo SL riders. It enables everyone to: • Tell a compelling product story in a short amount of time • Quickly summarize the unique sales propositions (USPs) •... -
Page 6: Kenevo Sl Quick Profile
• 29” Roval wheels with alloy or carbon rims • 2 color-ways per model (market-specific) (30 mm inner width) • S-Works frameset with SL Turbo Technology and • Butcher GRID Trail 29x2.3 tires needed chassis parts (T9 compound front, T7 compound rear) •... -
Page 7: General
• See model year updates for key changes • S-Works frameset • S-Sizing (S2-S5) • All Kenevo SL bikes feature the identical Turbo SL Technology system • A Range Extender Battery comes with S-Works and S-Works frameset, for all other models it is an... -
Page 8: Key Specifications
34.9 mm, 0 mm offset * The S-Works frameset ships with the usual frame hardware and all specific Turbo components to build the bike: motor, internal + RE battery, harness, display, remote, speed sensor system, charger, cabling, hardware, Praxis carbon cranks w/ spider and 32t SRAM Eagle chainring, seat collar, head set and spacers, frame protectors, etc. -
Page 9: Bike Weights
COMP CARBON MODEL OVERVIEW (MY 2022) BIKE SIZING Kenevo SL models are available in frame sizes S2-S5. S-Sizing is based on what matters: rider size and style, not inseam. Four sizes, all with similar headtube lengths and standover, allow you to choose the size that best suits your individual style. -
Page 10: Minimum And Maximum Saddle Heights
• Bike can be set up to be short/playful, or long/slack for stability, depending on terrain or rider preference • Just like the race-driven Enduro, the Kenevo SL is a 29er only to carry momentum over obstacles for maximum speed... - Page 11 - 2 mm - 1 ° HEADSET ADJUSTABLE COLLAR (STEEP) + 0 mm + 2 mm + 1 ° BIKE GEOMETRY KENEVO SL (STANDARD SETUP) FRAME SIZE PARAMETER Stack (mm) Reach (mm) Head Tube Length (mm) Head Tube Angle (°) 63.5...
-
Page 12: Head Angle & Bottom Bracket Matrix
CHASSIS & COMPONENTS HEAD ANGLE & BOTTOM BRACKET MATRIX This table reflects head angle values and bottom bracket heights, as a result of different Flip Chip/head set cup(s) configurations. Note that these are rounded values which vary slightly with frame size. HS CUP FLIP CHIP @ HORST LINK / DROPOUT NEUTRAL... -
Page 13: Frame Construction & Measurements
CHASSIS & COMPONENTS FRAME CONSTRUCTION & MEASUREMENTS This table reflects head angle values and bottom bracket heights, as a result of different Flip Chip/head set cup(s) configurations. Note that these are rounded values which vary slightly with frame size. FRAME MATERIALS FRAME CABLE ROUTING WHEEL SPACING •... -
Page 14: Frame Hardware
• LOWER 1.5” CAMPY 45° CARTRIDGE BEARING HEADSET CUPS (S212500014) There are multiple frame protectors to HDS MY22 KENEVO SL UPPER & prevent cosmetic damage and dirt LOWER HEADSET CUPS 0 & 1 DEGREE accumulation. 3 examples, besides standard protection such as chainstay... -
Page 15: Key Component Data & Compatibility
WHEEL/TIRE COMPATIBILITY consistent motor support to tackle • 30t and 32t works with chain guide technically challenging segments. • Turbo Kenevo SL come stock with 29” wheels and 2.3” tires, front and rear DROPPER POST TRAVEL MIN/MAX. ROTOR SIZE • For best tire and mud shedding clear... -
Page 16: Suspension & Kinematics
RECOMMENDED SAG BASELINE SETTINGS • Rx tunes for MY22 Kenevo SL shocks are very similar to the tunes used in Enduro bikes • SHOCK: • The only difference is rebound. Kenevo SL features more... - Page 17 Kenevo SL • We use 4-bar and flex pivot systems on bikes where weight and/or playful handling are major considerations Graph showing the slightly more rearward axle path for Kenevo SL vs. Enduro...
- Page 18 CHASSIS & COMPONENTS FRAME WIRING & ROUTING Please refer to the schematics on the Service Website for wiring and routing (not available yet at point of bike launch). GENERAL ROUTING • Easy routing: channels for shift housing and brake hose are installed in the chainstays, so that housing/hose can be easily inserted at the rear triangle •...
-
Page 19: Turbo Sl Technology
‘Turbo SL Technology System: Features & Benefits’ to learn all about it (motor, batteries, harness, charger, system behaviour, Mission Control App, etc.). All MY22 Kenevo SL models use the known Turbo SL Technology, with two key differences: • MasterMind TCU on all models •... -
Page 20: Basic Theory Of Operation
TURBO SL TECHNOLOGY BASIC THEORY OF OPERATION THREE COMPONENTS ARE PART OF THE CAN BIKE SYSTEM COMMUNICATION (COMPONENTS ‘TALK’ TO EACH OTHER): 1. MasterMind TCU (can be seen as the master of the bike, also allowing external communication through Bluetooth, ANT+ and USB-C 2. -
Page 21: Key Features & Benefits
(RE battery only) • Can be charged alone or in parallel PART 2: 98921-5660 with internal battery, using the Y-splitter (285 mm cable for Kenevo SL) cable (fastest charging) • Standard charge time: 3h 25 min DESIGN CAPACITY: (Charges with 1.0 A +/- 0.2A) 160 Wh (3.35 Ah x 46.8 V) - Page 22 • S196800019 (cable only required for Kenevo SL) - ELE MY20 MTB SL SYSTEM, SPEEDSENSOR KIT • S216800021 (rubber grommet and screw) - ELE TURBO MTB SPEED SENSOR GROMMET Kenevo SL uses the known SL speed sensor cable and the same direct speed sensor integration as MY22/Gen3 Levo...
- Page 23 TURBO SL TECHNOLOGY KEY FEATURES & BENEFITS MAIN HARNESS MODEL: ELE WIRING, SL SYSTEM. MAIN HARNESS MOTOR-BATTERY-TCU SERVICE PART: S196800021 KEY FEATURES: • Robust and reliable design • Has connector for internal battery • Delivers power from battery/batteries to motor •...
-
Page 24: Range Extender Battery (Re)
TURBO SL TECHNOLOGY RANGE EXTENDER BATTERY (RE) There are two important notes on using a Range Extender Battery with a Kenevo SL, besides what applies for the SL system in general. 1. To connect, the dedicated 285 mm cable is required (98921-5660) 2. -
Page 25: Mastermind Tcu (Turbo Connect Unit)
• Battery replacement does not require a Component Change, but updating the battery firmware is needed Kenevo SL bikes with a MasterMind TCU ship with a motor speed assist restricted to 15 kph. • Update notification on MasterMind TCU screen (turtle symbol + text) •... -
Page 26: Range & Ride Time
• Suggest tuning the default assist values for more range (lower Support/Peak Power increases range) • Suggest using Turbo mode only when needed (shorter rides, steep climbs, etc.) - like full throttle in any machine, Turbo mode is very energy-consuming The range orientation in this table is based on documented rides –... -
Page 27: Tips For Optimizing Range
Please makes sure to create your own range examples in the area where most of your customers ride. This is enables you to be locally authentic and meaningful for the rider. RANGE EXAMPLE: TURBO KENEVO SL – INTERNAL BATTERY, DEFAULT TRAIL MODE... -
Page 28: Resource Overview
SERVICE & REPAIR (RETAILER) BOLT TORQUES Please refer to the Kenevo SL manual and/or the schematics for bolt torques. Find additional information there and/or on the Service Website. SOMETIMES IT‘S US, ONLY FASTER... -
Page 29: Diagnostics & Troubleshooting Basics
‘Digital Diagnostics’ refers to the use of digital tools to identify an functional issues with Turbo bikes, that is, issues that are related issue and find a solution. Turbo bikes with a TCD-w or TCU have the to the electronic components. -
Page 30: Service Parts
• Kenevo SL Service Parts are available at point of market introduction • Please refer to the specific Kenevo SL model on the Service Website to identify the needed Service Part • Find a quick overview of the most relevant Kenevo SL Service Parts in The Workbook ‘Turbo SL Technology System: Features &... - Page 31 HDS HEADSET CAP TH H2487A 20MM S212500013 HEADSET CAP,TH H2487B,NYLON WITH 30%GF,20MM HDS MY22 KENEVO SL UPPER & LOWER HEADSET CUPS, 0 & 1 DEGREE S212500014 BRG,HEADSET,SPHERICAL ADAPTER,1.5,45DEG,54MM OD X 52MM ID BRG ASSY,CUP,HA ADJUST 0°,UPPER,CAMPY 1-1/8”,41.8MM ID,46 X 52.5 BRG ASSY,CUP,HA ADJUST 1°,UPPER,CAMPY 1-1/8”,41.8MM ID,46 X 52...
- Page 32 SERVICE & REPAIR (RETAILER) SERVICE PARTS BLT MY22 KENEVO SL MOTOR MOUNTING BOLT KIT S210500008 SCR,TX FLT HD,M6X1.0 X 20,STL,BLK WSHR,CUST,6.4 IDX16 ODX4 THK,AL 7075,BLK SCR,CUST,M10X1 X 14,PLW,CG,AL 7075,BLK WSHR,FLAT,M10,11 IDX16 ODX0.5 THK,304 SST BLT MY22 HORST PIVOT GEO ADJUST KIT S210500006 SCR,CUST,M6X1.0 X 32.5,STL,BLK...
- Page 33 MSC MY22 KENEVO SL DOWNTUBE AND SEATTUBE MYLAR PROTECTORS S2, GLOSS S219900026 PROTECTOR,3M MY22 KENEVO SL S2 DOWNTUBE 0.36MM MYLAR GLOSS PROTECTOR, 3M MY22 CARBON KENEVO SL S2 SEATTUBE 0.36 MM MYLAR GLOSS MSC MY22 KENEVO SL DOWNTUBE AND SEATTUBE MYLAR PROTECTORS S3, GLOSS S219900027 PROTECTOR,3M MY22 KENEVO SL S3 DOWNTUBE 0.36MM MYLAR GLOSS...
-
Page 34: Spoke Lengths
FND MY22 KENEVO SL REAR FENDER KIT S212200004 FENDER,PA TRAIL FSR E1.1,29,CRBN,LT SCR,CUST,T25,M4X0.7X8,2024,BLK ELE TRAIL REMOTE 2 S216800019 REMOTE,PA,F1. Turbo Levo remote wired to Top Tube display ELE TURBO CONNECT UNIT 2 S216800020 DISPLAY,TCU2,PA SCR,TX HD,LP,M4X0.7 X 10,AL 7075 T73,BLK ELE TURBO MTB SPEED SENSOR GROMMET S216800021 SCR,SKT FLT HD,M4X0.7 X 14,7075-T73,BLK... -
Page 35: Bike Manual
MAINTENANCE & HANDLING TIPS (RIDER) BIKE MANUAL PLEASE READ, USE AND FOLLOW THE LEVO USER MANUAL. The Kenevo SL manual is very informative and well-illustrated. It addresses these topics and more: • Component overview • Intended usage • Assembly and setup notes, also suspension and geo adjustments •... -
Page 36: Structural Weight Limits
MAINTENANCE & HANDLING TIPS (RIDER) STRUCTURAL WEIGHT LIMITS KEY FACTS The structural weight weight limit for Kenevo SL bikes is stated on the sticker on the underside of the downtube (see images). • 109 kg is the structural weight limit for Kenevo SL...
