Hunter ASHBURY 81003 Owner's Manual

Bath ventilator with light
Hide thumbs Also See for ASHBURY 81003:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation Manual

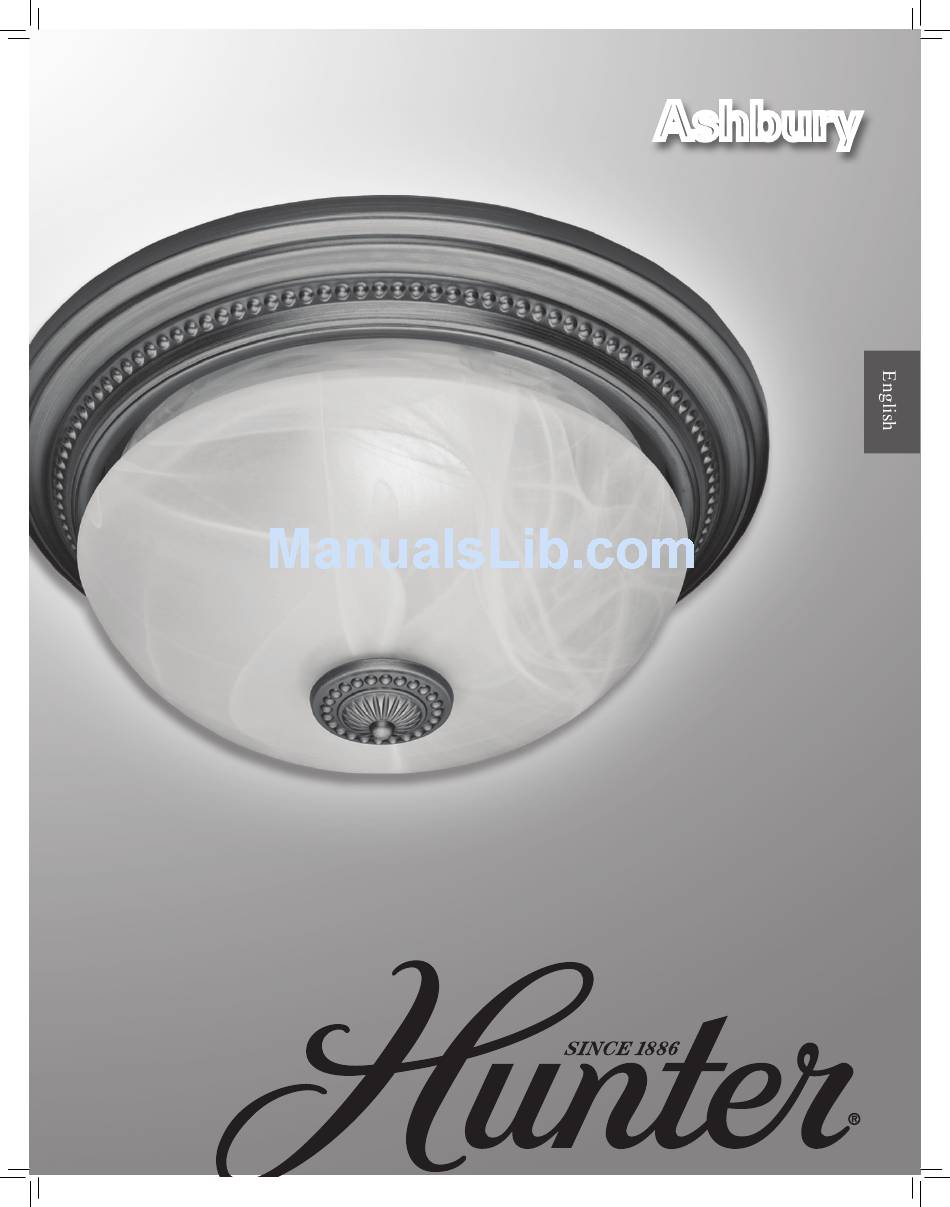

Ashbury
Bath Ventilator with Light
Owner's Manual
Model
81003
1
41937-01
20101026
41937-01 10/26/2010
©2010 Hunter Fan Co.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ASHBURY 81003 and is the answer not in the manual?

Questions and answers

Related Manuals for Hunter ASHBURY 81003

Summary of Contents for Hunter ASHBURY 81003

  • Page 1 Ashbury Bath Ventilator with Light Owner’s Manual Model 81003 41937-01 20101026 41937-01 10/26/2010 ©2010 Hunter Fan Co.

  • Page 2: Cooking Area

    TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: 1. Use this unit only in a manner intended by the manufacturer. If you have questions, contact the manufacturer. 2. Before servicing or cleaning the unit, switch power off at ser- vice panel and lock the service disconnecting means to prevent power from being switched on accidentally.

  • Page 3: Before Installation

    Check all the parts. If damaged, call 1-888-830-1326 for replacements. 3/8” Cable Connector Extra Screws NOTE: Strain relief cable connector must be installed. Not Included. Estimated assembly time: 30 to 60 minutes Before Installation NOTE: Remove all packing materials before installation. Turn off the power source.
  • Page 4 Remove the motor/blower from the housing. Remove packing material. Remove the pre-loaded screw tip covers. Back out the pre-loaded screw tips until flush with the side of the housing. Remove the wiring cover screw. Remove the wiring cover. 41937-01 10/26/2010...

  • Page 5: New Construction

    Pop out the first wiring access slug. Use second if needed. Choose Installation Option For New Construction - go to step A11, page 5 For Existing Construction - go to step B11, page 8 New Construction Position the correct depth mark at the bottom edge of the joist based on the thickness of your sheetrock.
  • Page 6 Route wires through the strain relief. For supply connection, use wires suitable for at least 90º C (194º F). Black 2 Pin White Fan Motor White 3 Pin Black Light Light *Option *Option Fan & Main Light Together Install the wiring cover plate. Make sure all wiring connections are inside the box or under the wiring cover plate.
  • Page 7 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 Connect wiring harness. DO NOT ALLOW THE MOTOR TO Reinstall the motor by inserting the tabs and pushing up HANG FROM THE WIRING HARNESS. into position.

  • Page 8: Existing Construction

    Existing Construction EXISTING FAN Remove an existing fan and check to make sure the Move the housing into position above the ceiling. opening is large enough to accommodate the new motor housing (7 1/4”x 7 3/4”). Route wires through the strain relief. For supply connec- Attach existing ducting to duct connector.
  • Page 9 Black 2 Pin White Fan Motor White 3 Pin Black Light Light *Option *Option Fan & Main Light Together Install the wiring cover plate. Reinstall the motor by inserting the tabs and pushing up into position. Make sure the wires are not pinched between the motor and the housing.
  • Page 10 Turn on the power source. Go to step on page 10 to attach grille. Attaching the Grille Remove the thumbscrews. Test the motor. If the motor does not run, check the plug connection. Remove glass dome. 41937-01 10/26/2010 O F F...
  • Page 11 Connect wiring harness. DO NOT ALLOW THE FIXTURE TO HANG FROM THE WIRING HARNESS. Position the strain relief bracket under the motor as shown. Align posts 1, 2, and 3 (stamped into motor housing) with posts 1, 2, and 3 (stamped into light fixture). Slide light fixture over posts.
  • Page 12 Align glass dome and push up. Install 2 Max 60 Watt A15 bulbs (Not Included). Screw glass dome into position. 41937-01 10/26/2010...

  • Page 13: Troubleshooting

    Problem: Fan does not come on. Solution: • Hunter Fan Bath Ventilators are extremely quiet. To confirm that the fan is running, place your hand near the vents to feel the air movement. • Turn power on, replace fuse, or reset breaker.

  • Page 14: Warranty

    LIMITED WARRANTY Hunter Fan Company makes the following limited warranty to the original user or consumer purchaser of this Hunter bath exhaust fan: If any part of your Hunter bath exhaust fan (except for glass fixtures and light bulbs) fails at any time within one year after the date of sale to you due to a defect in material or workmanship, we will repair or, at our option, replace the defective part free of charge for parts and labor performed at our nearest service center or at our Service Department in Memphis, Tennessee.
