2E. 4-20mA On/Off Power Remote Control
Description and Schematic of remote control features:
Remote control of ozone production level by 4-20mA at 10 V signal, no special switching for
•
both of these signals required
• Remote On/Off. Remote Switch must be normally open for the generator to be "On" and
closed to stop the Ozone production.
• That switch has to be connected to dry contacts only (not connected to the ground on any
kind or to any voltage source AC or DC)
• Remote Ozone Generator status indicator.
a. During Normal Ozone generator operation pin 5 –normally open, pin 6– common, pin 7
–normally closed.
b. If Remote Control Switch is off or safety shutoff is activated the circuit will be closed
between pins 5 & 6.
1 1
2 2
3 3
4 4
5 5
6 6
7 7
Remote Control Cables of
required length are available as
a special order option

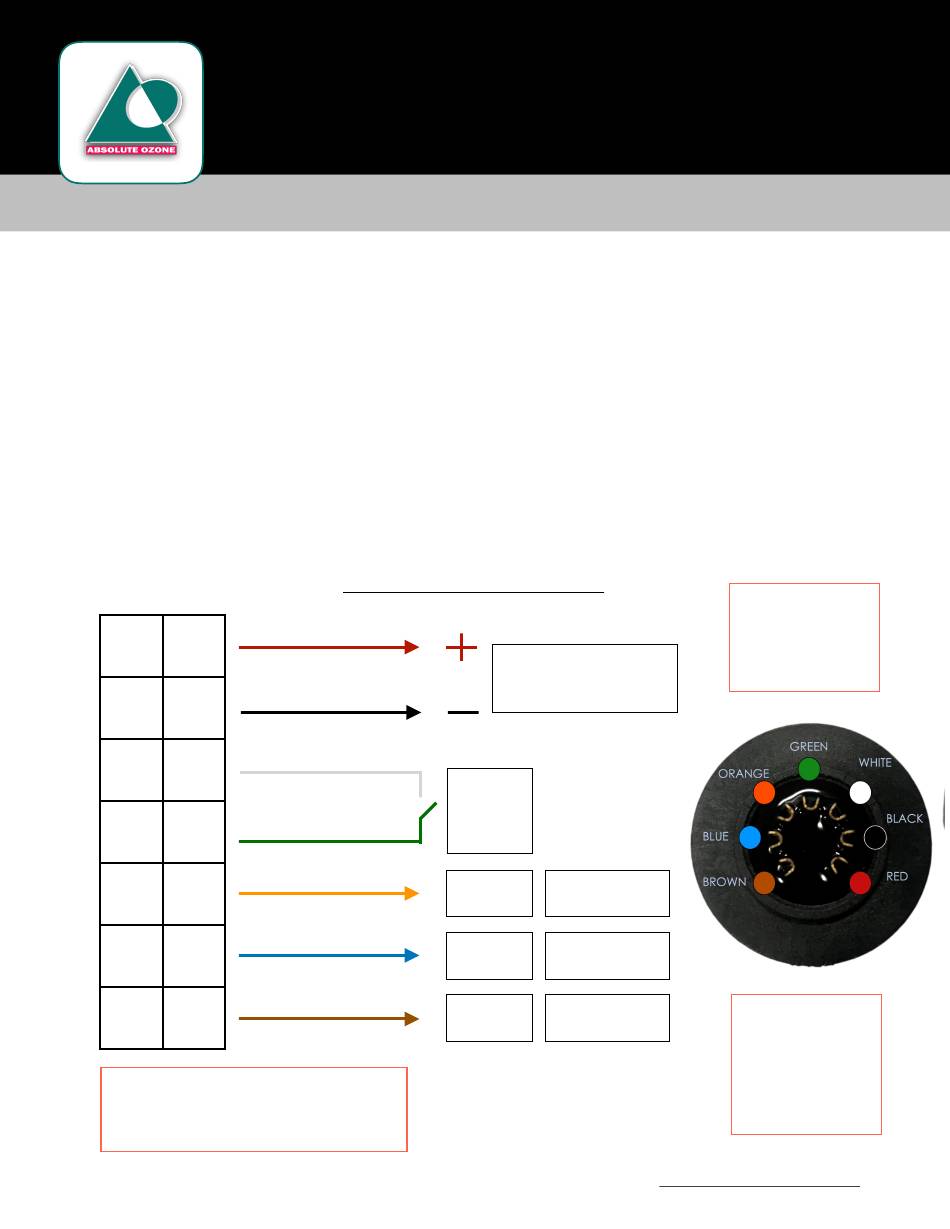

Standard Remote Control Schematic
RED
BLACK
WHITE
Remote
On/Off
GREEN
Switch
ORANGE
BLUE
COM
BROWN
-9-
4-20mA at10V
Input Connection
NO Remote Status
Indicator Dry
NC Relay Contact
For more information about this product visit our
website at, http://www.absoluteozone.com
Section 2
Use Shielded
Cable Only!
Ground Shield
Only on One Side!
Status
Indicator Relay
1A,
120-240VAC/
24VDC
