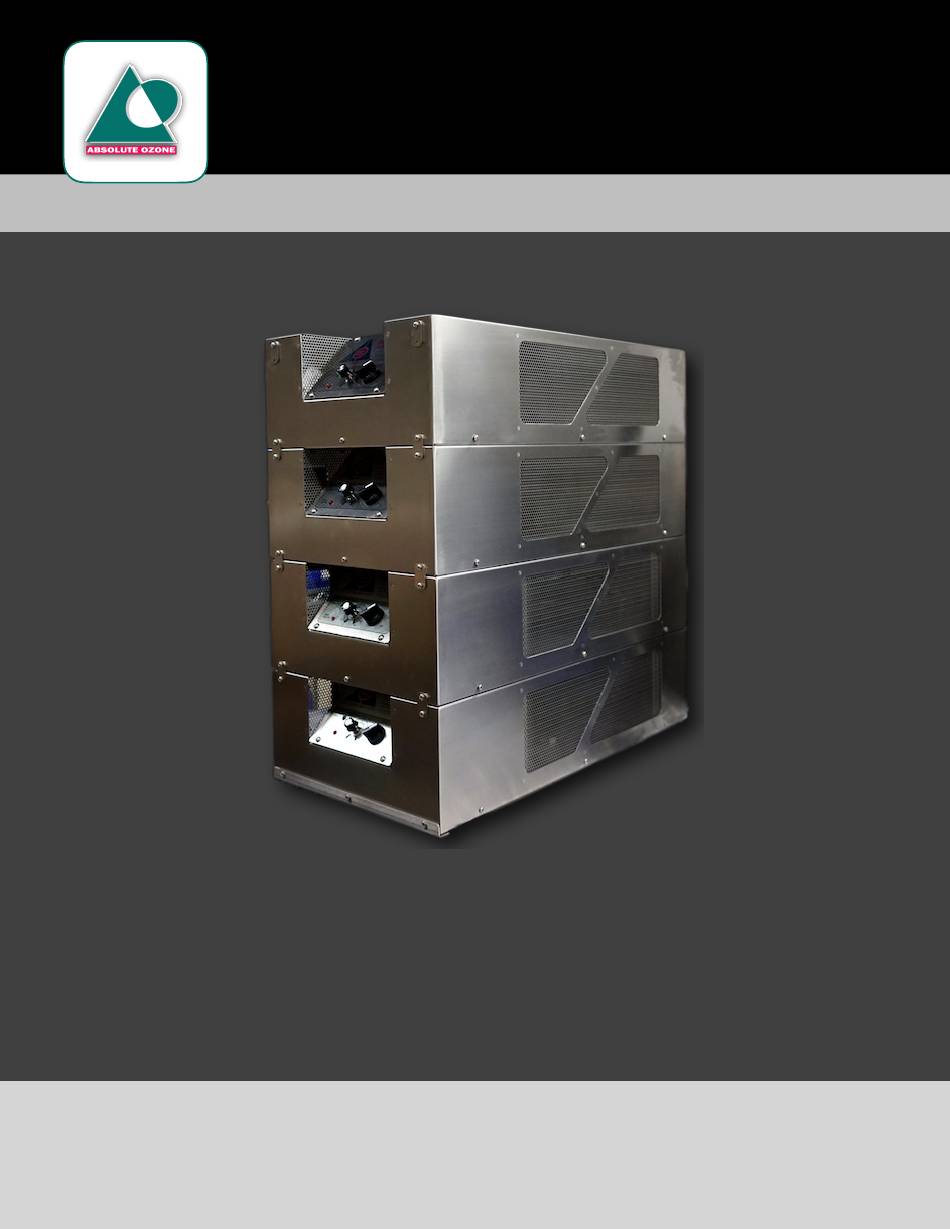

- Page 1 ABSOLUTE OZONE® ATLAS ® /TITAN ® /MAGNUM ® OPERATOR’S MANUAL...
-
Page 2: Table Of Contents
ABSOLUTE OZONE® OPERATOR’S MANUAL Table of Contents Section 1 - General Information 1A. Description 1B. Specifications 1C. Accessories 1C.i Ozone Generation 1C.ii Required Accessories Section 2 - Installation 2A. Location 2B. Electrical 2C. Plumbing 2D. Gas Connections 2E. Remote Control Section 3 - Operation 3A. - Page 3 5F. i Location of Monitors 5F. ii Monitoring Equipment 5G. First Aid Procedures 5G. i General Information 5G. ii Inhalation 5G. iii Eye Contact 5G. iv Precautions 5G. v Emergency Information Form Absolute Ozone Limited Warranty Ozone Generator Dimensions Conceptual Ozone Injection Diagram...
-
Page 4: Section 1 - General Information
ATLAS/TITAN MAGNUM Ozone Generator Equipment. Warning - High Voltage is present inside the enclosure USE EXTREME CAUTION • Operate the ATLAS/TITAN/MAGNUM 30-200 with safe access to electrical power. • Connect to a GFCI type receptacle. • Follow all applicable electrical codes. -
Page 5: Description
OPERATOR’S MANUAL Section 1 1A. Description The ATLAS/TITAN/MAGNUM 30-200 are Ozone Generators that produce from 1 to 200 grams of ozone per hour respectively, with ozone concentration up to 22% by weight or as specified in attached test report. The ATLAS/TITAN/MAGNUM 30-200 are designed to produce ozone for variety of applications. -
Page 6: Accessories
Concentrated oxygen feed-gas enables ozone concentration up to 14% by weight. In our experience, Oxygen Concentrators made by AirSep work well with all Absolute Ozone generators. To protect Absolute Ozone Generator from sieve particles in case of oxygen • concentrator failure we recommend installing Oxygen Filter Upstream from the generator. - Page 7 ABSOLUTE OZONE® OPERATOR’S MANUAL Section 1 • Ozone Resistant Flow Meter 1/4” Teflon Tubing Ozone Generator Anti-Flood Device With Check Valve Filter Application To Drain Oxygen Concentrator/ Other Oxygen Source Ozone Injector for Water Treatment Applications: Inlet water flows through the pump •...
-
Page 8: Section 2 - Installation
Stackable Without a Rack Every Absolute Ozone® ozone generator comes equipped with attachment tabs that can be reversed to provide you with the liberty to install the ATLAS one on top of another in a rack mount formation but without requiring a rack. -
Page 9: Electrical
Section 2 2B. Electrical Main Power Supply Circuit: The ATLAS/TITAN/MAGNUM 30-200 are supplied with 3-5 feet power cord. Connect the power cord to a standard grounded 15 Amp (10 Amp International) power source, according to a local electrical code only. - Page 10 ABSOLUTE OZONE® OPERATOR’S MANUAL Section 2 2E. 4-20mA On/Off Power Remote Control Description and Schematic of remote control features: Remote control of ozone production level by 4-20mA at 10 V signal, no special switching for • both of these signals required •...
-
Page 11: Section 3 - Operation

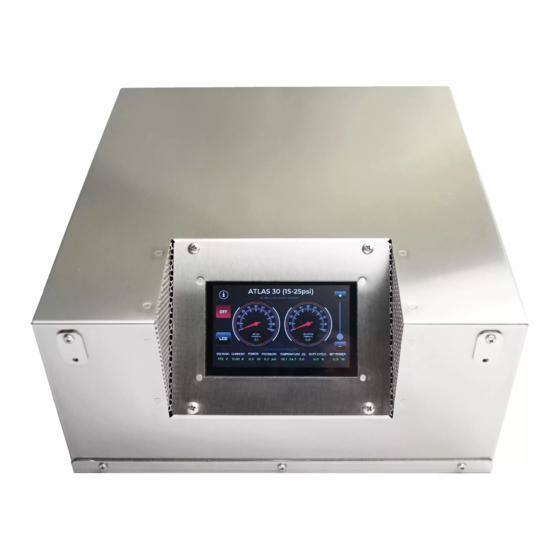

Here is a general description of the controller and features it offers: All Atlas Absolute Ozone® come with 4-20mA remote power control as a standard feature that allows to select power going to the ozone cell that is later automatically monitored and maintained by a control system, regardless of minor voltage or pressure deviations. -
Page 12: System Startup
In a case when incorrect operating parameters are applied to an ozone generator the unit is switched off • by the control system and LCD screen will indicate which of parameters caused the generator shutdown. In a safety shutdown mode the generator will be constantly monitoring operating parameters and the •... -
Page 13: Standard Operation Procedures
OPERATOR’S MANUAL Section 3 3D. Standard Operating Procedures NOTE: To assure a long trouble-free service life of the ATLAS/TITAN/MAGNUM 30-200 Ozone Generators, provide following operating conditions: • Make sure that the oxygen concentrator is maintained properly and is producing oxygen at greater than 90% purity and less than -60°C dew point. Check sieve conditions and replace it as often as recommended by manufacturer •... -
Page 14: Section 4 - Maintenance And Service
Maintenance OPERATOR’S MANUAL and Service 4A. Preventative Maintenance Generally the ATLAS/TITAN/MAGNUM 30-200 are maintenance-free although it is useful to check the Ozone Generator for proper operation: a. Verify on the LCD display panel that parameters indicated are consistent with your On a monthly basis: 1. -
Page 15: Troubleshooting
WHILE HAVING POWER OFF. RUN OXYGEN THROUGH THE OZONE CELL FOR SEVERAL DAYS TO DRY THE LIQUID AND/OR OTHER CONTAMINANTS OUT AND THEN TRY TO RESTART THE OZONE GENERATOR. IF THE PROBLEM PERSISTS PLEASE CONTACT ABSOLUTE OZONE TECHNICAL SUPPORT. For more information about this product visit our website at, http://www.absoluteozone.com... - Page 16 ABSOLUTE OZONE® OPERATOR’S MANUAL Section 4 Symptom (Warning Message): SYSTEM COMMUNICATION PROBLEM IF AFTER SEVERAL ATTEMPTS DOES NOT RESTART, PLEASE CONTACT US TECHNICAL SUPPORT Symptom (Warning Message): OZONE SENSOR PROBLEM AFTER SEVERAL ATTEMPTS DOES NOT RESTART, PLEASE CONTACT US TECHNICAL SUPPORT...
- Page 17 ABSOLUTE OZONE® OPERATOR’S MANUAL Section 4 Symptom (Warning Message): OZONE CELL PRESSURE TOO HIGH PLEASE ADJUST OXYGEN PRESSURE REGULATOR TO SPECIFIED PRESSURE AND THAT WILL RECTIFY THIS PROBLEM AND WARNING MESSAGE. Symptom (Warning Message): OZONE CELL TEMPERATURE TOO HIGH MAKE SURE THAT THE AMBIENT...
-
Page 18: Ozone Use And Technology Overview
ABSOLUTE OZONE® Safety Procedures OPERATOR’S MANUAL and Ozone Overview 5A. Ozone Use and Technology Overview 5A.i Relative Strength of Ozone The following compares the strengths of several common oxidizing reagents (EOP vs. Cl 2 ) • Elemental Fluorine (2.25) • Hydroxyl Radical (2.05) •... -
Page 19: Ii Ozone Uses
ABSOLUTE OZONE® OPERATOR’S MANUAL Section 5 5B.ii Ozone Uses • Chemical Oxidation • Organic Oxidation 5C. Hazards 5C.i Health Hazards – Detection Levels Gaseous ozone can be detected in air by its distinctive odor at concentrations of about 0.02 ppm. Although each nose varies, olfactory fatigue occurs quickly. -
Page 20: Ii Health Hazards- Effects On Humans
ABSOLUTE OZONE® OPERATOR’S MANUAL Section 5 5C.ii Health Hazards – Effects on Humans Gaseous ozone acts as a primary irritant, affecting mainly the eyes, upper respiratory tract and the lungs. Inhalation produces various degrees of respiratory effects from irritation to pulmonary edema (fluid in lungs). -
Page 21: Iii Electrical Hazards
Turn OFF all power switches and disconnect power cord from power source receptacle before performing service work. Failure to do so could result in serious injury or death. Operate the ATLAS/TITAN/MAGNUM 30-200 with safe access to electrical power. Connect the ATLAS/TITAN/MAGNUM 30-200 to a G.F.C.I. type receptacle or as required by local electrical code &... -
Page 22: Iii Emergency Procedure
ABSOLUTE OZONE® OPERATOR’S MANUAL Section 5 5D.iii Emergency Procedure Due to the short life of ozone, evacuation and ventilation is all that is generally required in the event of a high ambient ozone alarm. All ozone generating and delivery equipment should be shut down (manually or automatically by alarm) and a high-speed fan activated to dilute and disperse ozone in to the atmosphere. -
Page 23: System Operations And Maintenance
A certificate of completion of such training shall be provided. Repair of Ozone Generator could be performed only at Absolute Ozone facilities unless authorized and instructed otherwise by Absolute Ozone personal. -
Page 24: Ii Monitoring Equipment
OPERATOR’S MANUAL Section 5 5F.ii Monitoring Equipment Proper Ozone Monitoring equipment should be use to protect personnel from dangerous levels of ozone exposure. Absolute Ozone could provide suitable ozone monitoring at customer request. 5G. First Aid Procedures 5G.i General Information 1. -
Page 25: Iv Precautions
ABSOLUTE OZONE® OPERATOR’S MANUAL Section 5 5G.iv Precautions Workers with a previous cardiopulmonary (heart and lung) condition must consult their physician prior to working in an area in which they may be exposed to ozone. Significant alterations in cardiopulmonary functions have been documented when such workers have been exposed to low concentrations of ozone. -
Page 26: Absolute Ozone Limited Warranty
The limited warranty set forth below applies to products manufactured by Absolute Ozone 10712 - 181 Street, Edmonton, AB., T5S 1K8, Canada, and sold by Absolute Ozone and its authorized dealers. This limited warranty is given only to the first retail purchaser of such products and is not transferable to any subsequent owners or purchasers of such products. - Page 27 4. The date of failure 5. A description of the failure 6. All shipping documents should clearly state “Warranty Repair” and indicated RMA number. Absolute Ozone is not responsible for double taxes or duties resulted from improper shipping documentation. Absolute Ozone 10712 –...
-
Page 28: Ozone Generator Dimensions
ABSOLUTE OZONE® OPERATOR’S MANUAL Dimensions ATLAS® MAGNUM® Weight: Weight: 26lbs. - 32lbs. 53lbs. (11.79 kg) - (14.52kg) (24.04kg) 26.5-inch 15-inch (67.31cm) (38.1cm) 7-inch 7-inch (17.78cm) (17.78cm) 14-inch 14-inch (35.56cm) (35.56cm) TITAN® Weight: 26lbs. - 32lbs. (11.79 kg) - (14.52kg) 17-inch 14-inch (48.26cm) - Page 29 ABSOLUTE OZONE® OPERATOR’S MANUAL Dimensions 12-inch ø 1/4 x Places (30.48cm) 12-inch (30.48cm) 16 5/16-inch 27 7/8-inch (41.43cm) (70.80cm) ATLAS® MAGNUM® For more information about this product visit our website at, http://www.absoluteozone.com -28-...
- Page 30 ABSOLUTE OZONE® Dimensions Remote Control O2 (OUT) O2 (IN) 4 in 2 7/8 in (SS) 316 1/4” Tube Compression Fittings 1 5/8 in 2 1/4 in Off O2 (OUT) O2 (IN) 4 in 2 7/8 in (SS) 316 3/8” Tube...
