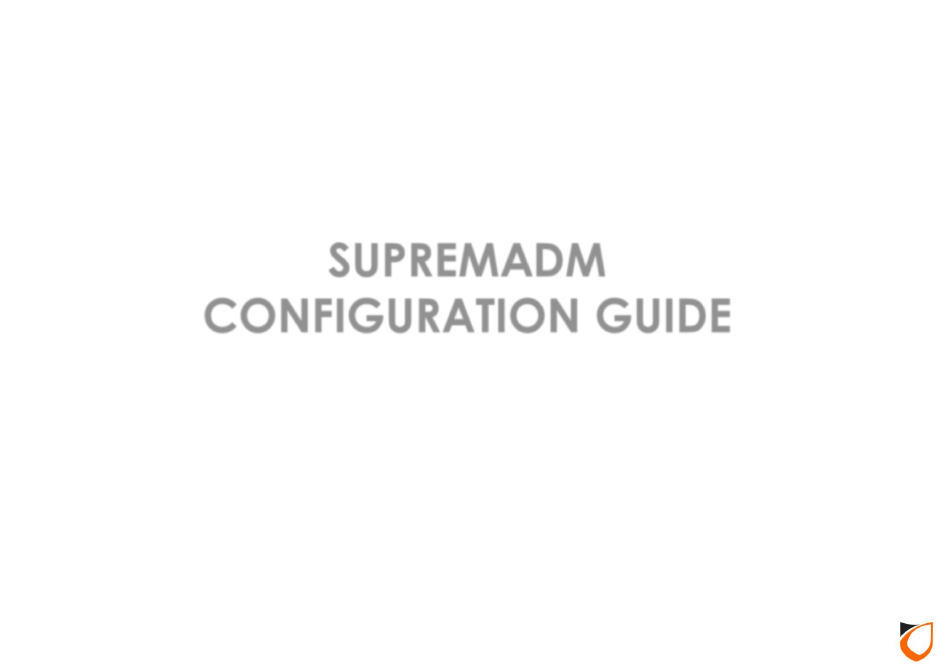

SUPREMADM
CONFIGURATION GUIDE
Version: 1.02
Last Updated: 28-06-2016
ENTRYPASS TECHNICAL – CONFIGURATION GUIDE
Copyright © Entrypass Corporation
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the EP.S3150 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ENTRYPASS EP.S3150

Summary of Contents for ENTRYPASS EP.S3150

  • Page 1 SUPREMADM CONFIGURATION GUIDE Version: 1.02 Last Updated: 28-06-2016 ENTRYPASS TECHNICAL – CONFIGURATION GUIDE Copyright © Entrypass Corporation...
  • Page 2 See http://www.entrypass.net/ for updates, revisions, and download the latest installation manual There are currently 2 version of EntryPass Platform1 Access Control System available for different card number system 1) EntryPass Platform1 Access Control System (6 Digit Card Number System) cater for...

  • Page 3: Technical Support

    Should you need additional information, please call our Technical Support Help desk, Monday to Friday 9:00 AM to 6:00 PM (GMT +8:00) Method Details Phone + 60 (3) - 8068 1929 Fax + 60 (3) - 8068 1922 Internet www.entrypass.net Email support@entrypass.net ENTRYPASS TECHNICAL – CONFIGURATION GUIDE Copyright © Entrypass Corporation...
  • Page 4 Entrypass HCB based control panels that works with Suprema BioLite Net & BioEntry Plus Active Network Suprema Biometrics Serial Control Panel Control Panel Devices (SBD) EP.N5150 EP.S3150 BioEntry Plus BioLite Net EP.S3200 EP.N5200 EP.S3400 EP.N5400 ENTRYPASS TECHNICAL – CONFIGURATION GUIDE...

  • Page 5: Important Notice

    Important Notice Before any SBD devices can be integrated to Entrypass HCB based control panels, certain parameters must be configured. Please follow the workflow below for detailed guidelines. ENTRYPASS TECHNICAL – CONFIGURATION GUIDE Copyright © Entrypass Corporation...
  • Page 6 Standard Entrypass – Suprema Biometrics Integration Workflow Step - 02 Step - 03 Step - 01 Connect SBD to PC which have Suprema Configure IP Address for Connect to SBD and DM installed using a Suprema Biometrics retrieve the Device ID...

  • Page 7: Tools Required

    To configure the Suprema BioLite Net device or BioEntry Plus device, you have to prepare the following items: (i) Suprema DM program (Located in the EntryPass Platform1 (ii) Ethernet Connector (come with any Suprema device) (iii) Cross cable (Cat 5e)
  • Page 8 BioLite Net User Guide, page 46 (except Server setting select ‘No Use’). To configure an IP address for Suprema BioEntry Plus device, please refer to BioEntry Plus Installation, page 26. ENTRYPASS TECHNICAL – CONFIGURATION GUIDE Copyright © Entrypass Corporation...
  • Page 9 Connecting SBD To PC/Notebook Cross cable PC / Notebook with Suprema DM BioLite Net Notes for BioEntry Plus user: Dipswitch 2 must be turn “On” to allow modification on the parameter ENTRYPASS TECHNICAL – CONFIGURATION GUIDE Copyright © Entrypass Corporation...
  • Page 10 Launch Suprema DM Select TCP/IP ENTRYPASS TECHNICAL – CONFIGURATION GUIDE Copyright © Entrypass Corporation...
  • Page 11 1. Enter SBD IP Address 2. Click ‘Connect’ button Notes: Please refer to ‘BioEntry Plus Installation Guide’ on how’s to get the default IP address ENTRYPASS TECHNICAL – CONFIGURATION GUIDE Copyright © Entrypass Corporation...
  • Page 12 1. Click ‘Get’ button 2. Copy down the Device ID ENTRYPASS TECHNICAL – CONFIGURATION GUIDE Copyright © Entrypass Corporation...
  • Page 13 1. Select SBD model 2. Click ‘Load ‘button ENTRYPASS TECHNICAL – CONFIGURATION GUIDE Copyright © Entrypass Corporation...
  • Page 14 Successfully Loaded The Parameters To SBD ENTRYPASS TECHNICAL – CONFIGURATION GUIDE Copyright © Entrypass Corporation...
  • Page 15 Notes: for BioEntry Plus user Dipswitch 2 must be turn “OFF” after power source is disconnected to prevent losing parameters after power cycle Switch off all power source to BioLite Net ENTRYPASS TECHNICAL – CONFIGURATION GUIDE Copyright © Entrypass Corporation...
  • Page 16 Connecting SBD To Entrypass HCB Control Panel Please refer HCB Wiring Guide BioLite Net Please refer HCB Wiring Guide BioEntry Plus ENTRYPASS TECHNICAL – CONFIGURATION GUIDE Copyright © Entrypass Corporation...
  • Page 17 Entrypass Platform1 Access Control System Finger Only Finger + Card Card + Pin Card Only ENTRYPASS TECHNICAL – CONFIGURATION GUIDE Copyright © Entrypass Corporation...
  • Page 18 Entrypass Platform1 Access Control System – Suprema SBD Integration Workflow Suprema BioMini enrollment station Pre-Requisites SBD are connected to HCB based control panel Step - 02 Step - 03 Step - 01 Connect Suprema Add control panel to Select “Reader Type”...
  • Page 19 Entrypass Platform1 Access Control System – Add SBD Device 1. Select ‘Reader’ tab 2. Select ‘Suprema’ from ‘Reader Type’ dropdown list ENTRYPASS TECHNICAL – CONFIGURATION GUIDE Copyright © Entrypass Corporation...
  • Page 20 Entrypass Platform1 Access Control System – Add SBD Device 1. Select ‘Fingerprint’ tab 2. Tick the checkbox and then enter the SBD Device ID you obtained previously 3. Click ‘Save and Close’ button ENTRYPASS TECHNICAL – CONFIGURATION GUIDE Copyright © Entrypass Corporation...
  • Page 21 Entrypass Platform1 Access Control System – Enroll Administrator Fingerprint 1. In ‘Preferences’, select ‘Suprema’ tab 2. Select ‘Reader Type’ option 3. Click ‘Enroll’ button ENTRYPASS TECHNICAL – CONFIGURATION GUIDE Copyright © Entrypass Corporation...
  • Page 22 Entrypass Platform1 Access Control System – Enroll Administrator Fingerprint 1. Place the finger on top of BioMini 2. Once captured, click ‘Accept’ button ENTRYPASS TECHNICAL – CONFIGURATION GUIDE Copyright © Entrypass Corporation...
  • Page 23 1. If successful, ‘Template 01’will be enabled 2. Click ‘Accept’ button ENTRYPASS TECHNICAL – CONFIGURATION GUIDE Copyright © Entrypass Corporation...
  • Page 24 To enroll user to ‘Finger Only’ mode Go to ‘Control Panel’ > ‘Company’ > ‘View Staff’ ENTRYPASS TECHNICAL – CONFIGURATION GUIDE Copyright © Entrypass Corporation...
  • Page 25 Entrypass Platform1 Access Control System – Enroll Staff Fingerprint Click ‘Add’ button ENTRYPASS TECHNICAL – CONFIGURATION GUIDE Copyright © Entrypass Corporation...
  • Page 26 Entrypass Platform1 Access Control System – Enroll Staff Fingerprint Enter staff no. and name ENTRYPASS TECHNICAL – CONFIGURATION GUIDE Copyright © Entrypass Corporation...
  • Page 27 Entrypass Platform1 Access Control System – Enroll Staff Fingerprint Click ‘Add’ button ENTRYPASS TECHNICAL – CONFIGURATION GUIDE Copyright © Entrypass Corporation...
  • Page 28 Entrypass Platform1 Access Control System – Enroll Staff Fingerprint 1. If you know the card no. enter it here 2. Else, scan the card no. using the ‘Mifare Writer’ 3. Click ‘Add and Close’ button ENTRYPASS TECHNICAL – CONFIGURATION GUIDE...
  • Page 29 Finger Only Mode 1. Select ‘Fingerprint’ tab 2. Select ‘Finger Only’ mode 3. Click ‘Enroll’ button ENTRYPASS TECHNICAL – CONFIGURATION GUIDE Copyright © Entrypass Corporation...
  • Page 30 Finger Only Mode 1. Place the finger on top of BioMini 2. Once captured, click ‘Accept’ button ENTRYPASS TECHNICAL – CONFIGURATION GUIDE Copyright © Entrypass Corporation...
  • Page 31 Finger Only Mode 1. If successful, ‘Template 01’will be enabled 2. Click ‘Accept’ button ENTRYPASS TECHNICAL – CONFIGURATION GUIDE Copyright © Entrypass Corporation...
  • Page 32 To enroll user to ‘Card + Finger’ mode Repeat page 25 to page 31 ENTRYPASS TECHNICAL – CONFIGURATION GUIDE Copyright © Entrypass Corporation...
  • Page 33 Card + Finger Mode 1. Select ‘Card + Finger’ mode 2. Click ‘Enroll’ button ENTRYPASS TECHNICAL – CONFIGURATION GUIDE Copyright © Entrypass Corporation...
  • Page 34 Card + Finger Mode 1. Place the finger on top of BioMini 2. Once captured, click ‘Accept’ button ENTRYPASS TECHNICAL – CONFIGURATION GUIDE Copyright © Entrypass Corporation...
  • Page 35 Card + Finger Mode 1. If successful, ‘Template 01’will be enabled 2. Click ‘Accept’ button ENTRYPASS TECHNICAL – CONFIGURATION GUIDE Copyright © Entrypass Corporation...
  • Page 36 ‘Mifare Writer’ 2. Click ‘Write’ to start writing data to card Notes: This screen only popup if you are using ‘Reader Type’ (Preferences  Suprema) as ‘Template On Card’ mode ENTRYPASS TECHNICAL – CONFIGURATION GUIDE Copyright © Entrypass Corporation...
  • Page 37 Successfully Enrolled The User Fingerprint On Card ENTRYPASS TECHNICAL – CONFIGURATION GUIDE Copyright © Entrypass Corporation...
  • Page 38 To enroll user to ‘Card + Pin’ mode Repeat page 26 to page 27 ENTRYPASS TECHNICAL – CONFIGURATION GUIDE Copyright © Entrypass Corporation...
  • Page 39 Card + Pin Mode 1. If you know the card no. enter it here 2. Else, scan the card no. using the ‘Mifare Writer’ ENTRYPASS TECHNICAL – CONFIGURATION GUIDE Copyright © Entrypass Corporation...
  • Page 40 Card + Pin Mode 1. Enter desire pin no. 2. Click ‘Accept’ button ENTRYPASS TECHNICAL – CONFIGURATION GUIDE Copyright © Entrypass Corporation...
  • Page 41 Card + Pin Mode 1. Select ‘Card + Pin’ mode 2. Click ‘Accept’ button ENTRYPASS TECHNICAL – CONFIGURATION GUIDE Copyright © Entrypass Corporation...
  • Page 42 ‘Mifare Writer’ 2. Click ‘Write’ to start writing data to card Notes: This screen only popup if you are using ‘Reader Type’ (Preferences  Suprema) as ‘Template On Card’ mode ENTRYPASS TECHNICAL – CONFIGURATION GUIDE Copyright © Entrypass Corporation...
  • Page 43 Successfully Enrolled The User Pin On Card ENTRYPASS TECHNICAL – CONFIGURATION GUIDE Copyright © Entrypass Corporation...
  • Page 44 To enroll user to “Card Only” mode Repeat page 25 to page 31 ENTRYPASS TECHNICAL – CONFIGURATION GUIDE Copyright © Entrypass Corporation...
  • Page 45 Card Only Mode Select ‘Card Only’ mode 2. Click ‘Accept’ button ENTRYPASS TECHNICAL – CONFIGURATION GUIDE Copyright © Entrypass Corporation...
  • Page 46 ‘Mifare Writer’ 2. Click ‘Write’ to start writing data to card Notes: This screen only popup if you are using ‘Reader Type’ (Preferences  Suprema) as ‘Template On Card’ mode ENTRYPASS TECHNICAL – CONFIGURATION GUIDE Copyright © Entrypass Corporation...
  • Page 47 Successfully Enrolled The User Pin On Card ENTRYPASS TECHNICAL – CONFIGURATION GUIDE Copyright © Entrypass Corporation...
  • Page 48 THANK YOU ENTRYPASS TECHNICAL – CONFIGURATION GUIDE Copyright © Entrypass Corporation...

This manual is also suitable for:

Ep.n5150Ep.s3200Ep.n5200Ep.s3400Ep.n5400
