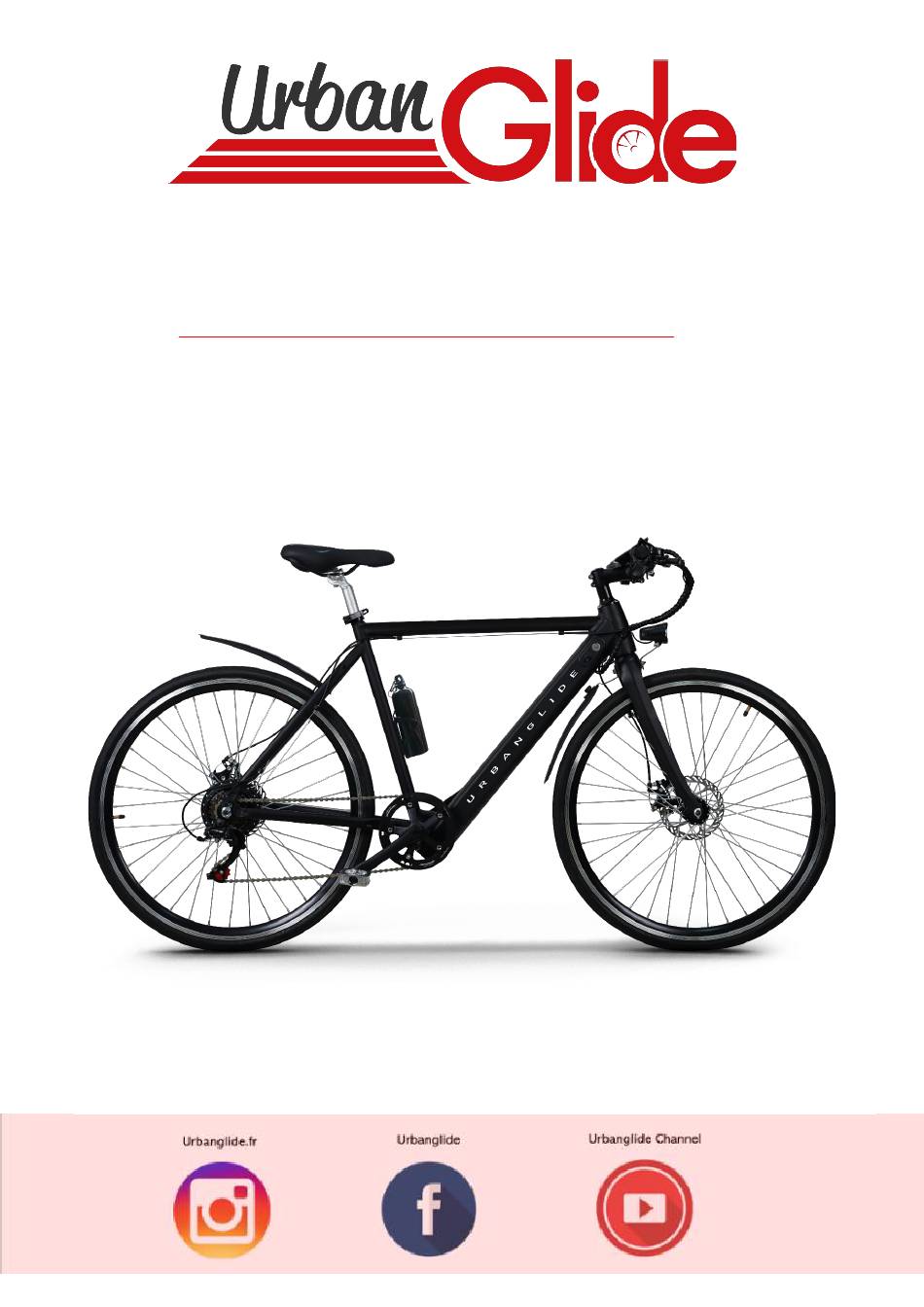

- Page 1 USER MANUAL Electric bike URBANGLIDE is a brand imported by the company PACT GROUP, Located at 33 rue du Ballon – 93160 Noisy Le Grand – France...
- Page 3 SUMMARY Safety and Precaution General presentation Getting Started Ignition and use Charger Screen Troubleshooting P.11...
- Page 4 Safety and Precaution Please read the manual carefully before using the product, please be aware of the risks and safety tips in the manual. The use of an electrical product can be dangerous if the user is not careful. Misuse and failure to observe the safety instructions does not jeopardize the company in the event of an accident.
- Page 5 Red LED = charging / Green LED = charged Please do not use other brand chargers, they may damage the battery of your product. It is important to charge your battery at least once every 3 months, even if you do not use the product, to ensure a normal life cycle. Avoid shocks and contact with water, as these factors are not covered by the warranty and may damage the battery.
- Page 6 Presentation of the general Rear derailleur Pedals Rear wheel Water bottle Rear motor Lock Tooth wheel Screen Rear disc brake Front light Rear mudguard Front mudguard Seat lock Front disc brake Seat Front wheel BATTERIE Pour faire fonctionner votre vélo, il faut d’abord allumer votre batterie, pour cela, insérez la clé...
- Page 7 Using the screen The display on your handlebars serves as your instrument panel. It shows : Speed in Km/h Km/h Battery level Speed level Distance parcourue 00001 km en Km The battery level - The speed you are travelling at - The distance you have travelled - The level of electric assistance In order for your bike to assist you electrically, the display must be on.
- Page 8 • FRONT LIGHT To turn on the front light of your bike, press and hold the 'Up' button on the remote control. Once switched on, an icon will appear at the top left of your screen. • TURN OFF YOUR SCREEN To turn off your screen, press the 'On/Off' button on your remote control for 5 seconds.
- Page 9 1. Shifting gears Your gear shift consists of a derailleur and 7 sprockets (7 speeds). Each sprocket consists of 11 to 32 teeth. (From the largest to the smallest). To change gears, use the trigger located on the right handle of your bike. 2.
- Page 10 TROUBLESHOOTING Problem Possible cause Solution The battery is not Charge the battery, check if the red charged. light is on. It does not work Connections or cables Check that the battery is firmly seated are disconnected. in the product. The battery needs to be Charge the battery, check if the red charged.
- Page 11 Support@urbanglide.com You will also find many tutorial videos concerning the maintenance and maintenance of your product on our YouTube channel: UrbanGlide Channel Finally, do not hesitate to follow us on our social networks Instagram and Facebook to follow our news.
- Page 12 DECLARATION OF CONFORMITY We undersigned PACT GROUP hereby declare that the product. Model: MX25/MX35/C4/CD15/F2/M4 Type: Electrically assisted bicycle Function: Electrically assisted, pedal-assisted bicycle equipped with a 250W motor whose power supply is gradually reduced and finally interrupted when the vehicle reaches a speed of 25 Km/h, or sooner if the cyclist stops pedalling.
